SUPPLEMENTARY PROTECTOR,3P,20A,CURVE A Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 20 Amps, 480 VAC, Trip Characteristic Curve A, 54mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

5SY4320-5

$137.94 / EA

manufacturer discounts
learn about discounts

  • $123.67 for $1,500.00+
  • $118.91 for $2,500.00+
  • $114.16 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SUPPLEMENTARY PROTECTOR,3P,20A,CURVE A Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 20 Amps, 480 VAC, Trip Characteristic Curve A, 54mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2

SUPPLEMENTARY PROTECTOR,3P,20A,CURVE A Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 20 Amps, 480 VAC, Trip Characteristic Curve A, 54mm Width,70mm Depth, UL File E116386 in Vol. 1 Sec. 2

150

UPC
754554876184
UNSPSC
39121601
Country of Origin
DE
Material:
N/A
Size:
N/A
Type:
Miniature Circuit Breaker
Voltage Rating:
480 V
Adapter Rating:
N/A
Class:
A
Connection:
Identical wire screw connections on line and load side.
Element:
N/A
Frequency Rating:
50 Hz
Interrupt Rating:
5kA
Material:
N/A
Mounting:
On standard mounting rail (DIN 35mm)
Response Time:
N/A
Short Circuit Rating:
5kA
Size:
N/A
Standard:
UL 1077, CSA 22.2 NO. 235, CE, EN 60 898, IEC/EN 60 947-2
Sub Brand:
SENTRON
Type:
Miniature Circuit Breaker
Type Of Indicators:
N/A
Voltage Rating:
480 V

Recently Viewed

  • placeholder image

    5SY4320-5

    SIEMENS INDUSTRY, INC.
    SUPPLEMENTARY PROTECTOR,3P,20A,CURVE A Supplementary Protector, UL1077 Rated, IEC Mini Circuit Breaker, 3 Pole, 20 Amps, 480 VAC, Trip Characteristic...
    See more details
  • placeholder image

    HC161410JIC4

    MILBANK MANUFACTURING CO.

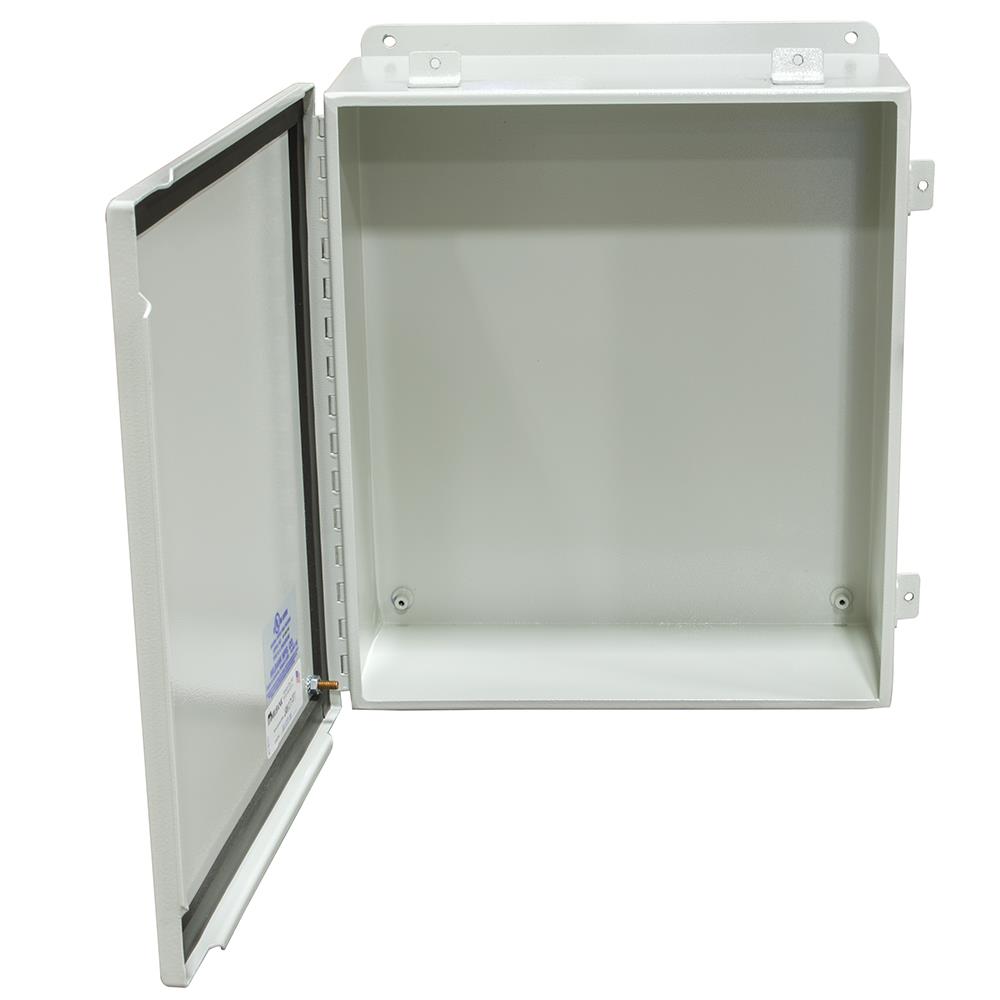

    14x10x16 Hinge Cover Type 4 UL Listed Steel No Knockouts ANSI 61 Gray Continuous Hinge Clamps and Screws Gasket in Door Mounting Feet Back Panel Weld...
