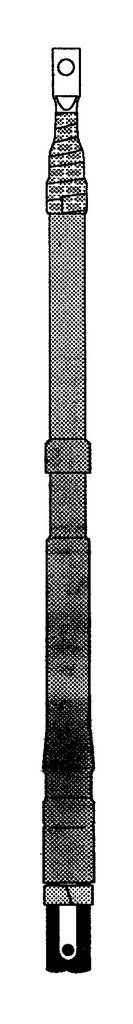

3M™ Cold Shrink QT II 6020K Series Termination Kit includes 3 non skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 15 to 25/28 kV.
3M™ Cold Shrink QT II 6020K Series Termination Kit includes 3 non skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 15 to 25/28 kV.
150
- One-piece cold shrink termination.
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for weather protected areas (indoor)
- Silicone rubber insulation is track-resistance and hydrophobic
- One-piece cold shrink termination.
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for weather protected areas (indoor)
- Silicone rubber insulation is track-resistance and hydrophobic
- UPC
- 054007499350
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-II
- Voltage Rating:
- 892.857/15,000 V
- BIL:
- 125 kV
- Cable Insulation Outside Diameter Range:
- 0.84-1.33 in
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 1 AWG; 1/0 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil
- Insulation Level:
- 100%; 133%
- Lug/Stem Connector Included in Kit:
- No
- Maximum Installed Length:
- 21.80 in
- Number Of Terminals:
- 1
- Standard:
- IEEE
- Type:
- QT-II
- Voltage Rating:
- 892.857/15,000 V
