$2,196.98 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

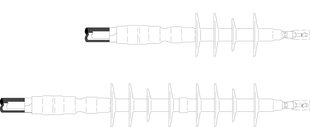

3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7620 S, 7680 S & 7690 S Series Termination Kit includes three 1 piece, 3 phase, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 35kV.
150
- UPC
- 051128592106
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- Outdoor
- Voltage Rating:
- 892.857/5,000/8,000/15,000/35,000 V
- Conductor Size:
- "1000 kcmil, 1250 kcmil, 1500 kcmil, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil, 900 kcmil"
- Standard:
- IEEE
- Type:
- Outdoor
- Voltage Rating:
- 892.857/5,000/8,000/15,000/35,000 V
5646-1/0
$383.37 /ea
3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
| Attributed Data | Included |
|---|---|
| Additional Kit Contents | (1) SC0010 Stem Connector Yes |
| BIL | 200 kV Yes |
| Cable Insulation Outside Diameter Range | 0.84-1.38 in Yes |
| Cable Type | Jacketed Concentric Neutral (JCN) Yes |
| Conductor Size | 1/0 AWG Yes |
| Insulation Level | 100%; 133% Yes |
| Lug/Stem Connector Included in Kit | Yes Yes |
| Maximum Installed Length | 17.50 in Yes |
| Number of Skirts | 8 Yes |
| Standard | IEEE Yes |
| Type | QT-II Yes |
5647-4/0
$474.50 /ea
3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages up to 15kV.
| Attributed Data | Included |
|---|---|
| Additional Kit Contents | (1) SC0040 Stem Connector Yes |
| BIL | 200 kV Yes |
| Cable Insulation Outside Diameter Range | 1.08-1.80 in Yes |
| Cable Type | Jacketed Concentric Neutral (JCN) Yes |
| Conductor Size | 250 kcmil; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 450 kcmil; 500 kcmil; 600 kcmil; 700 kcmil Yes |
| Insulation Level | 100%; 133% Yes |
| Lug/Stem Connector Included in Kit | Yes Yes |
| Maximum Installed Length | 19.50 in Yes |
| Number of Skirts | 8 Yes |
| Standard | IEEE Yes |
| Type | QT-II Yes |
7685-S-8-3-RJS
$2,512.72 /ea
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
| Attributed Data | Included |
|---|---|
| BIL | 200 kV Yes |
| Cable Insulation Outside Diameter Range | 1.18-1.52 in Yes |
| Cable Type | Tape Shield; UniShield(R); Wire Shield Yes |
| Conductor Size | 1000 kcmil; 250 kcmil; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil Yes |
| Lug/Stem Connector Included in Kit | No Yes |
| Maximum Installed Length | 20.50 in Yes |
| Number Of Terminals | 3 Yes |
| Number of Skirts | 8 Yes |
| Type | QT-III Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
5646-1/0
3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber...
$383.37 / EA
|
5647-4/0
3M™ Cold Shrink QT II 5640 & 5650 Series Termination Kit includes a 4 skirt, 1 piece termination. It ensures a pliable, tight seal for jacketed concentric neutral power cables. The conjunction of high dielectric constant material and silicone rubber...
$474.50 / EA
|
7685-S-8-3-RJS
3M™ Cold Shrink QT III 7600 S 3RJS Series Termination Kit includes a skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sea...
$2,512.72 / EA
|
|
| Attributed Data | |||
| Additional Kit Contents | (1) SC0010 Stem Connector (1) SC0010 Stem Connector | (1) SC0040 Stem Connector (1) SC0040 Stem Connector | |
| BIL | 200 kV 200 kV | ||
| Cable Insulation Outside Diameter Range | 0.84-1.38 in 0.84-1.38 in | 1.08-1.80 in 1.08-1.80 in | 1.18-1.52 in 1.18-1.52 in |
| Cable Type | Jacketed Concentric Neutral (JCN) Jacketed Concentric Neutral (JCN) | Tape Shield; UniShield(R); Wire Shield Tape Shield; UniShield(R); Wire Shield | |
| Conductor Size | 1/0 AWG 1/0 AWG | 250 kcmil; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 450 kcmil; 500 kcmil; 600 kcmil; 700 kcmil 250 kcmil; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 450 kcmil; 500 kcmil; 600 kcmil; 700 kcmil | 1000 kcmil; 250 kcmil; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil 1000 kcmil; 250 kcmil; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil |
| Insulation Level | 100%; 133% 100%; 133% | ||
| Lug/Stem Connector Included in Kit | No No | Yes Yes | |
| Maximum Installed Length | 17.50 in 17.50 in | 19.50 in 19.50 in | 20.50 in 20.50 in |
| Number Of Terminals | 1 1 | 3 3 | |
| Number of Skirts | 8 8 | ||
| Standard | IEEE IEEE | ||
| Type | QT-II QT-II | QT-III QT-III | |
| Voltage Rating | 892.857/5,000/8,000/15,000/35,000 V 892.857/5,000/8,000/15,000/35,000 V | 892.857/15,000/35,000 V 892.857/15,000/35,000 V | |
