$2,605.83 / EA
Local stock: 0
Lead time:
over 7 working days

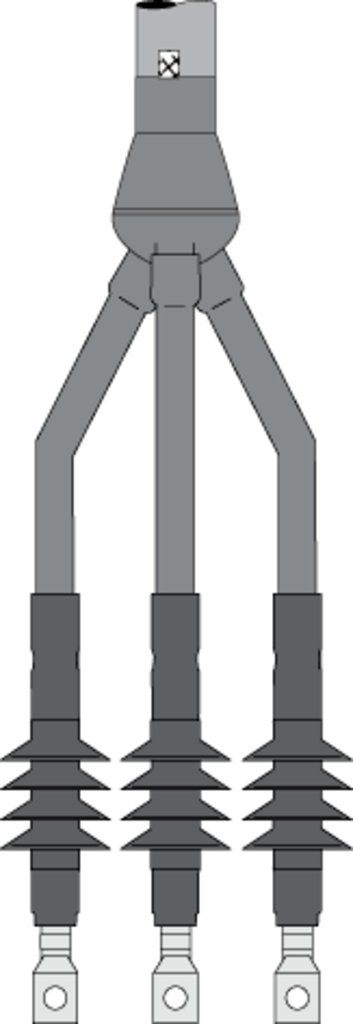

3M™ Cold Shrink QT III 7620 S & 7690 S Series Inverted Termination Kit includes 3 single conductor, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
3M™ Cold Shrink QT III 7620 S & 7690 S Series Inverted Termination Kit includes 3 single conductor, skirted terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.
150
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Integrated design allows for easier installation in limited spaces, while sealing compounds provide constant radial pressure
- Provides a void-free seal to tape shield, wire shield and UniShield® power cables
- High dielectric-constant material regulates the distribution of electric field stress
- Suitable for outdoor applications
- Integrated design allows for easier installation in limited spaces, while sealing compounds provide constant radial pressure
- UPC
- 054007047476
- UNSPSC
- 26121648
- Country of Origin
- USA
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000 V
- BIL:
- 200 kV
- Cable Insulation Outside Diameter Range:
- 1.18-1.52 in
- Cable Type:
- Tape Shield; UniShield(R); Wire Shield
- Conductor Size:
- 1000 kcmil; 300 kcmil; 350 kcmil; 400 kcmil; 500 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
- Maximum Installed Length:
- 16.00 in
- Number Of Terminals:
- 3
- Number of Skirts:
- 4
- Type:
- QT-III
- Voltage Rating:
- 892.857/5,000/8,000/15,000 V
