810DB
SKU: 810DB
MPN: 810DB
Key specs
View all- Material
- Copper
- Size
- 1.1417 x 0.38 x 0.8464 IN
- Type
- Solderless Lay In Lug
Description
Product overview

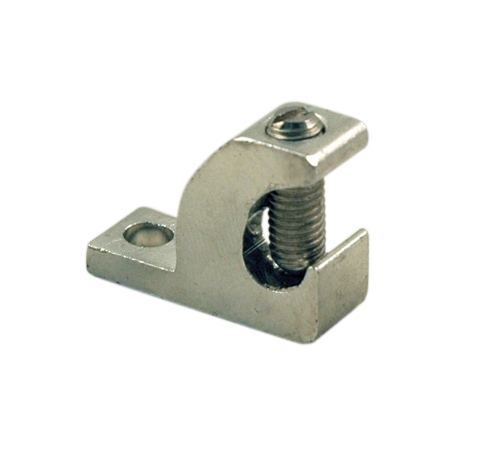

1/4" - 20 Solar Lay-In Type Solderless Lugs
1/4" - 20 Solar Lay-In Type Solderless Lugs
Manufacturer highlights
Topaz carries a complete line of solderless lugs that provide maximum conductivity in a compact and efficient design. Our Solar Lay In Type Solderless...
Topaz carries a complete line of solderless lugs that provide maximum conductivity in a compact and efficient design. Our Solar Lay In Type Solderless Lug is specifically designed to use with solar panels. Fabricated from pure electrolytic copper which provides superior conductivity and resistance to corrosion. Suitable for outdoor and direct burial applications. Installs quickly; ideal for retrofit or repair. All models UL listed and confidently backed by the Topaz lifetime guarantee.
- Specifically designed for solar panels
- Manufactured from high strength pure electrolytic copper for superior conductivity
- Open face design allows for fast lay-in of the conductor, eliminating the need for cutting or breaking
- Suitable for direct burial/outdoor use
- Excellent corrosion resistance
Additional manufacturer notes
- Feed description
- TPZ 810DB 4-14 LAY-IN LUG COPPER/TI
- Invoice description
- 4-14 LAY-IN LUG COPPER/TIN PL-100-PK
Specifications
- UPC
- 751338863477
- UNSPSC
- 39121405
- Country of Origin
- MUL
- Material
- Copper
- Size
- 1.1417 x 0.38 x 0.8464 IN
- Type
- Solderless Lay In Lug
- Bolt (IN)
- 1/4 IN
- Cable Range
- 14 to 4
- Cable Size
- 14 to 4 AWG
- Cable Type
- 14 to 4 AWG
- Finish
- Tin Plated
- Hole Diameter
- 0.19 IN
- Label Description
- SOLDERLESS LUGS
- Material
- Copper
- Number Of Holes
- 1
- Size
- 1.1417 x 0.38 x 0.8464 IN
- Size (trade) (IN)
- 1/4"-20 IN
- Standard
- UL 467, UL File Number E155861, US Federal Specification Number A-A-50552, NEMA/ANSI FB-1, Military Specification:W-F-406D, W-F-406E, W-F-408D, W-S-610D
- Stud Size
- 0.25 in
- Type
- Solderless Lay In Lug
- Wire Size
- 47
- Manufacturer keywords
- 4-14 COPPER LAY IN LUG-DB RATE
