Erico Products Inc BC200000EG Beam Clamps product image

Erico Products Inc BC200000EG Beam Clamps product image view 2

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Videos & documents

Documents

Product Data Spec Sheet

BC200000EG

SKU: BC200000EG

MPN: BC200000EG

Purchase options

$5.71 / EA

manufacturer discounts
learn about discounts

$5.12 for $1,300.00+
$4.84 for $2,000.00+
$4.64 for $3,000.00+

Available to order

Lead time: 1-2 working days

Must be purchased in multiples of 50

Lead time: 1-2 working days
Secure checkout with protected order handling.
Minimum order multiple: 50 units.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Key specs

View all

Material: Steel
Type: Beam Clamps

Description

Product overview

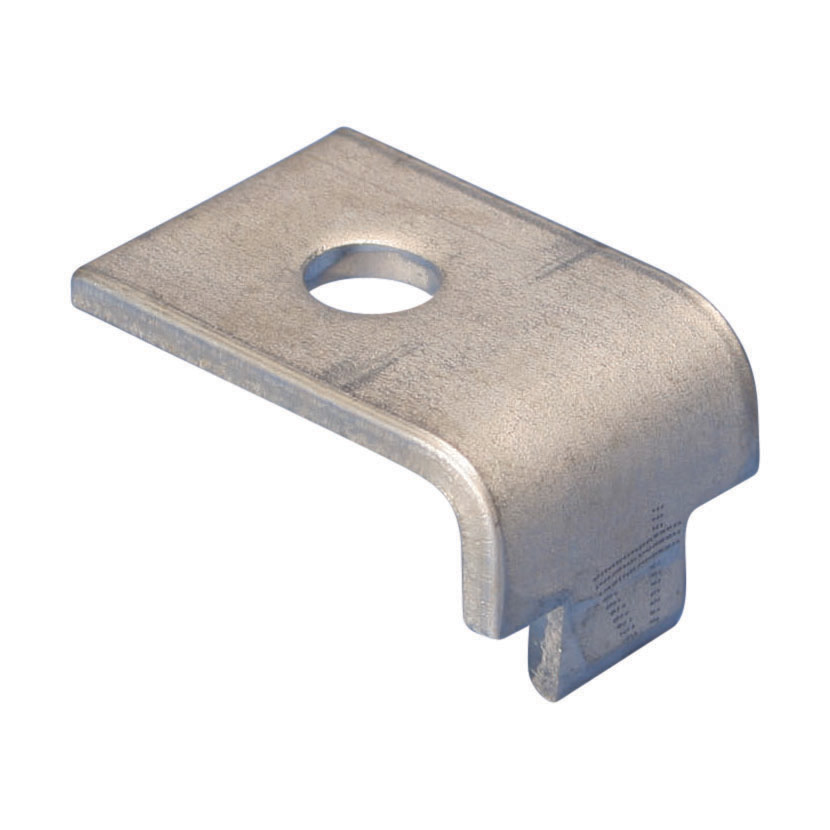

Strut Beam Clip, Steel, EG, 0.5" Flange, 0.563" Hole

Manufacturer highlights

Beam Clip for clamping the open side of strut to a beam
Suitable for all strut channels
Requires installation in pairs
Structural attachment to beams to support nVent CADDY Eristrut
FM Specification Tested

Additional manufacturer notes

Short description: CLAMP,STRUT TO FLANGE,
Short name: EFS
Feed description: NVENT EFS BC200000EG CLAMP,STRUT TO

Specifications

UPC: 782856340225

UNSPSC: 31162905

Country of Origin: US

Material: Steel

Type: Beam Clamps

Finish: Electrogalvanizing

Hole Size (Imperial) <Nom>: 9/16 in

Length (imperial) <Nom>: 2.730 in

Material: Steel

Standard: None

Static Load (lb): 460 lb

Sub Brand: CADDY

Type: Beam Clamps

Width (Imperial) <Nom>: 1.600 in

Manufacturer keywords: beam clamp, clamp, strut channel
