BE260
SKU: BE260
MPN: BE260
Key specs
View all- Number Of Poles
- 2
Description
Product overview

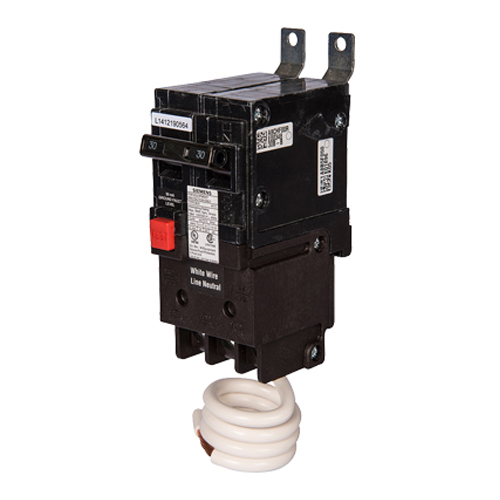

Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V GFCI Circuit Breakers - 2-Pole, GFCI - BLE, 10KAIC, 120/240VAC are Circuit ProtectionMolded Case Circuit Breakers. Sub Brand N/A Type BL Special Features N/A Application Electrical Distribution Standard UL 489 Voltage Rating 120/240V Amperage Rating 60A Load Rating N/A Frequency Rating N/A Phase N/A Frame N/A Trip Type N/ATrip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 2P
Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V GFCI Circuit Breakers - 2-Pole, GFCI - BLE, 10KAIC, 120/240VAC are Circuit ProtectionMolded Case Circuit Breakers. Sub Brand N/A Type BL Special Features N/A Application Electrical Distribution Standard UL 489 Voltage Rating 120/240V Amperage Rating 60A Load Rating N/A Frequency Rating N/A Phase N/A Frame N/A Trip Type N/ATrip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 2P
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A BE260 BRKR BLE GFCI 30mA 2P 240
- Invoice description
- BRKR BLE GFCI 30mA 2P 240V 60A 10KA
Specifications
- UPC
- 783643274150
- UNSPSC
- 39121601
- Country of Origin
- PH
- Number Of Poles
- 2
- Continuous current / rated value
- 60 A
- Design of the overload release
- THERMAL-MAGNETIC
- Design of the product
- BLE
- Number Of Poles
- 2
- Product feature
- 10kAINTERRUPT
- Standard
- UL/CSA
- Suitability for operation
- EQUIPMENTPROTECTION
- Supply voltage frequency / rated value / 50/60 Hz
- TRUE
- Tripping characteristic class
- 30mA
- Type of electrical connection
- BOLT-ON
- Voltage / between phase and Ground (GND) / rated value
- 120 V
- Voltage / between phase and phase / rated value
- 240 V
