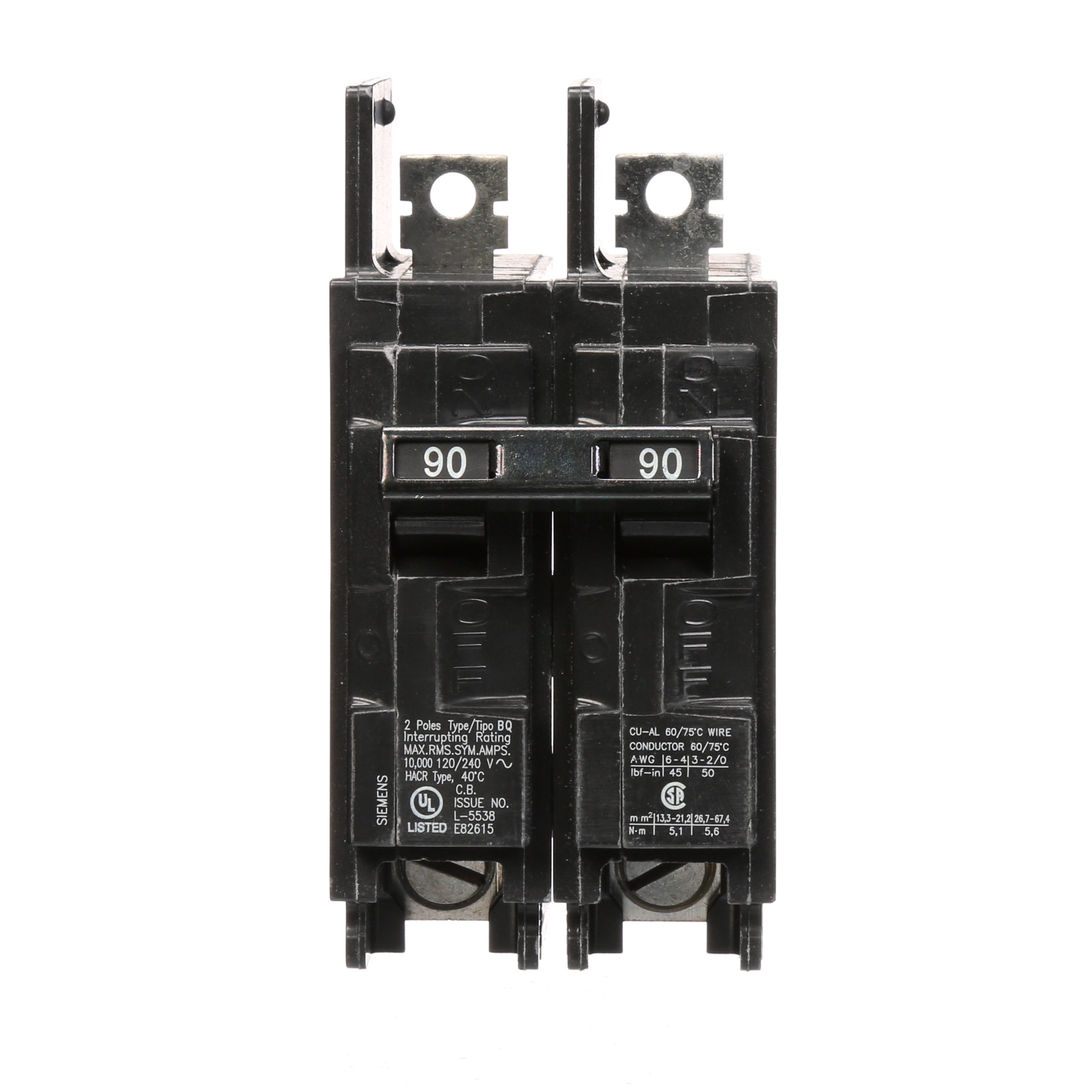

Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs - Type BQ, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. 2-Pole Common-Trip circuit breaker type BQ. Rated 120/240V (090A) (AIR 10 kA). Special features Load side lugs are included.
Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs - Type BQ, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. 2-Pole Common-Trip circuit breaker type BQ. Rated 120/240V (090A) (AIR 10 kA). Special features Load side lugs are included.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

BQ2B090

$445.80 / EA

manufacturer discounts
learn about discounts

  • $399.69 for $1,500.00+
  • $384.31 for $2,500.00+
  • $368.94 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs - Type BQ, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. 2-Pole Common-Trip circuit breaker type BQ. Rated 120/240V (090A) (AIR 10 kA). Special features Load side lugs are included.

Siemens Low Voltage Molded Case Circuit Breakers General Purpose MCCBs - Type BQ, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. 2-Pole Common-Trip circuit breaker type BQ. Rated 120/240V (090A) (AIR 10 kA). Special features Load side lugs are included.

150

UPC
783643102477
UNSPSC
39121601
Country of Origin
MX
Number Of Poles:
2
Continuous current / rated value:
90 A
Design of the overload release:
THERMAL-MAGNETIC
Design of the product:
BQ
Height [in]:
4 in
Number Of Poles:
2
Size of the circuit-breaker:
BQ(125A)
Standard:
ULLISTED/CSA/NOMCERTIFIED
Suitability for operation:
ELECTRICALDISTRIBUTION
Supply voltage frequency / rated value / 50/60 Hz:
TRUE
Voltage / between phase and Ground (GND) / rated value:
120 V
Voltage / between phase and phase / rated value:
240 V
Width [in]:
2 in
