BRY25W34
SKU: BRY25W34
MPN: BRY25W34
Key specs
View all- Amperage Rating
- 15 A
- Color
- Yellow
- Number Of Poles
- 2
- Size
- 1.85 in x 1.85 in x 4.62 in
- Type
- Connector Body
- Voltage Rating
- 277 VAC
Description
Product overview

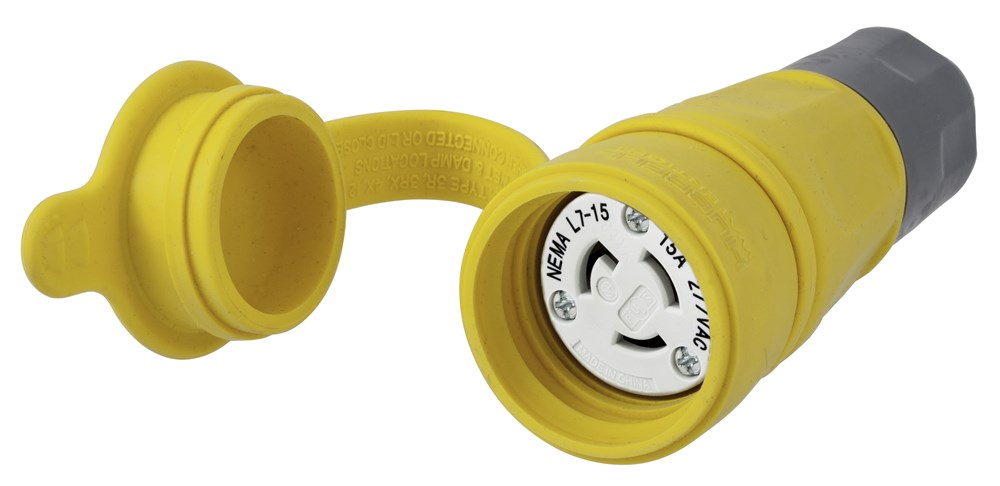

Watertight Devices, Locking Devices, Elastomeric, Female Connector Body, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15R, Screw Terminal, Yellow, Water/Dust-Tight Housing
Watertight Devices, Locking Devices, Elastomeric, Female Connector Body, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15R, Screw Terminal, Yellow, Water/Dust-Tight Housing
Manufacturer highlights
Additional manufacturer notes
- Short name
- BRYANT
- Feed description
- BRYANT BRY25W34 WATERTIGHT CONN, NE
- Invoice description
- WATERTIGHT CONN, NEMA L7-15R, 15A/277V
Specifications
- UPC
- 781786378315
- UNSPSC
- 39121421
- Country of Origin
- US
- Amperage Rating
- 15 A
- Color
- Yellow
- Number Of Poles
- 2
- Size
- 1.85 in x 1.85 in x 4.62 in
- Type
- Connector Body
- Voltage Rating
- 277 VAC
- Amperage Rating
- 15 A
- Color
- Yellow
- Cord Diameter
- 0.300-0.625 in
- Description - Long
- Watertight Devices, Locking Devices, Elastomeric, Female Connector Body, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15R, Screw Terminal, Yellow, Water/Dust-Tight Housing
- Description - Short
- Locking Devices, Elastomeric, Female Connector Body, 15A277V AC, 2-Pole 3-Wire Grounding, L7-15R, Screw Terminal,Yellow, Water/Dust-Tight Housing
- FEATURES - Bullets
- Smooth body design minimizes collection points simplifying the wash down process;Free-floating cap allows unwanted material to wash away during sanitation;Unique cone seal prevents dirt and debris from collecting at the cable entrance;PBT strain relief nut provides unparalleled impact resistance
- FV_Current/Amperage Rating Description
- 15 Amp
- FV_Voltage Rating Description
- 277 VAC
- NEMA Rating
- L7-15R
- Number Of Poles
- 2
- Performance
- Dielectric voltage:2000V AC if rated 300V or less, 3000V AC if rated above 300V;Moisture resistance:UL Listed to 3R, 3RX, 4, 4X, 6, 6P, 12;UV resistance:All exposed materials are UV stabilized;Flammability:UL94V2 (plugs, connectors, and interiors)
- Product Name
- BRY25W34
- Size
- 1.85 in x 1.85 in x 4.62 in
- Standard
- IP69K;Listed to UL498;Certified to CSA C22.2 No. 42;Meets NEMA® WD-1, WD-6, and ANSI Standards;IP66 Suitability;NSF Certified (plugs, connectors and receptacles)
- Type
- Connector Body
- Voltage Rating
- 277 VAC
- Voltage Rating Description
- 277 VAC
