$9.80 / EA
Local stock: 0
Lead time:
1
-
2
working days

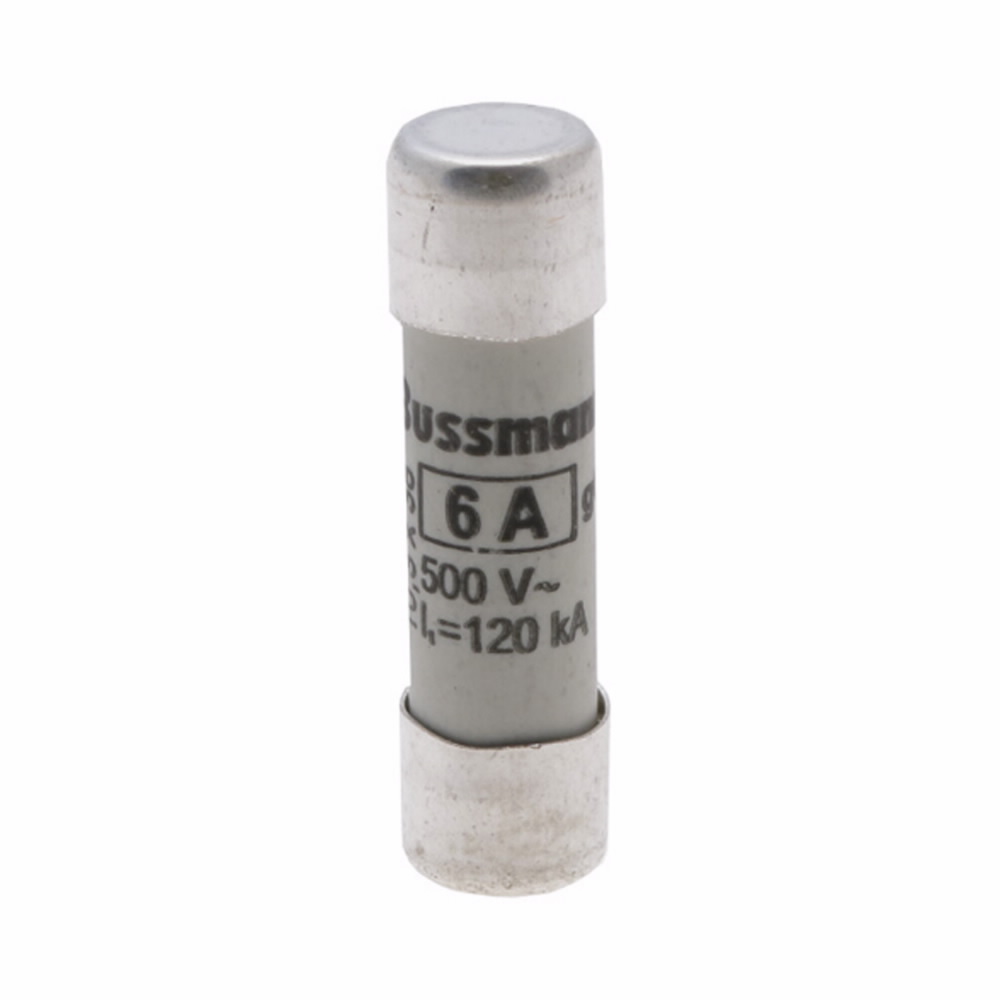

Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class gG/Gl, without indicator, compatible with a CHM Modular fuse holder
Eaton Bussmann series low voltage 10 x 38 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 6 Amps, 120 kA Breaking capacity, class gG/Gl, without indicator, compatible with a CHM Modular fuse holder
Eaton's Bussmann series low voltage cylindrical fuses gG and aM are suitable for industrial applicat...150
Eaton's Bussmann series low voltage cylindrical fuses gG and aM are suitable for industrial applications. gG cylindrical fuses are for general protection against overloads and short circuit. aM cylindrical fuses protect against short circuits in motors, transformers and any applications which typically see high inrush currents. Available in three sizes 10 x 38 mm, 14 x 51 mm and 22 x 58 mm and complemented by a full range of modular fuse holders.
- UPC
- 051712754248
- UNSPSC
- 39121606
- Country of Origin
- ES
- Amperage Rating:
- 6 A
- Material:
- Ceramic bodySilver-plated copper endcap
- Size:
- 10.00 mm Diameter X 38.00 mm Length
- Type:
- Low voltage cylindrical fuse
- Voltage Rating:
- 500 V
- Amperage Rating:
- 6 A
- Class:
- Class C gL/gG
- Connection:
- Ferrule end x ferrule end
- Dimensions:
- 1.4961 IN X 0.3937 IN X 0.3937 IN
- Interrupt Rating:
- 120 kAIC
- Material:
- Ceramic bodySilver-plated copper endcap
- Size:
- 10.00 mm Diameter X 38.00 mm Length
- Standard:
- IEC 60269 ,VDE,CE Marked,RoHS Compliant,Contact factory,GoST-R
- Sub Brand:
- Bussmann Series
- Type:
- Low voltage cylindrical fuse
- Voltage Rating:
- 500 V
