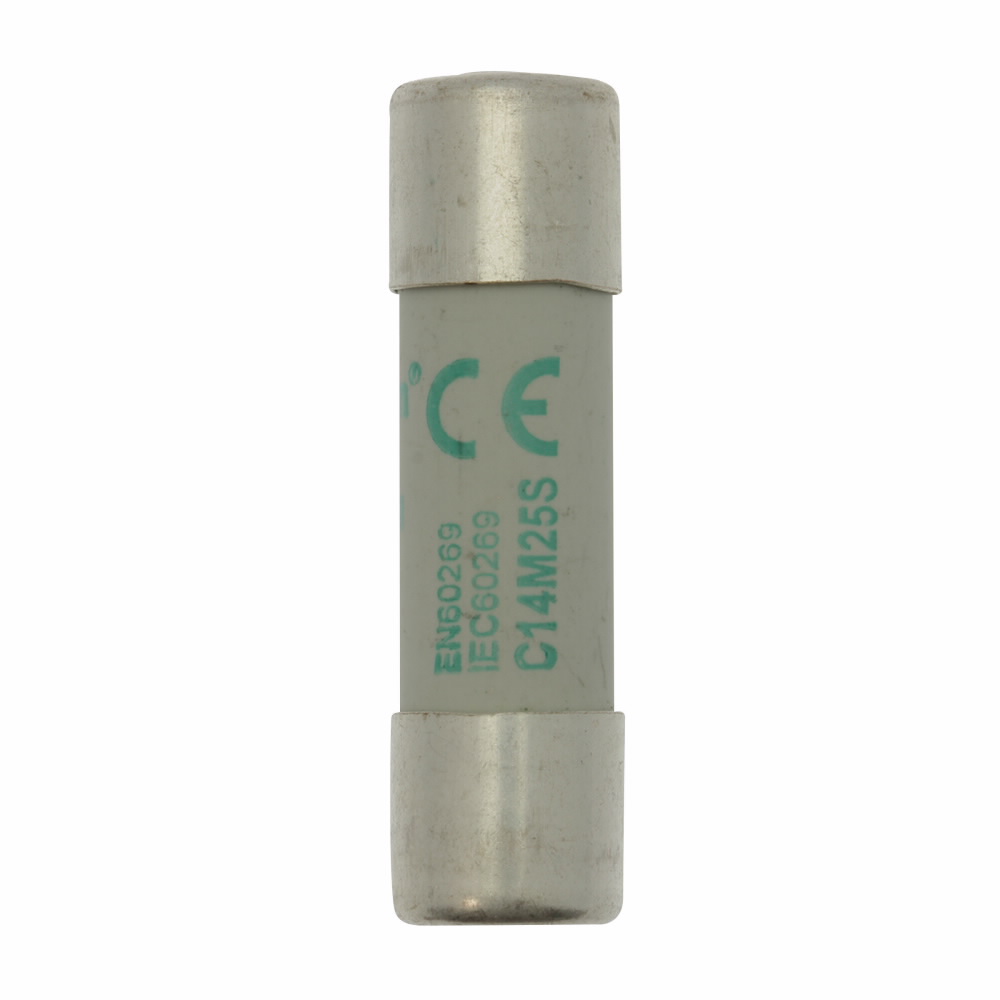

Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 25 Amps, 120 kA Breaking capacity, class aM, with striker, compatible with a CH14 Modular fuse holder
Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 25 Amps, 120 kA Breaking capacity, class aM, with striker, compatible with a CH14 Modular fuse holder
Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 25 Amps, 120 kA Breaking capacity, class aM, with striker, compatible with a CH14 Modular fuse holder
Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 25 Amps, 120 kA Breaking capacity, class aM, with striker, compatible with a CH14 Modular fuse holder

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

C14M25S

Manufacturer
Cooper Bussmann

$86.75 / EA

Available to order

Local stock: 0
Lead time: 1 - 2 working days

Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 25 Amps, 120 kA Breaking capacity, class aM, with striker, compatible with a CH14 Modular fuse holder

Eaton Bussmann series low voltage 14 x 51 mm cylindrical/ferrule fuse, rated at 500 Volts AC, 25 Amps, 120 kA Breaking capacity, class aM, with striker, compatible with a CH14 Modular fuse holder

Eaton's Bussmann series low voltage cylindrical fuses gG and aM are suitable for industrial applicat...150

Eaton's Bussmann series low voltage cylindrical fuses gG and aM are suitable for industrial applications. gG cylindrical fuses are for general protection against overloads and short circuit. aM cylindrical fuses protect against short circuits in motors, transformers and any applications which typically see high inrush currents. Available in three sizes 10 x 38 mm, 14 x 51 mm and 22 x 58 mm and complemented by a full range of modular fuse holders.

UPC
051712666701
UNSPSC
39121606
Country of Origin
ES
Amperage Rating:
25 A
Material:
Ceramic bodySilver-plated copper endcap
Type:
Low voltage cylindrical fuse
Voltage Rating:
500 V
Amperage Rating:
25 A
Class:
Class aM
Dimensions:
2.0079 IN X 0.5512 IN X 0.5512 IN
Interrupt Rating:
120 kAIC
Material:
Ceramic bodySilver-plated copper endcap
Mounting:
Holder14 x 51 mm CH Modular fuse holder
Standard:
IEC 60269,RoHS Compliant,CE Marked,Contact factory
Sub Brand:
Bussmann Series
Type:
Low voltage cylindrical fuse
Voltage Rating:
500 V
