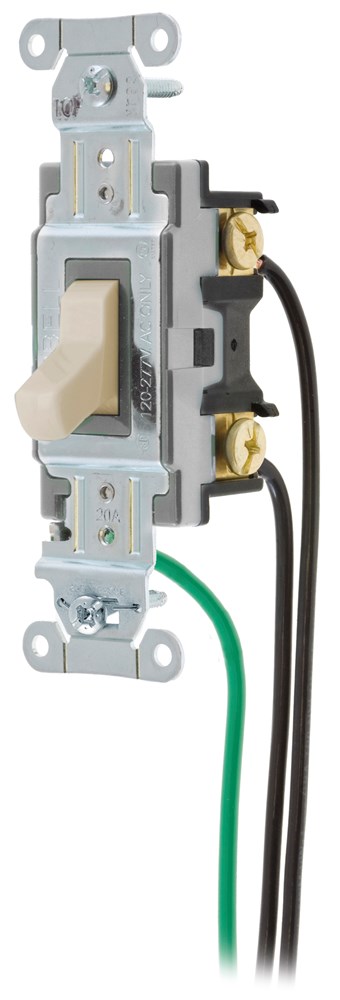

Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

CSL420LA

Manufacturer
Bryant Electric

$24.22 / EA

manufacturer discounts
learn about discounts

  • $21.80 for $300.00+
  • $20.76 for $500.00+
  • $19.90 for $1,000.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Light Almond

Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Light Almond

150

UPC
783585187815
UNSPSC
39122211
Country of Origin
CN
Action:
DPDT
Amperage Rating:
20 A
Color:
Light Almond
Material:
Nylon
Number Of Poles:
2
Size:
4.18 in x 1.34 in x 1.83 in
Type:
Toggle
Voltage Rating:
120 to 277 VAC
Wattage:
5,540 W
Action:
DPDT
Actuator:
Toggle
Amperage Rating:
20 A
Catalog Number:
CSL420LA
Color:
Light Almond
Connection:
Wire Leads
Contact Configuration:
Two Position
Contact Rating:
Per UL 20
Current / Amperage Rating:
20 A
Current Rating:
20 A
Description - Long:
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Light Almond
Description - Short:
Switches and Lighting Controls, Spec Grade, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Light Almond
EU RoHS Indicator:
No
Enclosure:
None
Environmental Conditions:
Indoor Dry unless protected by additional means
FEATURES - Bullets:
Labor Saving;Thread cleaning captive mounting screw;Abuse resistant nylon toggle
Insulation:
None
Item Type:
Four Way Pre-Wired Toggle Switch
Material:
Nylon
Mounting:
Screw Mount
Number Of Poles:
2
Operating Cycles:
50k
Operating Temperature:
Maximum continuous 75°C and minimum -40°C without Impact
Performance:
Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 20A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
Product Name:
CSL420LA
Series:
General Purpose
Size:
4.18 in x 1.34 in x 1.83 in
Standard:
UL Listed
Sub Brand:
AC Toggle Switches
Temperature Rise - Max.:
30°C maximum at rated current
Type:
Toggle
UPC:
783585187815
Voltage Rating:
120 to 277 VAC
Wattage:
5,540 W
