DIN200B

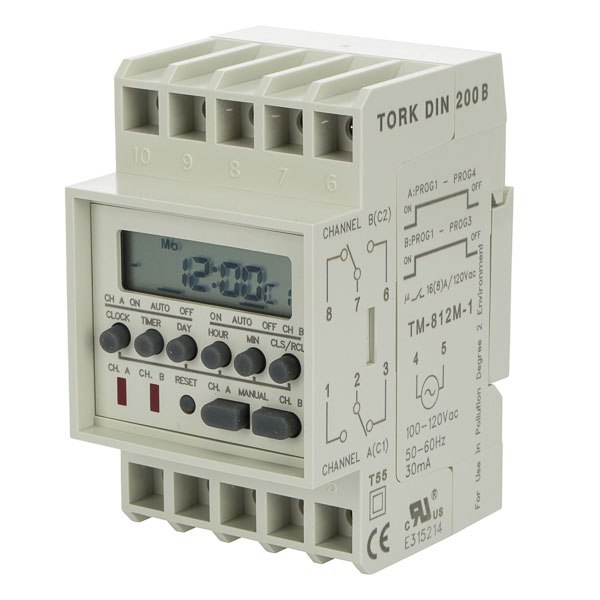

Tork 7 Day 2 Channel SPDT Din Rail Mounting Time Switch APPLICATIONS: Panel builders, indoor/ outdoor lighting, security systems, HVAC equipment FEATURES: INPUT VOLTAGE: 120VAC, 50/60Hz OUTPUT CONTACTS: SPDT Momentary NO. OF CHANNELS: 2 Channel NO. OF ON/OFF : 4 Channel A 3 Channel B TERMINAL RANGE: #12 - #18 AWG POWER CONSUMPTION: 4 VA Maximum OPERATING TEMPERATURE: 14 degrees to 131 degrees F (-10 degrees C to +55 degrees C) MOUNTING: DIN rail #50022 (35mm) or flat surface using supplied adapt... read more

Tork 7 Day 2 Channel SPDT Din Rail Mounting Time Switch APPLICATIONS: Panel builders, indoor/ outdoor lighting, security systems, HVAC equipment FEATURES: INPUT VOLTAGE: 120VAC, 50/60Hz OUTPUT CONTACTS: SPDT Momentary NO. OF CHANNELS: 2 Channel NO. OF ON/OFF : 4 Channel A 3 Channel B TERMINAL RANGE: #12 - #18 AWG POWER CONSUMPTION: 4 VA Maximum OPERATING TEMPERATURE: 14 degrees to 131 degrees F (-10 degrees C to +55 degrees C) MOUNTING: DIN rail #50022 (35mm) or flat surface using supplied adapter. SCHEDULING: 4 ON and OFF (CH A) and 3 ON and OFF (CH B) pairs of set points. Individual programs on each day of the week. Minimum setting is 1 minute. MANUAL OVERRIDE: Until the next regular scheduled ON or OFF, automatic operation then resumes. CLOCK FORMAT: AM/PM POWER OUTAGE BACKUP: Battery retains time and schedule. BRAND EQUIVALENT: Paragon EC72D/120 UPC: 786261821669 CONTACT RATINGS: RESISTIVE: 120 VAC NO: 16A NC: 16A GENERAL PURPOSE: 120 VAC NO: 8A NC: 8A read less
