$16.66 / EA
manufacturer discounts
learn about discounts
- $14.99 for $300.00+
- $14.28 for $500.00+
- $13.68 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

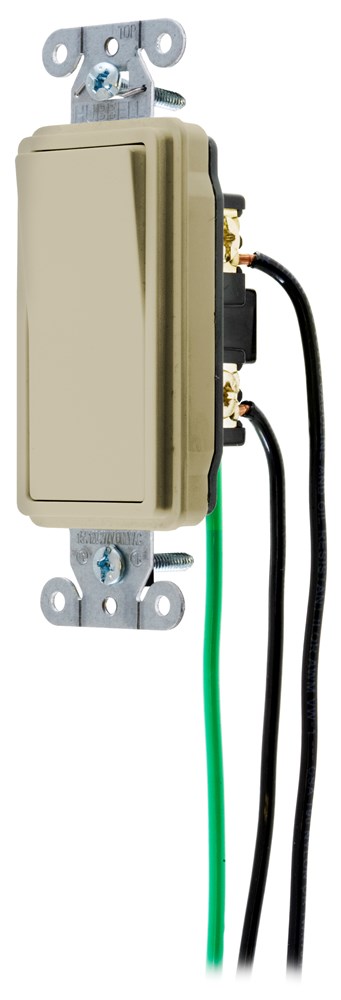

Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Ivory
Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Ivory
150
- UPC
- 783585150789
- UNSPSC
- 39122226
- Country of Origin
- CN
- Action:
- Positive Snap
- Amperage Rating:
- 15 A
- Color:
- Ivory
- Material:
- Polycarbonate
- Number Of Poles:
- 1
- Size:
- 4.12 in x 1.73 in x 1.61 in
- Type:
- Rocker/Decorator
- Voltage Rating:
- 120 to 277 VAC
- Wattage:
- 4,155 W
- Action:
- Positive Snap
- Actuator:
- Rocker
- Amperage Rating:
- 15 A
- Catalog Number:
- DSL115I
- Color:
- Ivory
- Connection:
- Pre-Wired Leads
- Contact Configuration:
- 2 Position
- Contact Rating:
- Per UL 20
- Current / Amperage Rating:
- 15 A
- Current Rating:
- 15 A
- Description - Long:
- Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Ivory
- Description - Short:
- Switches and Lighting Controls, Spec Grade, Decorator Switches, General Purpose AC, Single Pole, 15A 120/277V AC, Back and Side Wired, Pre-Wired with 8" #12 THHN, Ivory
- EU RoHS Indicator:
- No
- Enclosure:
- None
- Environmental Conditions:
- Indoor Dry unless protected by additional means
- FEATURES - Bullets:
- Labor Saving;Thread cleaning captive mounting screw;Steel, zinc plated bridge is corrosion resistant
- Indicator:
- None
- Item Type:
- Single Pole Style Line Decorator Switch
- Material:
- Polycarbonate
- Mounting:
- Screw Mount
- Number Of Poles:
- 1
- Operating Cycles:
- 50k
- Operating Temperature:
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance:
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - 8" #12 AWG THHN
- Product Name:
- DSL115I
- Series:
- General Purpose
- Size:
- 4.12 in x 1.73 in x 1.61 in
- Standard:
- UL Listed
- Sub Brand:
- AC Decorator Switches
- Temperature Rise - Max.:
- 30°C maximum at rated current
- Type:
- Rocker/Decorator
- UPC:
- 783585150789
- Voltage Rating:
- 120 to 277 VAC
- Wattage:
- 4,155 W
