E1SLD63B500

SKU: E1SLD63B500

MPN: E1SLD63B500

Purchase options

$3,950.00 / EA

manufacturer discounts
learn about discounts

$11,914.01 for $1,500.00+
$11,455.78 for $2,500.00+
$10,997.54 for $3,500.00+

In stock (1)

Lead time: over 7 working days

Lead time: over 7 working days
Secure checkout with protected order handling.
Single-unit ordering available.

Dale Electric Supply ships electrical products across the U.S. and supports international orders through customer service. Local delivery may be available in defined regional delivery zones, and larger same-manufacturer orders may qualify for factory-direct shipping. Shipping and fulfillment can vary by product, vendor, manufacturer program, stock state, destination, quantity, and quote workflow.

Customer Service International Sales Factory Direct Shipping

Buying confidence

Established 1948
Secure checkout and protected order handling
Phone support for compatibility and stock questions

Need cross-reference help?

Send us the SKU, manufacturer, photo, or catalog reference. We can cross-reference, confirm availability, and help source hard-to-find electrical supplies.

Contact support Browse catalog Search products

Request a quote

Key specs

View all

Number Of Poles: 3
Type: LD6
Voltage Rating: 600 V

Description

Product overview

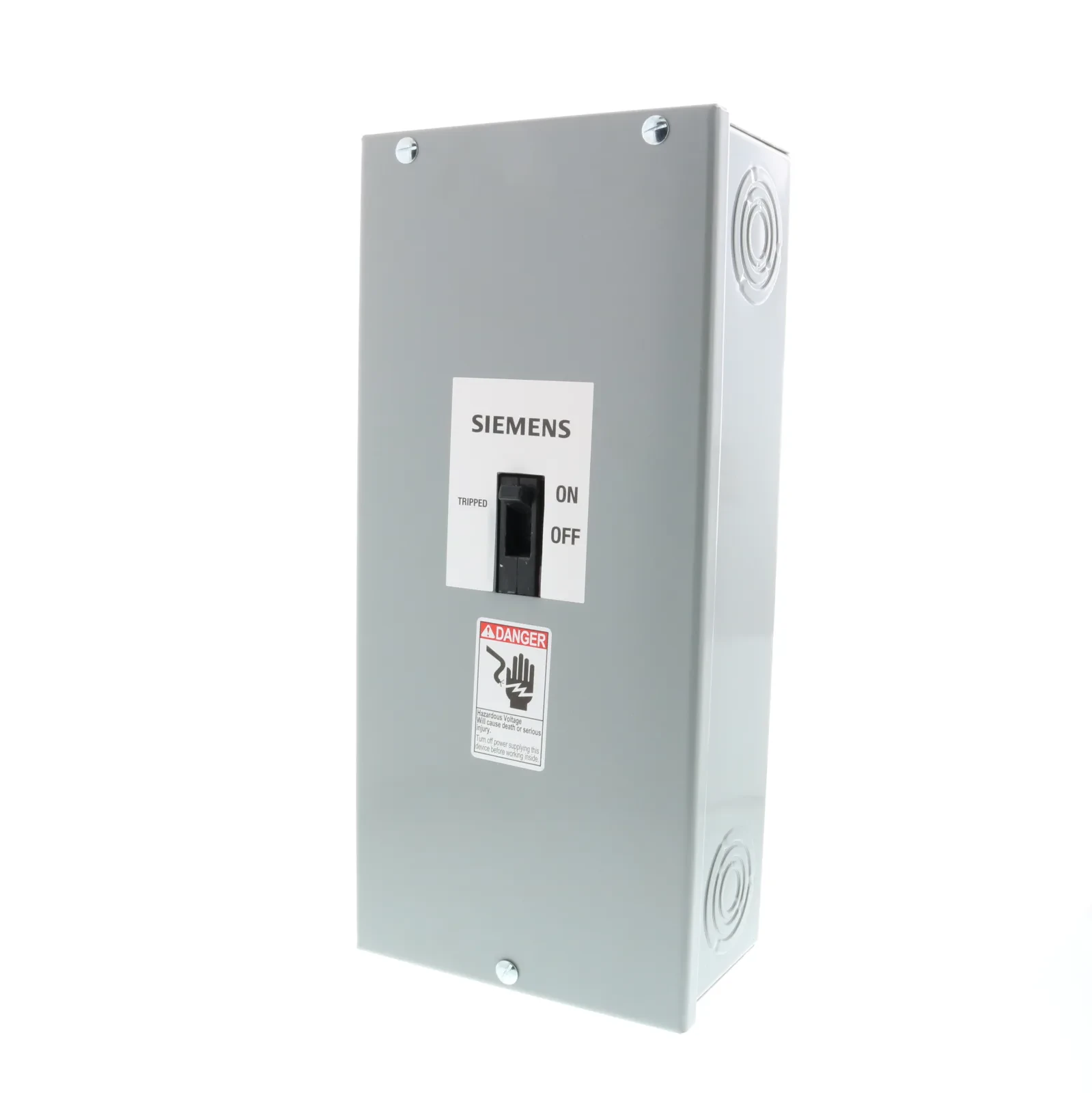

SIEMENS LOW VOLTAGE ENCLOSED SENTRON MOLDED CASE CIRCUIT BREAKER (ASSEMBLED) WITH THERMAL - MAGNETIC TRIP UNIT. 500A 3-POLE 600V STANDARD 40 DEG C BREAKER LD FRAME WITH STANDARD BREAKING CAPACITY (LD63B500). INTERCHANGEABLE TRIP UNIT. NEMATYPE 1 ENCLOSURE SURFACE MOUNTED (LD6N1). ORDER NEUTRAL (W60993). INCLUDES LINEAND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL (CU) / 4/0AWG - 500KCMIL (AL). ENCLOSURE DIMENSIONS (W x H x D) IN 22.42 x 46.00 x 10.70.

Manufacturer highlights

Additional manufacturer notes

Short name: S-A
Feed description: S-A E1SLD63B500 ENCL1S BRKR LD6 3P
Invoice description: ENCL1S BRKR LD6 3P 600V 500A

Specifications

UPC: 783643298064

UNSPSC: 39121601

Country of Origin: MX

Number Of Poles: 3

Type: LD6

Voltage Rating: 600 V

Enclosure: TYPE 1S

Environmental Conditions: INDOOR

Frame: LD

Frequency Rating: 50/60 Hz

Height: 11 in

Interrupt Rating: 25KA

Length: 47.000

Number Of Poles: 3

Operating Temperature: (-25C -- 75C) AMBIENT TEMPERATURE

Standard: UL

Sub Brand: SENTRON

Trip Type: THERMAL MAGNETIC

Type: LD6

Voltage Rating: 600 V

Width: 25.000

BREAKER 20A 2P 120/240V 10K QP 10 KAIC SIEMENS

$17.50 / EA

142 available

View details

Specification comparison

Scan the attributes that differ across these alternatives.

Q120 View key specs

SKU: Q120
Price: $7.10 / EA
Availability: 77 available
Conductor Size: 14-12AWG(CU)/12-10AWG(AL)
Connection: PLUG-IN
Continuous current / rated value: 20 A
Frame: QP(125A)
Height [in]: 2.87 in
Length: 3 in

View full product details

Q230 View key specs

SKU: Q230
Price: $14.95 / EA
Availability: 77 available
Conductor Size: 14-6AWG(CU)/12-6AWG(AL)
Connection: PLUG-IN
Continuous current / rated value: 30 A
Frame: QP(125A)
Height [in]: 2.87 in
Length: 3 in

View full product details

Q115 View key specs

SKU: Q115
Price: $7.10 / EA
Availability: 97 available
Conductor Size: 14-12AWG(CU)/12-10AWG(AL)
Connection: PLUG-IN
Continuous current / rated value: 15 A
Frame: QP(125A)
Height [in]: 2.87 in
Length: 3 in

View full product details

Q250 View key specs

SKU: Q250
Price: $14.95 / EA
Availability: 66 available
Conductor Size: 8-6AWG(CU)/8-4AWG(AL)
Connection: PLUG-IN
Continuous current / rated value: 50 A
Frame: QP(125A)
Height [in]: 2.87 in
Length: 3 in

View full product details

Q2100 View key specs

SKU: Q2100
Price: $49.50 / EA
Availability: 21 available
Conductor Size: 4-1/0AWG(CU)/2-1/0AWG(AL)
Connection: PLUG-IN
Continuous current / rated value: 100 A
Frame: QP(125A)
Height [in]: 3.12 in
Length: 3 in

View full product details

Q220 View key specs

SKU: Q220
Price: $17.50 / EA
Availability: 142 available
Conductor Size: 14-12AWG(CU)/12-10AWG(AL)
Connection: PLUG-IN
Continuous current / rated value: 20 A
Frame: QP(125A)
Height [in]: 2.87 in
Length: 3 in

View full product details

Attribute	Q120 BREAKER 20A 1P 120V 10K QP SINGL POLE 20 AMP BREAKER 10 KAIC SIEMENS	Q230 Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit B...	Q115 BREAKER 15A 1P 120V 10K QP 10 KAIC SIEMENS	Q250 BREAKER 50A 2P 120/240V 10K QP 10 KAIC	Q2100 Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit B...	Q220 BREAKER 20A 2P 120/240V 10K QP 10 KAIC SIEMENS
Price	$7.10 / EA	$14.95 / EA	$7.10 / EA	$14.95 / EA	$49.50 / EA	$17.50 / EA
Availability	77 available	77 available	97 available	66 available	21 available	142 available
Conductor Size	14-12AWG(CU)/12-10AWG(AL)	14-6AWG(CU)/12-6AWG(AL)	14-12AWG(CU)/12-10AWG(AL)	8-6AWG(CU)/8-4AWG(AL)	4-1/0AWG(CU)/2-1/0AWG(AL)	14-12AWG(CU)/12-10AWG(AL)
Connection	PLUG-IN	PLUG-IN	PLUG-IN	PLUG-IN	PLUG-IN	PLUG-IN
Continuous current / rated value	20 A	30 A	15 A	50 A	100 A	20 A
Frame	QP(125A)	QP(125A)	QP(125A)	QP(125A)	QP(125A)	QP(125A)
Height [in]	2.87 in	2.87 in	2.87 in	2.87 in	3.12 in	2.87 in
Length	3 in	3 in	3 in	3 in	3 in	3 in
Number Of Poles	1	2	1	2	2	2
Standard	ULLISTED/CSA/NOMCERTIFIED	ULLISTED/CSA/NOMCERTIFIED	ULLISTED/CSA/NOMCERTIFIED	ULLISTED/CSA/NOMCERTIFIED	ULLISTED/CSA/NOMCERTIFIED	ULLISTED/CSA/NOMCERTIFIED
Supply voltage frequency / rated value / 50/60 Hz	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Trip Type	THERMAL-MAGNETIC	THERMAL-MAGNETIC	THERMAL-MAGNETIC	THERMAL-MAGNETIC	THERMAL-MAGNETIC	THERMAL-MAGNETIC
Type	QP	QP	QP	QP	QP	QP
Type of mounting panel	LOADCENTER	LOADCENTER	LOADCENTER	LOADCENTER	LOADCENTER	LOADCENTER
Voltage / between phase and phase / rated value	—	240 V	—	240 V	240 V	240 V
Voltage Rating	120 V	120 V	120 V	120 V	120 V	120 V
Width	1 in	2 in	1 in	2 in	2 in	2 in
