$28.94 / EA
Eaton Edison ECSR fuse, Superior overload and cycling capabilities, 600V, 100A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X blade end, Class RK5
Eaton Edison ECSR fuse, Superior overload and cycling capabilities, 600V, 100A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X blade end, Class RK5
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent pro...150
Edison's UL Class RK5 dual-element, time-delay fuses provide economical solutions to overcurrent protectioni. Available in both 250Vac and 600Vac, with 200kA RMS Sym interrupting ratings and sizes ranging from 0 to 600 amp.
- UPC
- 782634508434
- UNSPSC
- 39121606
- Country of Origin
- MX
- Amperage Rating:
- 100 A
- Size:
- 1.11 In Diameter X 7.88 In Length
- Type:
- Fuse
- Voltage Rating:
- 600 V
- Amperage Rating:
- 100 A
- Class:
- RK-5
- Connection:
- Blade end x blade end
- Dimensions:
- 9.6300 IN X 1.6100 IN X 1.6100 IN
- Element:
- Dual
- Interrupt Rating:
- 200 kAIC
- Response Time:
- 10 S at 500%
- Size:
- 1.11 In Diameter X 7.88 In Length
- Standard:
- CE Marked
- Sub Brand:
- Edison
- Type:
- Fuse
- Voltage Rating:
- 600 V
Recently Viewed
-
ECSR100-EDF
COOPER BUSSMANN
Eaton Edison ECSR fuse, Superior overload and cycling capabilities, 600V, 100A, 200 kAIC, Non Indicating, Time delay, Current-limiting, Blade end X bl...
See more details -
-
3SE50000AA32
SIEMENS INDUSTRY, INC.

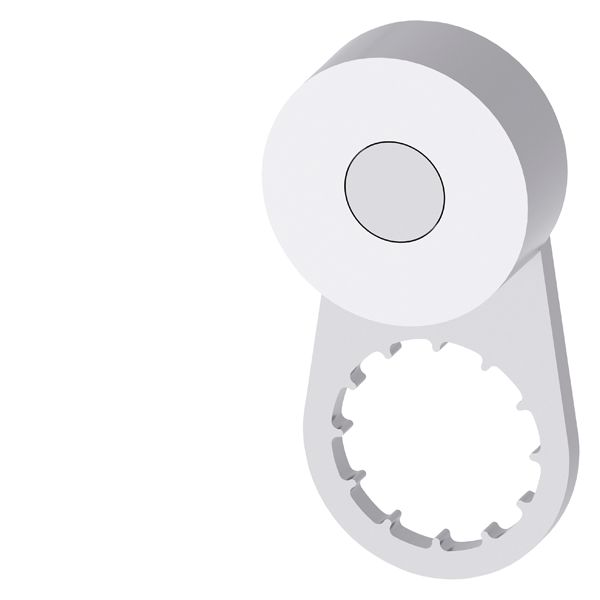

twist lever for position switch 3SE52 Stainless steel lever 21 mm long Form A with stainless steel roller 19 mm according to EN 50047
