Dale Electric Supply Co Inc
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 20A 2-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). ACCESSORIES INCLUDED (B00ED64). DIMENSIONS (W x H x D) IN 2.00 x 6.4 x 3.92.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

ED42B020BF

$2,608.71 / EA

manufacturer discounts
learn about discounts

  • $2,338.84 for $1,500.00+
  • $2,248.89 for $2,500.00+
  • $2,158.93 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 20A 2-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). ACCESSORIES INCLUDED (B00ED64). DIMENSIONS (W x H x D) IN 2.00 x 6.4 x 3.92.

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 20A 2-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 - 10AWG (AL). ACCESSORIES INCLUDED (B00ED64). DIMENSIONS (W x H x D) IN 2.00 x 6.4 x 3.92.

150

UPC
887621650070
UNSPSC
39121601
Country of Origin
MX
Material:
N/A
Number Of Poles:
2
Type:
ED4
Voltage Rating:
480//250 VAC//VDC
Actuator:
B00ED64 Accessory
Auxiliary Contacts:
N/A
Connection:
N/A
Enclosure:
Varying
Environmental Conditions:
N/A
Frame:
ED
Frequency Rating:
50/60 Hz
Height:
4.56 in
Interrupt Rating:
18KAIC
Length:
6.350
Load Rating:
N/A
Material:
N/A
Number Of Poles:
2
Operating Temperature:
40C
Standard:
HACR
Sub Brand:
Sentron
Trip Range:
N/A
Trip Type:
Thermal-Magnetic
Type:
ED4
Voltage Rating:
480//250 VAC//VDC
Width:
4.000

Recently Viewed

  • placeholder image

    ED42B020BF

    SIEMENS INDUSTRY, INC.
    SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CA...
    See more details
  • placeholder image

    16350/1

    ELK GROUP INTERNATIONAL / IMARK GROUP
    Unfortunately, we do not have a description available for 16350/1. Please call (800) 462-7733...
    See more details
  • placeholder image

    1589T48D1

    HAMMOND MANUFACTURING CO., INC.
    Unfortunately, we do not have a description available for 1589T48D1. Please call (800) 462-7733 See more details
  • placeholder image

    AWM1G2-MW4

    LEGRAND/PASS & SEYMOUR
    Unfortunately, we do not have a description available for AWM1G2-MW4. Please call (800) 462-7733 See more details
  • placeholder image

    3RH22444BN40

    SIEMENS INDUSTRY, INC.

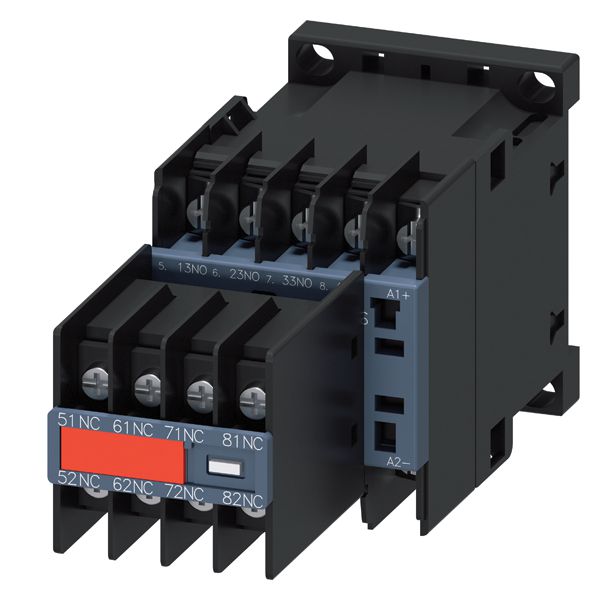

    Contactor relay, 4NO+4nc, DC 250V, sz s00,ringcable lug connection permanent aux. switch, for suva applications
