ED43B125
SKU: ED43B125
MPN: ED43B125
Key specs
View all- Material
- N/A
- Number Of Poles
- 3
- Type
- ED4
- Voltage Rating
- 480//250 VAC//VDC
Description
Product overview

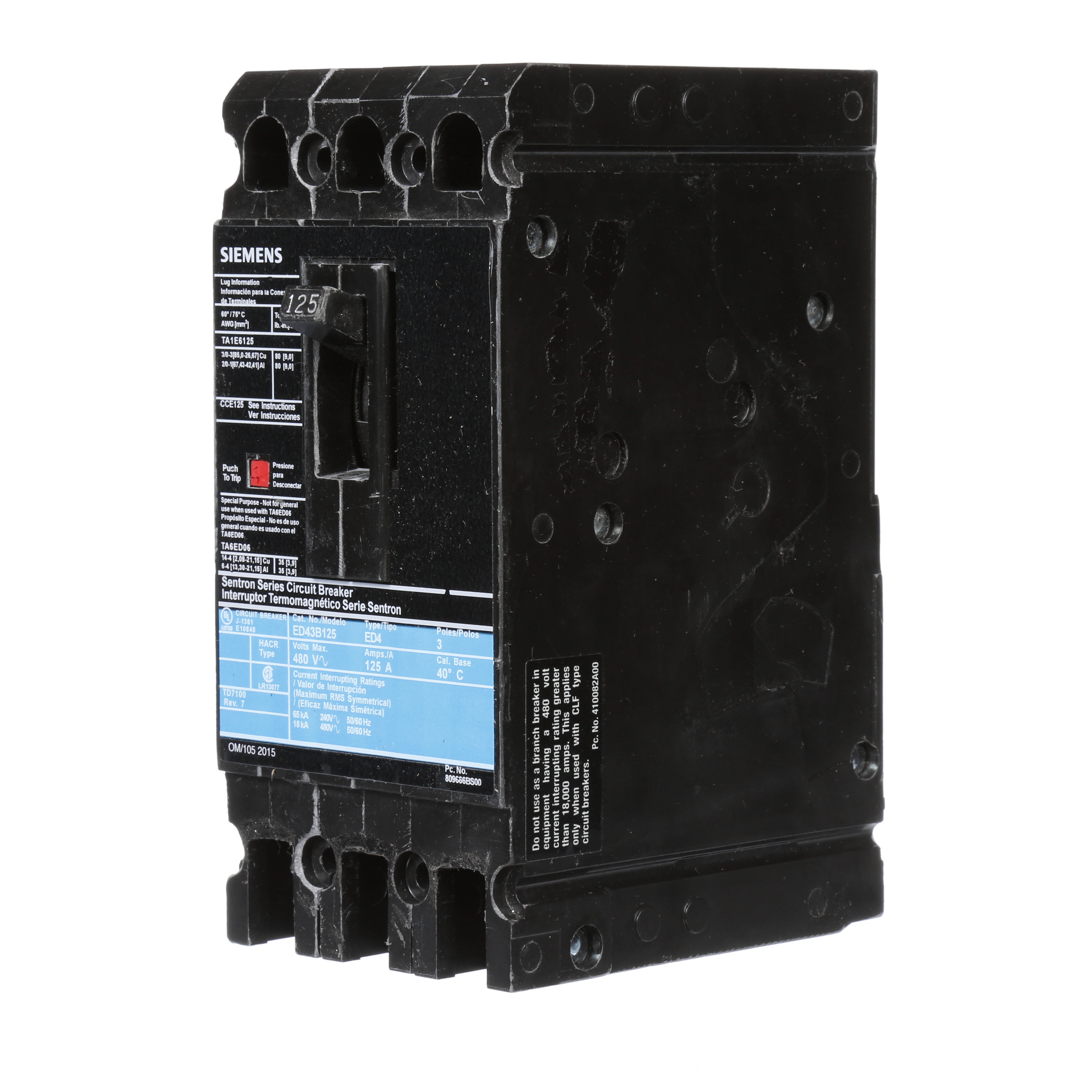

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 125A 3-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (TA1E6125) WIRE RANGE 3 - 3/0AWG (CU) / 1 - 2/0AWG (AL). DIMENSIONS(W x H x D) IN 3.00 x 6.4 x 3.92.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 125A 3-POLE (18KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (TA1E6125) WIRE RANGE 3 - 3/0AWG (CU) / 1 - 2/0AWG (AL). DIMENSIONS(W x H x D) IN 3.00 x 6.4 x 3.92.
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A ED43B125 BRKR ED4 3P 480V 125A
- Invoice description
- BRKR ED4 3P 480V 125A
Specifications
- UPC
- 783643209503
- UNSPSC
- 39121601
- Country of Origin
- MX
- Material
- N/A
- Number Of Poles
- 3
- Type
- ED4
- Voltage Rating
- 480//250 VAC//VDC
- Actuator
- Varying
- Auxiliary Contacts
- N/A
- Connection
- N/A
- Enclosure
- Varying
- Environmental Conditions
- N/A
- Frame
- ED
- Frequency Rating
- 50/60 Hz
- Height
- 7.4 in
- Interrupt Rating
- 18KAIC
- Length
- 3.900
- Load Rating
- N/A
- Material
- N/A
- Number Of Poles
- 3
- Operating Temperature
- 40C
- Standard
- HACR
- Sub Brand
- Sentron
- Trip Range
- N/A
- Trip Type
- Thermal-Magnetic
- Type
- ED4
- Voltage Rating
- 480//250 VAC//VDC
- Width
- 5.600
