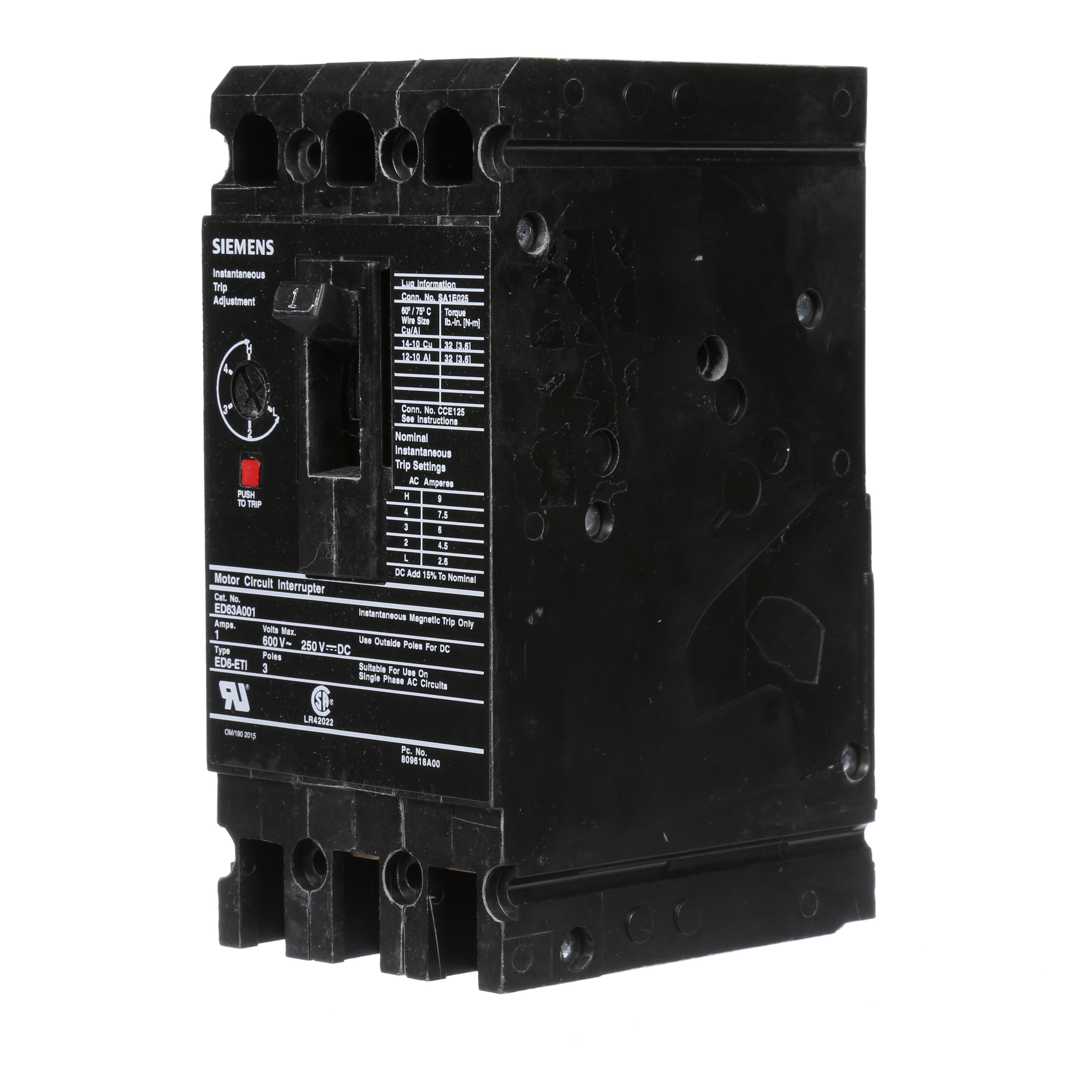

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. STANDARD RANGE ETI BREAKER ED FRAME WITH STAND ARDBREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 1A 3-POLEBREAKER (18KAIC AT 600V) (25KAIC AT 480V). SPECIAL FEATURES LOAD LUGSONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 -10AWG (AL). DIMENSIONS(W x H x D) IN 3 x 6.35 x 3.92._____________________ ___________________________________________________
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. STANDARD RANGE ETI BREAKER ED FRAME WITH STAND ARDBREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 1A 3-POLEBREAKER (18KAIC AT 600V) (25KAIC AT 480V). SPECIAL FEATURES LOAD LUGSONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 -10AWG (AL). DIMENSIONS(W x H x D) IN 3 x 6.35 x 3.92._____________________ ___________________________________________________

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

ED63A001

$2,597.68 / EA

manufacturer discounts
learn about discounts

  • $2,328.95 for $1,500.00+
  • $2,239.38 for $2,500.00+
  • $2,149.80 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. STANDARD RANGE ETI BREAKER ED FRAME WITH STAND ARDBREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 1A 3-POLEBREAKER (18KAIC AT 600V) (25KAIC AT 480V). SPECIAL FEATURES LOAD LUGSONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 -10AWG (AL). DIMENSIONS(W x H x D) IN 3 x 6.35 x 3.92._____________________ ___________________________________________________

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. STANDARD RANGE ETI BREAKER ED FRAME WITH STAND ARDBREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 1A 3-POLEBREAKER (18KAIC AT 600V) (25KAIC AT 480V). SPECIAL FEATURES LOAD LUGSONLY (SA1E025) WIRE RANGE 14 - 10AWG (CU) / 12 -10AWG (AL). DIMENSIONS(W x H x D) IN 3 x 6.35 x 3.92._____________________ ___________________________________________________

150

UPC
783643210783
UNSPSC
39121601
Country of Origin
MX
Material:
N/A
Number Of Poles:
3
Type:
ED6
Voltage Rating:
600//250 VAC//VDC
Actuator:
Varying
Auxiliary Contacts:
N/A
Connection:
N/A
Enclosure:
Varying
Environmental Conditions:
N/A
Frame:
ED
Frequency Rating:
50/60 Hz
Height:
6 in
Interrupt Rating:
18KAIC
Length:
4.000
Load Rating:
N/A
Material:
N/A
Number Of Poles:
3
Operating Temperature:
40C
Standard:
HACR
Sub Brand:
Sentron
Trip Range:
2.3-9
Trip Type:
Thermal-Magnetic
Type:
ED6
Voltage Rating:
600//250 VAC//VDC
Width:
7.000
