Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$8,619.21 / EA
manufacturer discounts
learn about discounts
- $7,727.56 for $1,500.00+
- $7,430.35 for $2,500.00+
- $7,133.14 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 200A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). ACCESSORIES INCLUDED (C01FD64). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. 200A 3-POLE (22KAIC AT 600V) (35KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LOAD LUGS ONLY (TA1FD350A) WIRE RANGE 6AWG - 350KCMIL (CU) / 4AWG - 350KCMIL (AL). ACCESSORIES INCLUDED (C01FD64). DIMENSIONS (W x H x D) IN 4.50 x 9.5 x 4.00.
150
- UPC
- 783643470750
- UNSPSC
- 39121601
- Country of Origin
- MX
- Material:
- N/A
- Number Of Poles:
- 3
- Type:
- FD6
- Voltage Rating:
- 600//500 VAC//VDC
- Actuator:
- C01FD64 Accessory
- Auxiliary Contacts:
- N/A
- Connection:
- Load side lugs only
- Enclosure:
- Varying
- Environmental Conditions:
- N/A
- Frame:
- FD
- Frequency Rating:
- 50/60 Hz
- Height:
- 11 in
- Interrupt Rating:
- 22KAIC
- Length:
- 7.000
- Load Rating:
- N/A
- Material:
- N/A
- Number Of Poles:
- 3
- Operating Temperature:
- 40C
- Standard:
- UL/HACR
- Sub Brand:
- Sentron
- Trip Range:
- 900-2000
- Trip Type:
- Thermal-Magnetic
- Type:
- FD6
- Voltage Rating:
- 600//500 VAC//VDC
- Width:
- 6.000
Recently Viewed
-
FD63B200PAFBF
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD B...
See more details -
30481614
OLDCASTLE ENCLOSURE SOLUTIONS
Unfortunately, we do not have a description available for 30481614. Please call (800) 462-7733...
See more details -
OLB-8MCG
KILLARK ELECTRICAL PRODUCTS
O SERIES/DURALOY 5 SERIES - MALLEABLE IRON CONDUIT BODY WITH COVER ANDGASKET - LB TYPE - HUB SIZE 3 INCH - VOLUME 173.0 CUBIC INCHES
See more details -
S11MN64A
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER INTERNAL ACCESSORY. 125VDC SHUNT TRIP COMBINATION WITH FORM C 480 VAC AUXILIARY SWITCH (1NO /...
See more details -

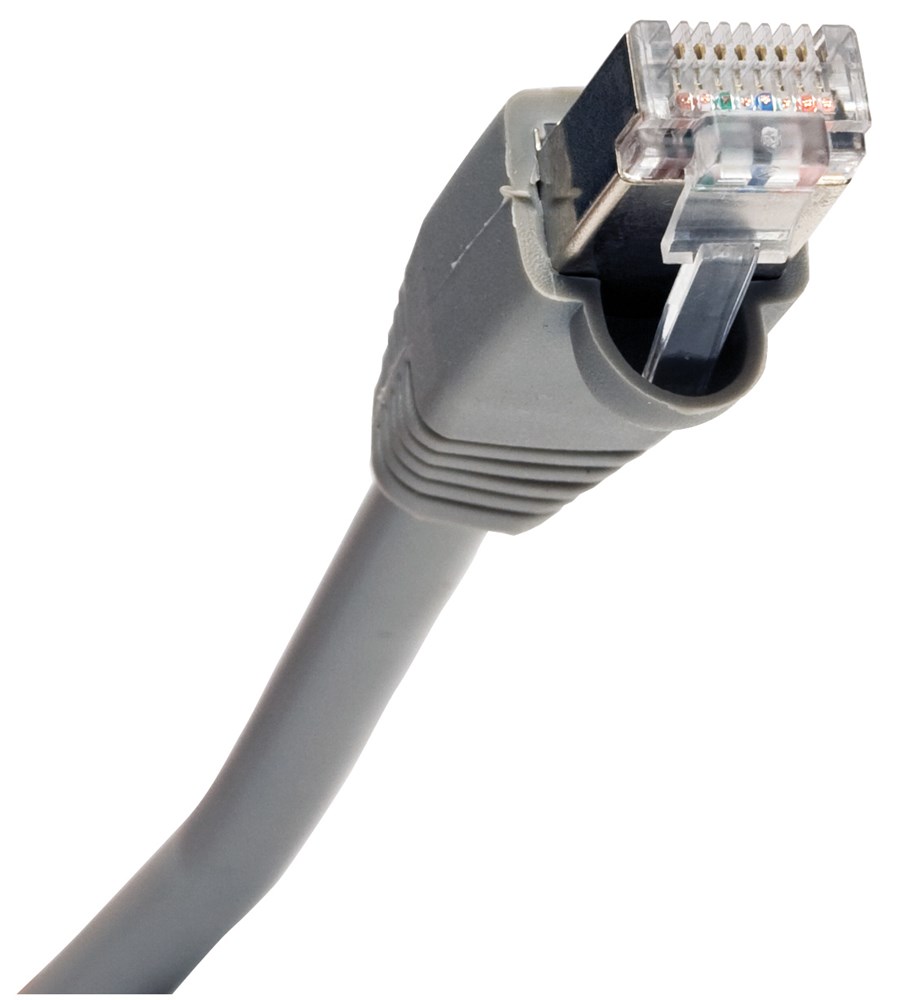

PS5E10GY
