SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 250A 3-POLE BREAKER (22KAIC AT 600V) (35KAIC AT 480V). SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL). ACCESSORIES INSTALLED 120VAC UNDERVOLTAGE RELEASE (U01FD60). DIMENSIONS (W x H x D) IN 4.5 x 9.5 x 4.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

FD63B250XUN

$12,172.58 / EA

manufacturer discounts
learn about discounts

  • $10,913.34 for $1,500.00+
  • $10,493.60 for $2,500.00+
  • $10,073.86 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 250A 3-POLE BREAKER (22KAIC AT 600V) (35KAIC AT 480V). SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL). ACCESSORIES INSTALLED 120VAC UNDERVOLTAGE RELEASE (U01FD60). DIMENSIONS (W x H x D) IN 4.5 x 9.5 x 4.

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CAPACITY. MEETS UL 489 / IEC 60947-2 STANDARDS. 250A 3-POLE BREAKER (22KAIC AT 600V) (35KAIC AT 480V). SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1FD350A) WIRE RANGE 6AWG - 350KCM (CU) / 4AWG - 350KCM (AL). ACCESSORIES INSTALLED 120VAC UNDERVOLTAGE RELEASE (U01FD60). DIMENSIONS (W x H x D) IN 4.5 x 9.5 x 4.

150

UPC
040892869972
UNSPSC
39121601
Country of Origin
US
Number Of Poles:
3
Type:
FD6
Voltage Rating:
600//500 VAC//VDC
Actuator:
U01FD60 Accessory
Enclosure:
Varying
Frame:
FD
Frequency Rating:
50/60 Hz
Height:
11 in
Interrupt Rating:
22KAIC
Length:
7.000
Number Of Poles:
3
Operating Temperature:
40C
Standard:
UL/HACR
Sub Brand:
Sentron
Trip Range:
1100-2500
Trip Type:
Thermal-Magnetic
Type:
FD6
Voltage Rating:
600//500 VAC//VDC
Width:
6.000

Recently Viewed

  • placeholder image

    FD63B250XUN

    SIEMENS INDUSTRY, INC.
    SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER FD FRAME WITH STANDARD BREAKING CA...
    See more details
  • placeholder image

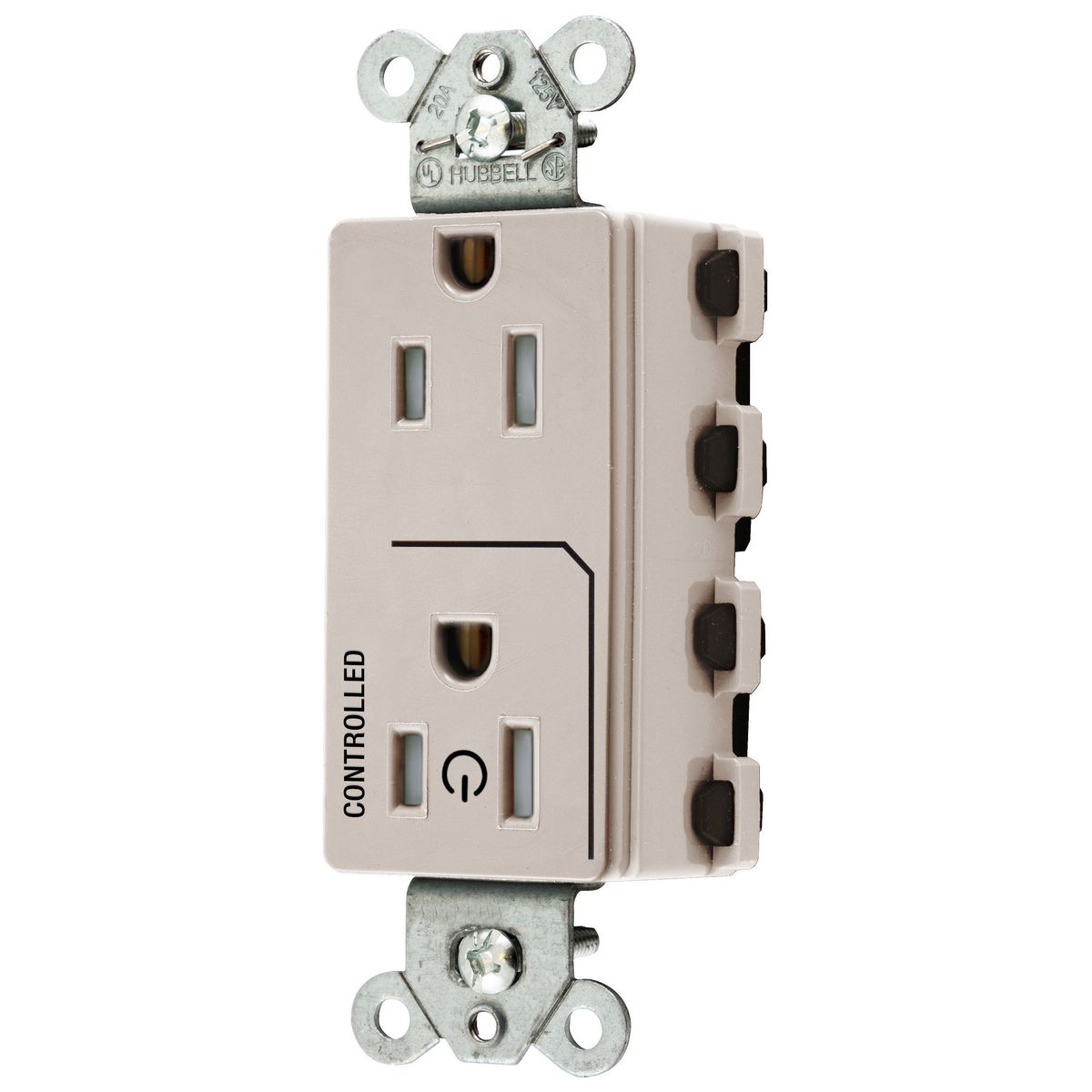

    SNAP2152C1LATRA
