Eaton Bussmann series FRS-R fuse, 60 A, Dual, Class RK5, With Indicator, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 250 Vdc,200 kAIC at 600 V, Standard, 600 V, 250 Vdc
Eaton Bussmann series FRS-R fuse, 60 A, Dual, Class RK5, With Indicator, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 250 Vdc,200 kAIC at 600 V, Standard, 600 V, 250 Vdc
Eaton Bussmann series FRS-R fuse, 60 A, Dual, Class RK5, With Indicator, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 250 Vdc,200 kAIC at 600 V, Standard, 600 V, 250 Vdc

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

FRS-R-60ID

Manufacturer
Cooper Bussmann

$48.05 / EA

Available to order

Local stock: 0
Lead time: 1 - 2 working days

Eaton Bussmann series FRS-R fuse, 60 A, Dual, Class RK5, With Indicator, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 250 Vdc,200 kAIC at 600 V, Standard, 600 V, 250 Vdc

Eaton Bussmann series FRS-R fuse, 60 A, Dual, Class RK5, With Indicator, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 250 Vdc,200 kAIC at 600 V, Standard, 600 V, 250 Vdc

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with...150

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).

UPC
051712204668
UNSPSC
39121606
Country of Origin
MX
Amperage Rating:
60 A
Size:
1.06 In Diameter X 5.50 In Length
Type:
Fuse
Voltage Rating:
600//250 VAC//VDC
Amperage Rating:
60 A
Class:
RK-5
Connection:
Ferrule end x ferrule end
Dimensions:
5.0000 IN X 0.8100 IN X 0.8100 IN
Element:
Dual
Interrupt Rating:
200 kAIC at 600 Vac20 kAIC at 250 Vdc
Response Time:
10 S at 500%
Size:
1.06 In Diameter X 5.50 In Length
Standard:
CE Marked
Sub Brand:
Bussmann Series
Type:
Fuse
Voltage Rating:
600//250 VAC//VDC

Recently Viewed

  • placeholder image

    FRS-R-60ID

    COOPER BUSSMANN
    Eaton Bussmann series FRS-R fuse, 60 A, Dual, Class RK5, With Indicator, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 250 Vdc,200 kAIC at 600...
    See more details
  • placeholder image

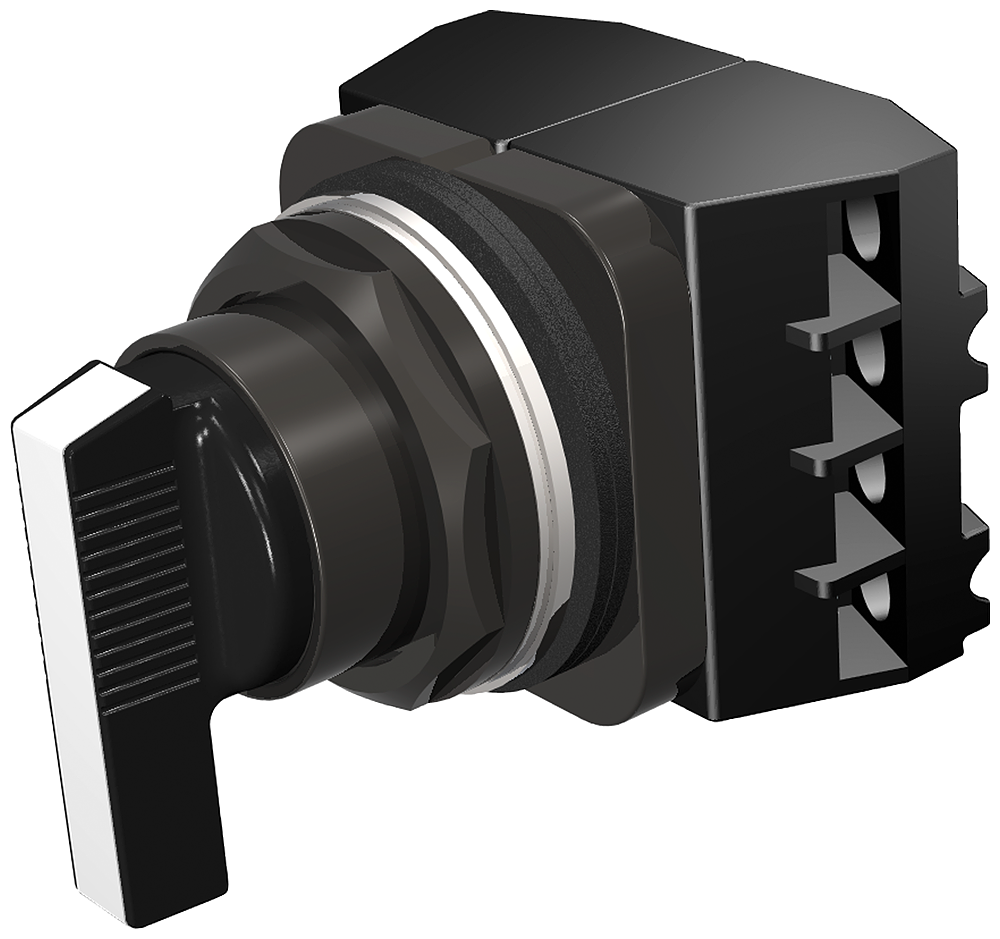

    52SW2CDBA2

    SIEMENS INDUSTRY, INC.
    Selector Switch, Metal, NEMA 4X Spring return left ( & ) right Long Lever, C Cam 1NO-1NC left, 1NO-1NC right 3 position Complete Device White Insert N...
    See more details
  • placeholder image

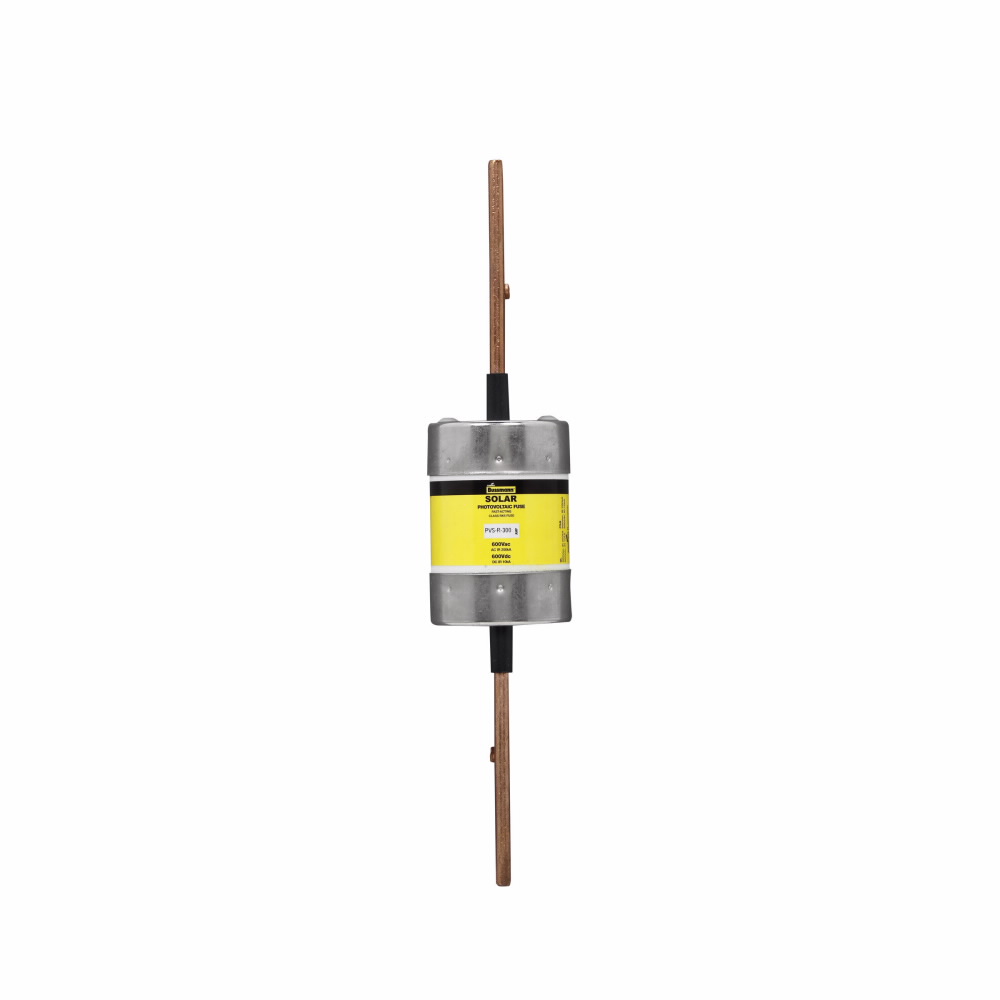

    PVS-R-300
