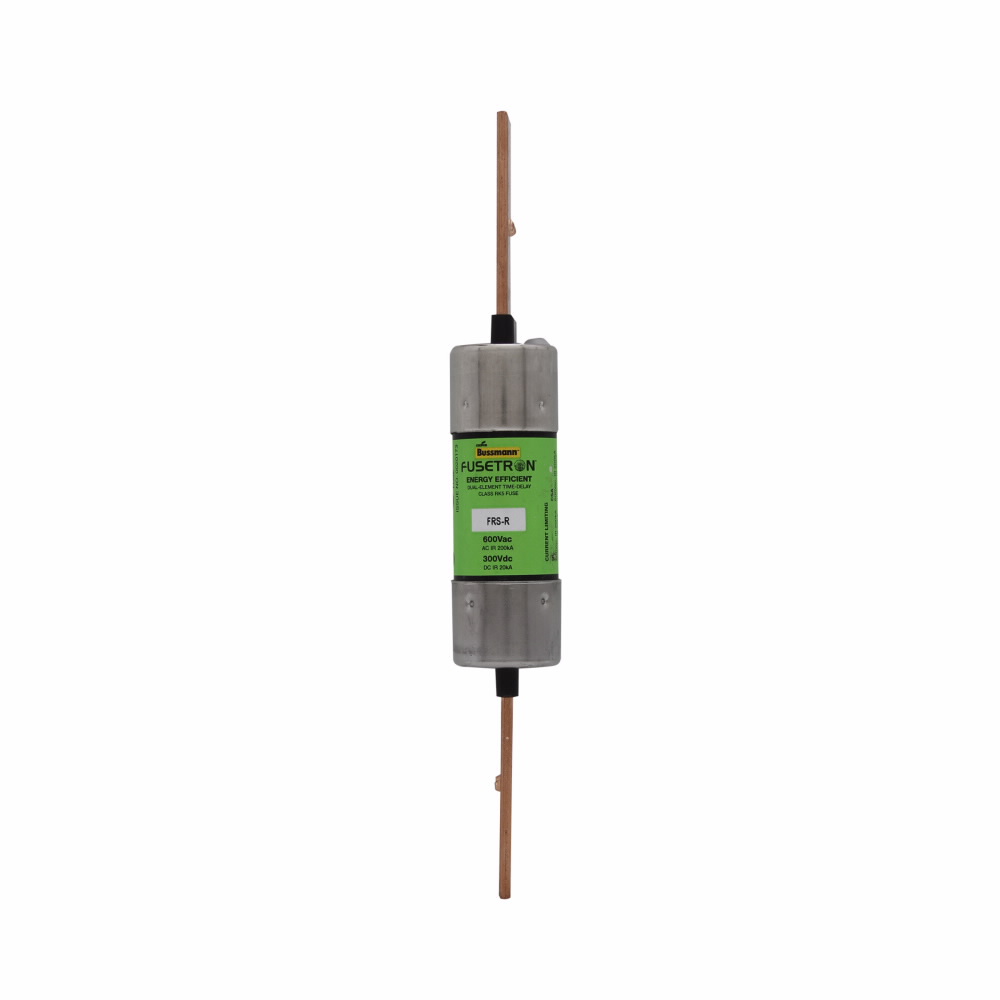

Eaton Bussmann series FRS-R fuse, 65 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC at 600 V,20 kAIC at 300 Vdc, Standard, 600 V, 300 Vdc
Eaton Bussmann series FRS-R fuse, 65 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC at 600 V,20 kAIC at 300 Vdc, Standard, 600 V, 300 Vdc
Eaton Bussmann series FRS-R fuse, 65 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC at 600 V,20 kAIC at 300 Vdc, Standard, 600 V, 300 Vdc
Eaton Bussmann series FRS-R fuse, 65 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC at 600 V,20 kAIC at 300 Vdc, Standard, 600 V, 300 Vdc

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

FRS-R-65

Manufacturer
Bussman Fuse

$103.16 / EA

Available to order

Local stock: 0
Lead time: 1 - 2 working days

Eaton Bussmann series FRS-R fuse, 65 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC at 600 V,20 kAIC at 300 Vdc, Standard, 600 V, 300 Vdc

Eaton Bussmann series FRS-R fuse, 65 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 200 kAIC at 600 V,20 kAIC at 300 Vdc, Standard, 600 V, 300 Vdc

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with...150

Bussmann's UL Class RK5 Fusetron product offering provides energy efficient advanced protection with its dual-element, time-delay construction and is available with optional open fuse indication on select ratings. Available in both 250Vac and 600Vac, 200kA RMS Sym interrupting rating and sizes ranging from 0 to 600 amp. Fusetron's deliver 10 seconds (minimum) of time-delay at 500% of rated current (8 seconds for 1/10-30A sizes).

UPC
051712508964
UNSPSC
39121606
Country of Origin
MX
Amperage Rating:
65 A
Size:
1.11 In Diameter X 7.88 In Length
Type:
Fuse
Voltage Rating:
600//300 VAC//VDC
Amperage Rating:
65 A
Class:
RK-5
Connection:
Blade end x blade end
Dimensions:
5.0000 IN X 0.8100 IN X 0.8100 IN
Element:
Dual
Interrupt Rating:
200 kAIC at 600 Vac20 kAIC at 300 Vdc
Response Time:
10 S at 500%
Size:
1.11 In Diameter X 7.88 In Length
Standard:
CE Marked
Sub Brand:
Bussmann Series
Type:
Fuse
Voltage Rating:
600//300 VAC//VDC
