$16.86 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

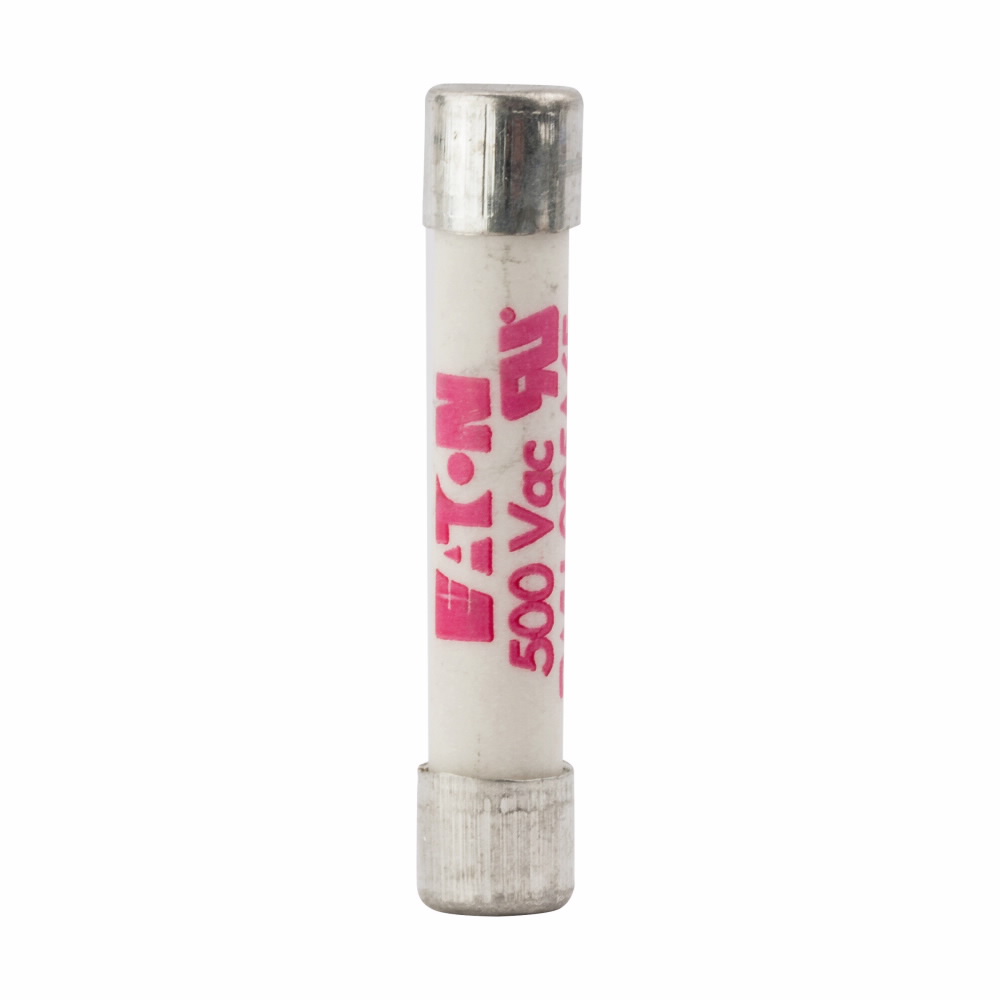

Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (35-800A only), 5A, 50 kAIC at 0.25-20A, 20 kAIC at 25-30A, Non Indicating, High speed fuse, Ferrule end X ferrule end
Eaton Bussmann series FWH high speed fuse, 500 Vac/dc (35-800A only), 5A, 50 kAIC at 0.25-20A, 20 kAIC at 25-30A, Non Indicating, High speed fuse, Ferrule end X ferrule end
Eaton�s Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Dr...150
Eaton�s Bussmann series High speed cylindrical fuses are suitable for the protection of AC and DC Drives, power converters/ rectifiers and variable speed drives. They are available as gR and aR operating class
- UPC
- 051712796675
- UNSPSC
- 39121628
- Country of Origin
- MUL
- Amperage Rating:
- 5 A
- Size:
- 1/4 In Diameter X 1-1/4 In Length
- Type:
- High speed cylindrical fuse
- Voltage Rating:
- 500 V
- Amperage Rating:
- 5 A
- Connection:
- Ferrule end x ferrule end
- Dimensions:
- 1.2992 IN X 0.2756 IN X 0.2756 IN
- Interrupt Rating:
- 20 kAIC at 25-30A50 kAIC at 0.25-20A
- Response Time:
- >30 min at 150%, <30 min at 200%, <= to 10 sec at 300%
- Size:
- 1/4 In Diameter X 1-1/4 In Length
- Standard:
- UL Recognized ,CSA Certified,RoHS Compliant,CE Marked
- Sub Brand:
- Bussmann Series
- Type:
- High speed cylindrical fuse
- Voltage Rating:
- 500 V
KAW-30
$126.57 /ea
Eaton Bussmann series KAW semiconductor fuse, 30 A
| Attributed Data | Included |
|---|---|
| Dimensions | 0.3600 IN X 0.3600 IN X 1.5000 IN Yes |
| Standard | Contact factory,Contact Manufacturer Yes |
| Sub Brand | Bussmann Series Yes |
| Type | Semiconductor fuse Yes |
FWC-25A10F
$27.03 /ea
Eaton Bussmann series FWC high speed cylindrical fuse, 500 Vac/dc (35-800A only), 25A, 200 kAIC Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
| Attributed Data | Included |
|---|---|
| Connection | Ferrule end x ferrule end Yes |
| Dimensions | 1.4961 IN X 0.4331 IN X 0.4331 IN Yes |
| Interrupt Rating | 50 kAIC at 700 Vdc200 kAIC Vac Yes |
| Size | 0.406 In Diameter X 1.500 In Length Yes |
| Standard | UL Recognized ,CSA Certified,CE Marked Yes |
| Sub Brand | Bussmann Series Yes |
| Type | High speed cylindrical fuse Yes |
FWC-32A10F
$27.03 /ea
Eaton Bussmann series FWC high speed cylindrical fuse, 600V (UL), 32A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
| Attributed Data | Included |
|---|---|
| Class | Class aR Yes |
| Connection | Ferrule end x ferrule end Yes |
| Dimensions | 1.4961 IN X 0.4331 IN X 0.4331 IN Yes |
| Interrupt Rating | 50 kAIC at 300 Vdc200 kAIC at 300 Vdc Yes |
| Material | Ceramic Yes |
| Size | 0.406 In Diameter X 1.500 In Length Yes |
| Standard | CSA Certified ,UL Recognized,CE Marked,RoHS Compliant Yes |
| Sub Brand | Bussmann Series Yes |
| Type | High speed cylindrical fuse Yes |
| Product Image |
|
|
|
|
|---|---|---|---|---|
|
KAW-30
Eaton Bussmann series KAW semiconductor fuse, 30 A
$126.57 / EA
|
FWC-25A10F
Eaton Bussmann series FWC high speed cylindrical fuse, 500 Vac/dc (35-800A only), 25A, 200 kAIC Vac, 50 kAIC at 700 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end
$27.03 / EA
|
FWC-32A10F
Eaton Bussmann series FWC high speed cylindrical fuse, 600V (UL), 32A, 200 kAIC at 300 Vdc, 50 kAIC at 300 Vdc, Non Indicating, High speed fuse, Ferrule end X ferrule end, Class aR, White, Ceramic
$27.03 / EA
|
||
| Attributed Data | ||||
| Amperage Rating | 25 A 25 A | 30 A 30 A | 32 A 32 A | |
| Class | Class aR Class aR | |||
| Connection | Ferrule end x ferrule end Ferrule end x ferrule end | |||
| Dimensions | 0.3600 IN X 0.3600 IN X 1.5000 IN 0.3600 IN X 0.3600 IN X 1.5000 IN | 1.4961 IN X 0.4331 IN X 0.4331 IN 1.4961 IN X 0.4331 IN X 0.4331 IN | ||
| Interrupt Rating | 50 kAIC at 300 Vdc200 kAIC at 300 Vdc 50 kAIC at 300 Vdc200 kAIC at 300 Vdc | 50 kAIC at 700 Vdc200 kAIC Vac 50 kAIC at 700 Vdc200 kAIC Vac | ||
| Material | Ceramic Ceramic | |||
| Size | 0.406 In Diameter X 1.500 In Length 0.406 In Diameter X 1.500 In Length | |||
| Standard | CSA Certified ,UL Recognized,CE Marked,RoHS Compliant CSA Certified ,UL Recognized,CE Marked,RoHS Compliant | CSA Certified,UL Recognized,CE Marked,RoHS Compliant CSA Certified,UL Recognized,CE Marked,RoHS Compliant | Contact factory,Contact Manufacturer Contact factory,Contact Manufacturer | UL Recognized ,CSA Certified,CE Marked UL Recognized ,CSA Certified,CE Marked |
| Sub Brand | Bussmann Series Bussmann Series | |||
| Type | High speed cylindrical fuse High speed cylindrical fuse | Semiconductor fuse Semiconductor fuse | ||
| Voltage Rating | 600 V 600 V | |||
| Add a product to the cart | Show more details | Show more details | Show more details | |
