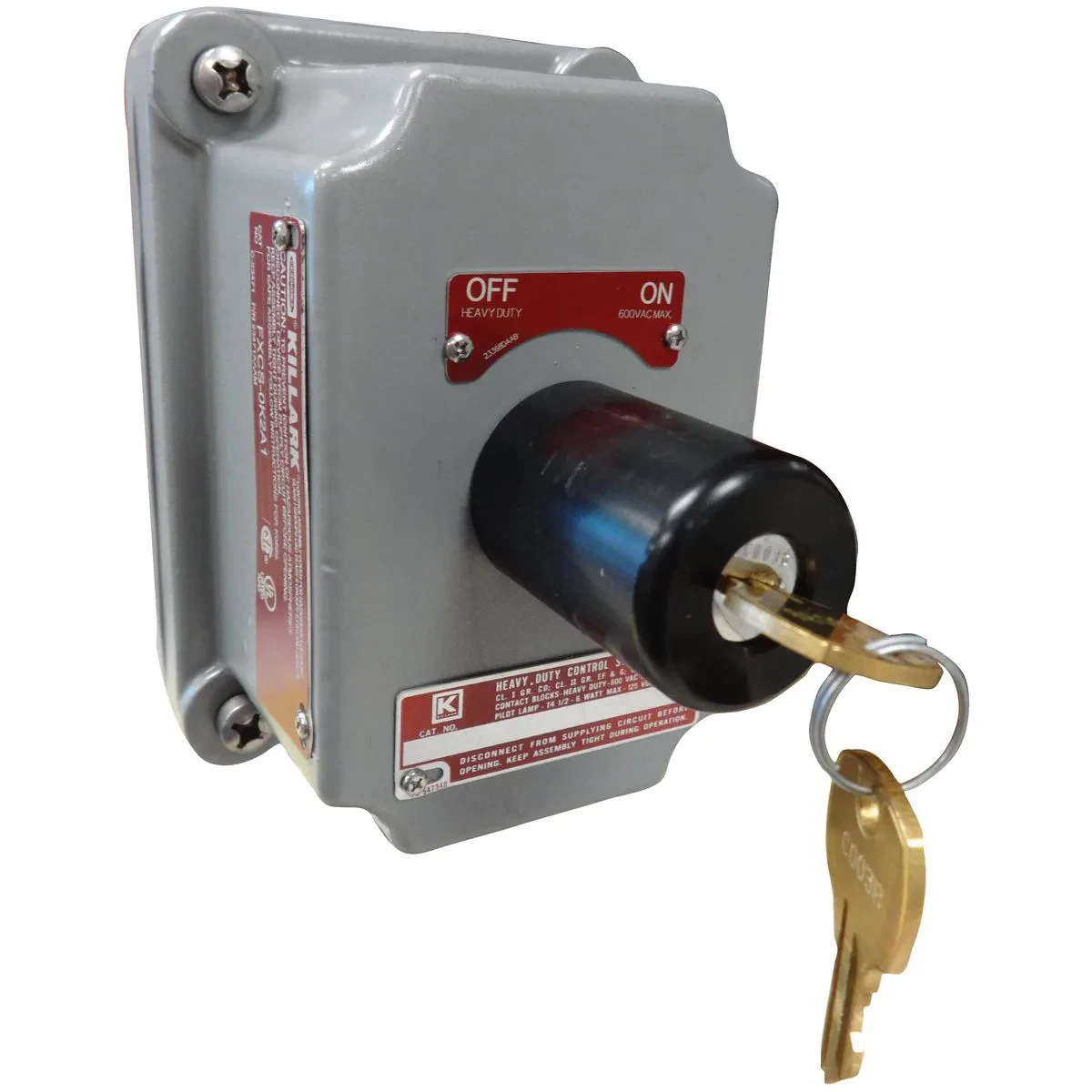

FXCS SERIES - ALUMINUM MAINTAINED CONTACT 2-POSITION KEYED SELECTORSWITCH COVER WITH DEVICE - FACTORY SEALED - KEYED DIFFERENT WITH KEYREMOVAL IN BOTH POSITIONS -
FXCS SERIES - ALUMINUM MAINTAINED CONTACT 2-POSITION KEYED SELECTORSWITCH COVER WITH DEVICE - FACTORY SEALED - KEYED DIFFERENT WITH KEYREMOVAL IN BOTH POSITIONS -

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

FXCS-0K2A1

$419.11 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

FXCS SERIES - ALUMINUM MAINTAINED CONTACT 2-POSITION KEYED SELECTORSWITCH COVER WITH DEVICE - FACTORY SEALED - KEYED DIFFERENT WITH KEYREMOVAL IN BOTH POSITIONS - "OFF - ON"/BLANK NAMEPLATE - 1NO/1NC CONTACTRATING

FXCS SERIES - ALUMINUM MAINTAINED CONTACT 2-POSITION KEYED SELECTORSWITCH COVER WITH DEVICE - FACTORY SEALED - KEYED DIFFERENT WITH KEYREMOVAL IN BOTH POSITIONS - "OFF - ON"/BLANK NAMEPLATE - 1NO/1NC CONTACTRATING

150

UPC
783936200613
UNSPSC
39122216
Country of Origin
US
Action:
SP
Amperage Rating:
275m/550m/2.5 A
Number Of Poles:
1
Size:
5-5/16" H x 3-11/16" W x 2.59" D
Type:
Aluminum factory sealed cover with 2-position key selector switch
Voltage Rating:
600 VAC
Action:
SP
Actuator:
2-position key selector switch
Amperage Rating:
275m/550m/2.5 A
Contact Configuration:
1-NO/1-NC
Contact Rating:
60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Environmental Conditions:
Hazardous locations
Number Of Poles:
1
Size:
5-5/16" H x 3-11/16" W x 2.59" D
Standard:
UL, CSA
Sub Brand:
SEAL-X
Type:
Aluminum factory sealed cover with 2-position key selector switch
Voltage Rating:
600 VAC
