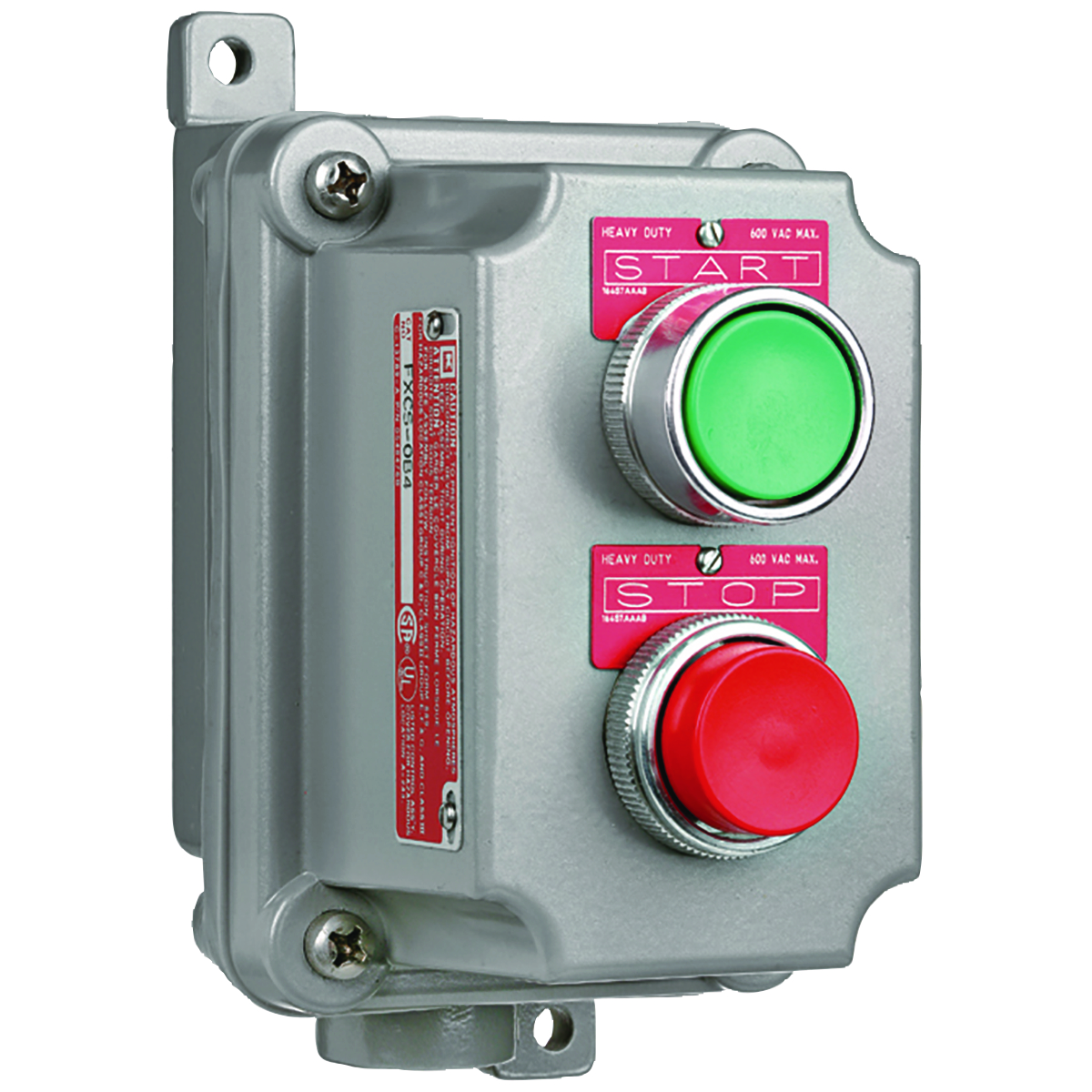

FXCS SERIES - ALUMINUM DEAD-END MOMENTARY CONTACT DOUBLE PUSH BUTTONCONTROL STATION - FACTORY SEALED - GREEN BUTTON WITH
FXCS SERIES - ALUMINUM DEAD-END MOMENTARY CONTACT DOUBLE PUSH BUTTONCONTROL STATION - FACTORY SEALED - GREEN BUTTON WITH

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

FXCS-1B4-U

$482.92 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

FXCS SERIES - ALUMINUM DEAD-END MOMENTARY CONTACT DOUBLE PUSH BUTTONCONTROL STATION - FACTORY SEALED - GREEN BUTTON WITH "START" NAMEPLATE -RED BUTTON WITH "STOP" NAMEPLATE - HUB SIZE 1/2 INCH - 2NO/2NC CONTACTRAT

FXCS SERIES - ALUMINUM DEAD-END MOMENTARY CONTACT DOUBLE PUSH BUTTONCONTROL STATION - FACTORY SEALED - GREEN BUTTON WITH "START" NAMEPLATE -RED BUTTON WITH "STOP" NAMEPLATE - HUB SIZE 1/2 INCH - 2NO/2NC CONTACTRAT

150

UPC
783936200835
UNSPSC
39122216
Country of Origin
US
Action:
SP
Amperage Rating:
275m/550m/2.5 A
Number Of Poles:
2
Size:
6-13/16" H x 3-11/16" W x 4-13/32" D
Type:
Aluminum factory sealed box and cover with two push buttons
Voltage Rating:
600 VAC
Action:
SP
Actuator:
Momentary push buttons
Amperage Rating:
275m/550m/2.5 A
Contact Configuration:
2-NO/2-NC
Contact Rating:
60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
Enclosure:
Aluminum factory sealed dead-end splice box
Environmental Conditions:
Hazardous locations
Number Of Poles:
2
Size:
6-13/16" H x 3-11/16" W x 4-13/32" D
Standard:
UL, CSA
Sub Brand:
SEAL-X
Type:
Aluminum factory sealed box and cover with two push buttons
Voltage Rating:
600 VAC
