$621.18 / EA
Local stock: 0
Lead time:
over 7 working days

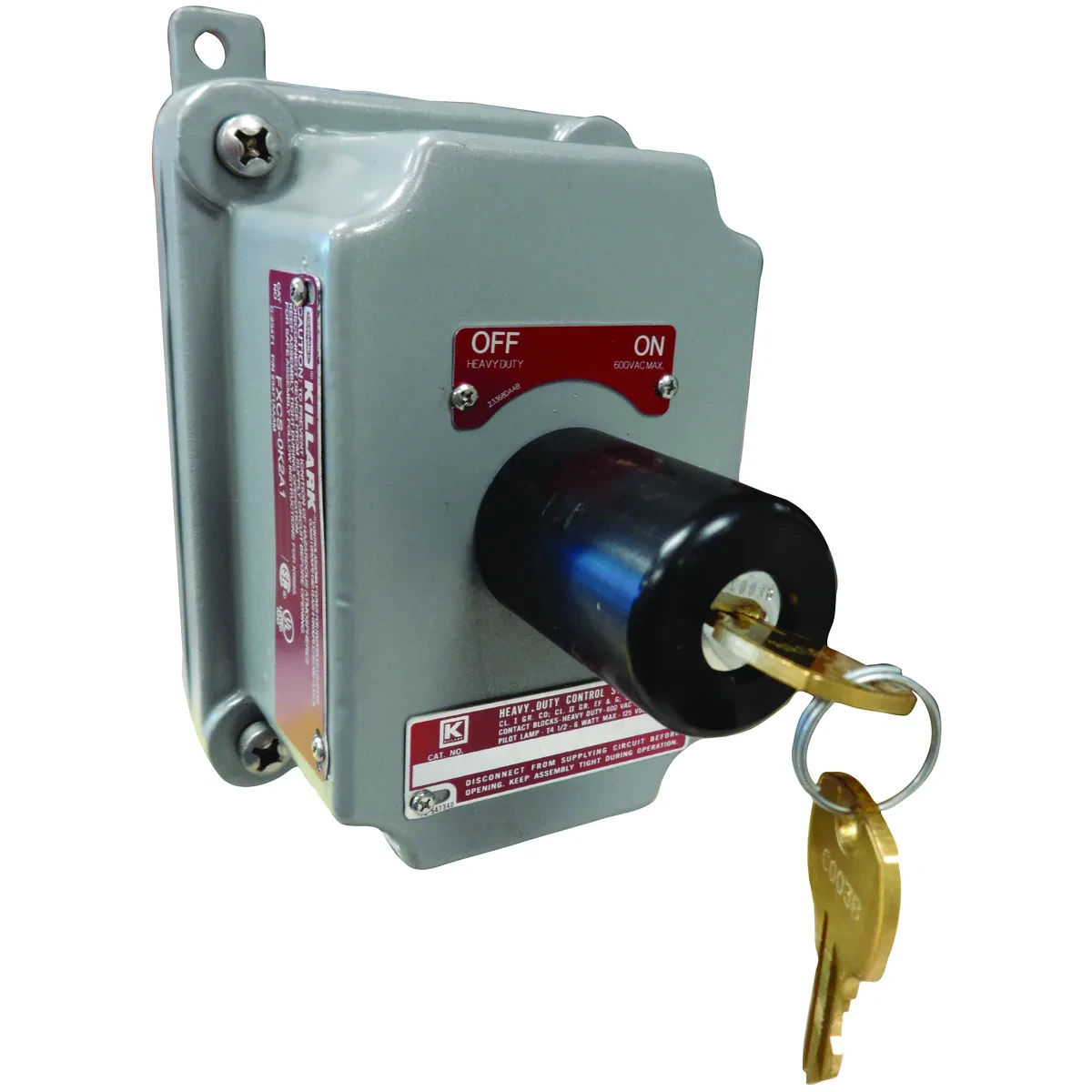

FXCS SERIES - ALUMINUM DEAD-END MAINTAINED CONTACT 2-POSITION KEYEDSELECTOR SWITCH CONTROL STATION - FACTORY SEALED - KEYED DIFFERENT WITHKEY REMOVAL IN BOTH POSITIONS - "OFF - ON"/BLANK NAMEPLATE - HUB SIZE1/2 INCH - 1NO/1NC CONTACT RATING
FXCS SERIES - ALUMINUM DEAD-END MAINTAINED CONTACT 2-POSITION KEYEDSELECTOR SWITCH CONTROL STATION - FACTORY SEALED - KEYED DIFFERENT WITHKEY REMOVAL IN BOTH POSITIONS - "OFF - ON"/BLANK NAMEPLATE - HUB SIZE1/2 INCH - 1NO/1NC CONTACT RATING
150
- UPC
- 783936200965
- UNSPSC
- 39122216
- Country of Origin
- US
- Action:
- SP
- Amperage Rating:
- 275m/550m/2.5 A
- Number Of Poles:
- 1
- Size:
- 6-13/16" H x 3-11/16" W x 4-13/32" D
- Type:
- Aluminum factory sealed box and cover with 2-position key selector switch
- Voltage Rating:
- 600 VAC
- Action:
- SP
- Actuator:
- 2-position key selector switch
- Amperage Rating:
- 275m/550m/2.5 A
- Contact Configuration:
- 1-NO/1-NC
- Contact Rating:
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;
- Enclosure:
- Aluminum factory sealed dead-end splice box
- Environmental Conditions:
- Hazardous locations
- Number Of Poles:
- 1
- Size:
- 6-13/16" H x 3-11/16" W x 4-13/32" D
- Standard:
- UL, CSA
- Sub Brand:
- SEAL-X
- Type:
- Aluminum factory sealed box and cover with 2-position key selector switch
- Voltage Rating:
- 600 VAC
