Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$67.14 / EA
Local stock: 0
Lead time:
over 7 working days

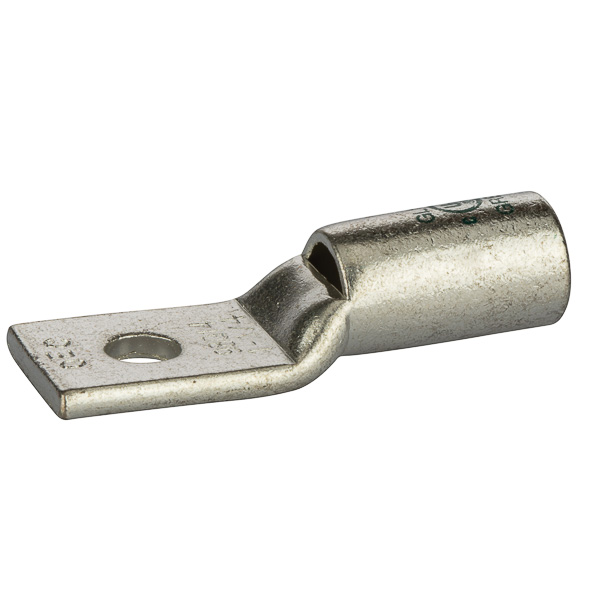

1 HoleShort Barrel Copper Compression Lug w/ PeepHole1 AWG-1/4" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
1 HoleShort Barrel Copper Compression Lug w/ PeepHole1 AWG-1/4" Bolt Short Barrel Copper Compression Lugs with PeepHoleis a type of copper compression connector that is produced from high conductivity copper tubing. They are tin-plated to provide corrosion resistance and are marked with die index and color coded for easy reference. Listed for 35KV maximum when properly installed.
150
- UPC
- 662381036421
- Color:
- Green
- Material:
- Copper
- Size:
- L=1.83 - W=.670 - OD=.470 - ID=.360
- Type:
- Short Barrel - One Hole
- Voltage Rating:
- 600 V
- Cable Size:
- # 1 AWG (STR)
- Color:
- Green
- Environmental Conditions:
- 90 C
- Material:
- Copper
- Mounting:
- 1/4 Mounting Hole
- Number Of Holes:
- 1
- Size:
- L=1.83 - W=.670 - OD=.470 - ID=.360
- Standard:
- UL486
- Stud Size:
- 0.25 in
- Sub Brand:
- Copper Compression
- Type:
- Short Barrel - One Hole
- Voltage Rating:
- 600 V
