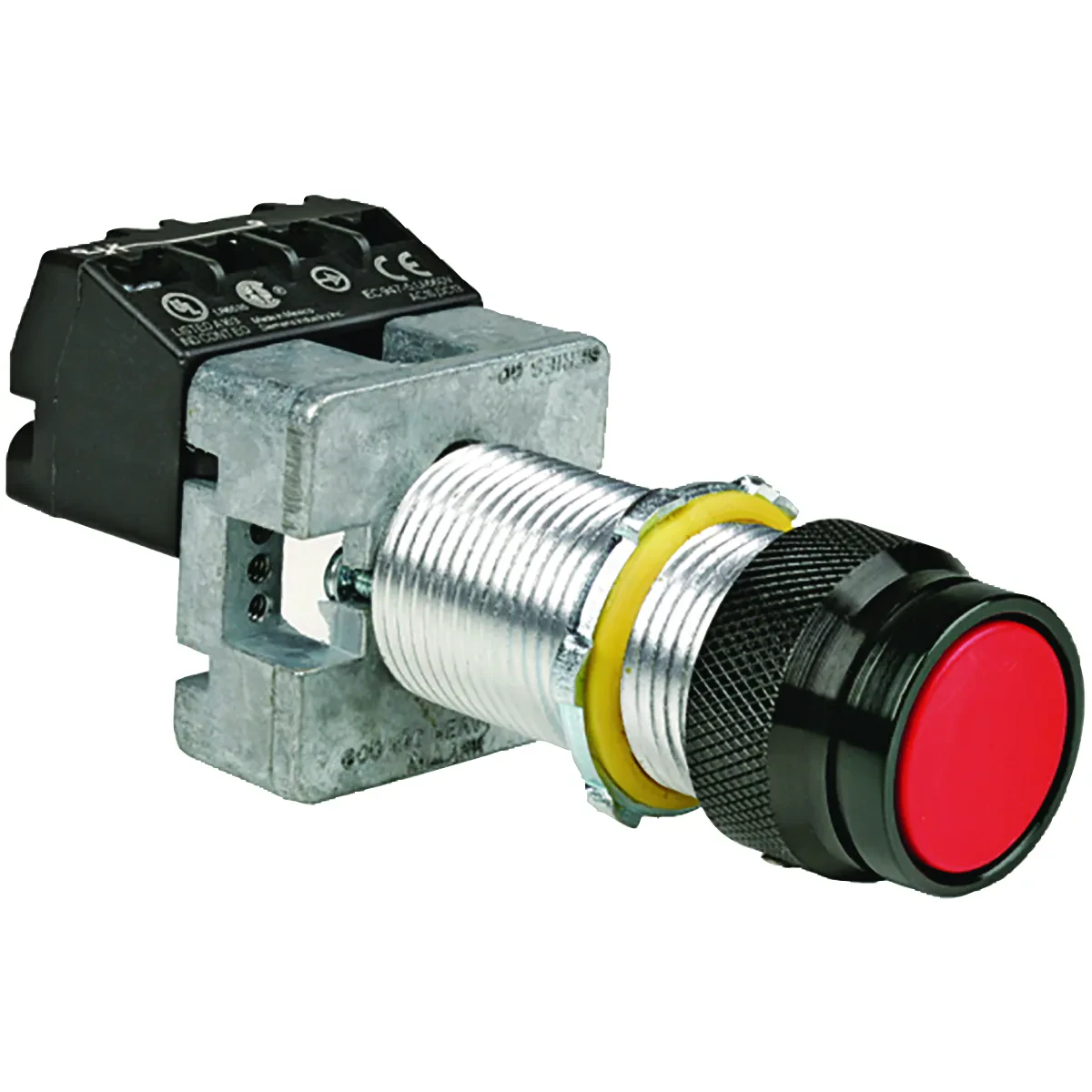

G SERIES - ALUMINUM LONG MOMENTARY CONTACT SINGLE PUSH BUTTON OPERATOR -RED BUTTON WITH
G SERIES - ALUMINUM LONG MOMENTARY CONTACT SINGLE PUSH BUTTON OPERATOR -RED BUTTON WITH

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

GO1-RX2B N34

$272.23 / EA

Available to order

Local stock: 0
Lead time: over 7 working days

G SERIES - ALUMINUM LONG MOMENTARY CONTACT SINGLE PUSH BUTTON OPERATOR -RED BUTTON WITH "START"/"STOP" NAMEPLATE - 1NC CONTACT RATING

G SERIES - ALUMINUM LONG MOMENTARY CONTACT SINGLE PUSH BUTTON OPERATOR -RED BUTTON WITH "START"/"STOP" NAMEPLATE - 1NC CONTACT RATING

150

UPC
783936221502
UNSPSC
39122216
Country of Origin
US
Action:
SPST
Number Of Poles:
1
Size:
1-1/4" H x 1-1/4" W x 4-5/16" L
Type:
Long style push button operator
Voltage Rating:
600 VAC
Action:
SPST
Actuator:
Momentary push button
Contact Configuration:
1-NC
Contact Rating:
60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
Environmental Conditions:
Hazardous locations
Number Of Poles:
1
Size:
1-1/4" H x 1-1/4" W x 4-5/16" L
Standard:
UL, CSA
Type:
Long style push button operator
Voltage Rating:
600 VAC
