$539.60 / EA
Available to order
Local stock: 0
Lead time:
over 7 working days

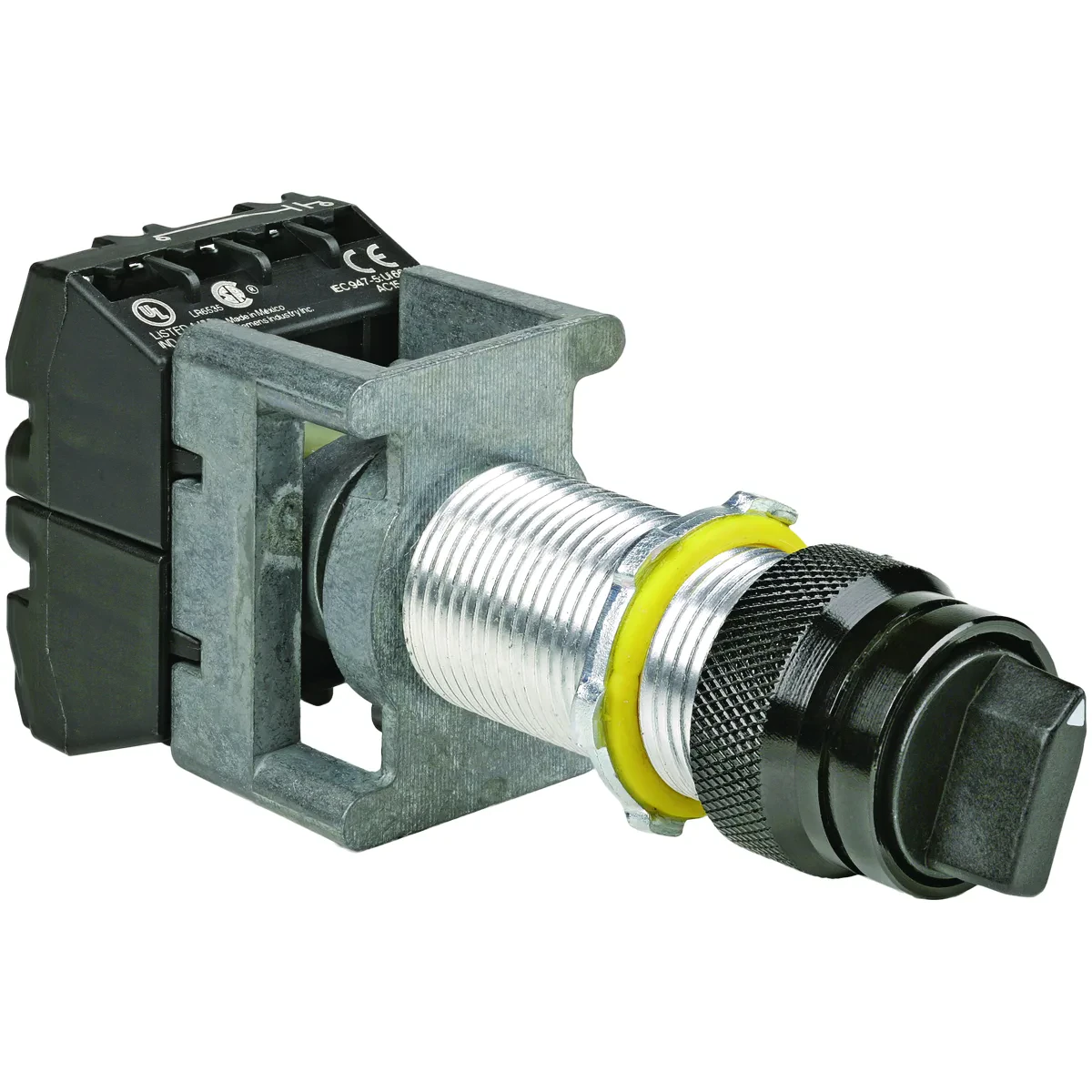

G SERIES - ALUMINUM SHORT MAINTAINED CONTACT 4-POSITION SELECTOR SWITCHOPERATOR - BLANK NAMEPLATE - 2NO/2NC CONTACT RATING
G SERIES - ALUMINUM SHORT MAINTAINED CONTACT 4-POSITION SELECTOR SWITCHOPERATOR - BLANK NAMEPLATE - 2NO/2NC CONTACT RATING
150
- UPC
- 783936223087
- UNSPSC
- 39122216
- Country of Origin
- US
- Action:
- SPST
- Number Of Poles:
- 1
- Size:
- 1-1/4" H x 1-1/4" W x 3-3/4" L
- Type:
- Short style 4-position selector switch operator
- Voltage Rating:
- 600 VAC
- Action:
- SPST
- Actuator:
- 4-position selector switch
- Contact Configuration:
- 2-NO/2-NC
- Contact Rating:
- 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.
- Environmental Conditions:
- Hazardous locations
- Number Of Poles:
- 1
- Size:
- 1-1/4" H x 1-1/4" W x 3-3/4" L
- Standard:
- UL, CSA
- Type:
- Short style 4-position selector switch operator
- Voltage Rating:
- 600 VAC
