Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$715.23 / EA
manufacturer discounts
learn about discounts
- $641.24 for $1,500.00+
- $616.58 for $2,500.00+
- $591.91 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

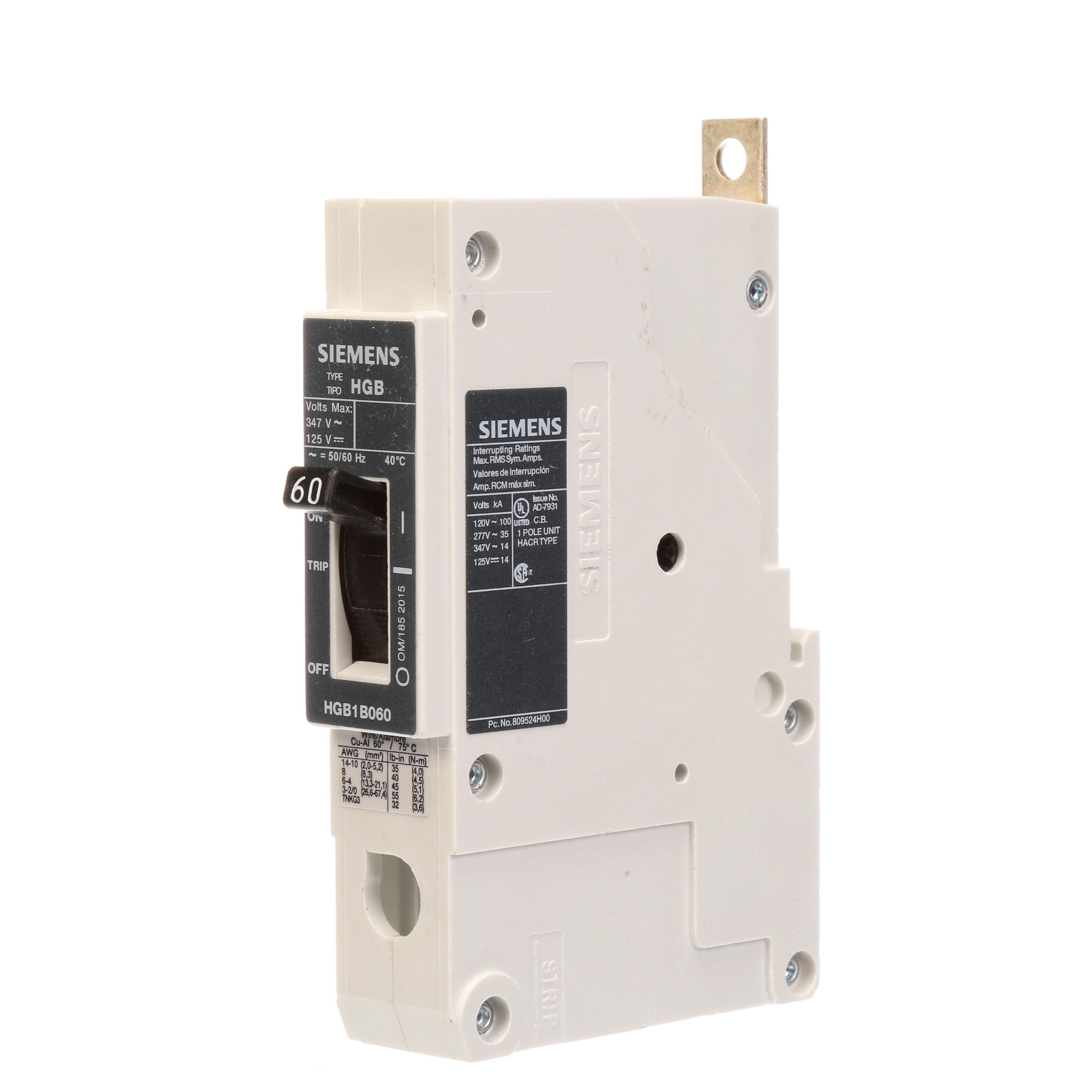

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED HGB FRAME WITH HIGH BREAKING CA PACITY. 60A 1-POLE (14KAICAT 347V) (35KAIC AT 277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 1 x 5.4 x 2.8.
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED HGB FRAME WITH HIGH BREAKING CA PACITY. 60A 1-POLE (14KAICAT 347V) (35KAIC AT 277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x H x D) IN 1 x 5.4 x 2.8.
150
- UPC
- 887621219543
- UNSPSC
- 39121601
- Country of Origin
- MX
- Number Of Poles:
- 1
- Continuous current / rated value:
- 60 A
- Depth [in]:
- 2.8 in
- Design of the overload release:
- THERMAL-MAGNETIC
- Design of the product:
- MOLDEDCASECIRCUITBREAKER
- Height [in]:
- 5.4 in
- Mounting type:
- PANELBOARDBUS
- Number Of Poles:
- 1
- Standard:
- UL/CSA/IEC/NOM
- Suitability for operation:
- ELECTRICALDISTRIBUTION
- Tripping characteristic class:
- HIGH
- Voltage / between phase and Ground (GND) / rated value:
- 347 V
- Width [in]:
- 1 in
