Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more
information.
$18,275.41 / EA
manufacturer discounts
learn about discounts
- $16,384.85 for $1,500.00+
- $15,754.66 for $2,500.00+
- $15,124.48 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH HIGH BREAKING CAPACITY. 350A 3-POLE (35KAIC AT 600V) (65KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL(CU) / 4/0AWG - 500KCMIL (AL). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH HIGH BREAKING CAPACITY. 350A 3-POLE (35KAIC AT 600V) (65KAIC AT 480V). INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA2J6500) WIRE RANGE 3/0AWG - 500KCMIL(CU) / 4/0AWG - 500KCMIL (AL). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
150
- UPC
- 783643008502
- UNSPSC
- 39121601
- Country of Origin
- MX
- Material:
- N/A
- Number Of Poles:
- 3
- Type:
- HJD6
- Voltage Rating:
- 600//500 VAC//VDC
- Actuator:
- Varying
- Auxiliary Contacts:
- N/A
- Connection:
- Line/Load lugs installed
- Enclosure:
- Varying
- Environmental Conditions:
- N/A
- Frame:
- JD
- Frequency Rating:
- 50/60 Hz
- Height:
- 15 in
- Interrupt Rating:
- 35KAIC
- Length:
- 7.000
- Load Rating:
- N/A
- Material:
- N/A
- Number Of Poles:
- 3
- Operating Temperature:
- 40C
- Standard:
- UL/HACR
- Sub Brand:
- Sentron
- Trip Range:
- 2000-4000
- Trip Type:
- Thermal-Magnetic
- Type:
- HJD6
- Voltage Rating:
- 600//500 VAC//VDC
- Width:
- 9.000
Recently Viewed
-
HJD63B350L
SIEMENS INDUSTRY, INC.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH HIGH BREAK...
See more details -
832X114RHCMSZJ
PECO FASTENERS & ELECTRICAL SUPPLIES

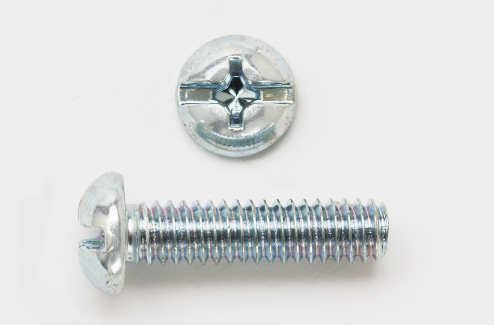

PECO FASTENERS 8/32 X 1 1/4 ROUND COMBO MS 100 PER JAR
