HMXD63B800H
SKU: HMXD63B800H
MPN: HMXD63B800H
Key specs
View all- Material
- N/A
- Number Of Poles
- 3
- Type
- HMXD6
- Voltage Rating
- 600 V
Description
Product overview

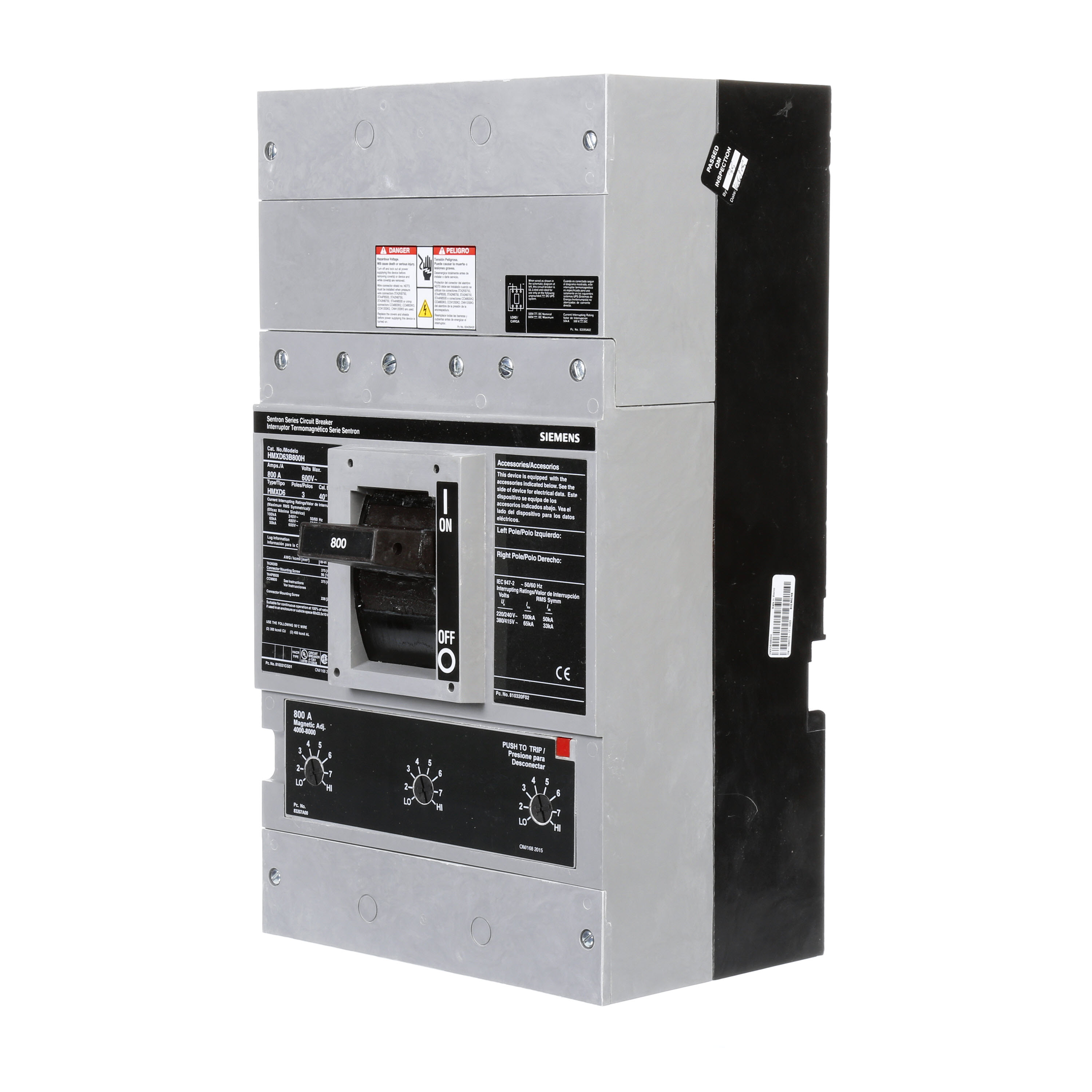

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER MD FRAME WITH HIGH BREAKING CAPACITY. 800A 3-POLE (50KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D)IN 9.00 x 16.0 x 6.00.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED 100 PERCENT RATED STANDARD 40 DEG C BREAKER MD FRAME WITH HIGH BREAKING CAPACITY. 800A 3-POLE (50KAIC AT 600V) (65KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D)IN 9.00 x 16.0 x 6.00.
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A HMXD63B800H BRKR HMD6 3P 600V 8
- Invoice description
- BRKR HMD6 3P 600V 800A FX 100
Specifications
- UPC
- 783643320277
- UNSPSC
- 39121601
- Country of Origin
- MX
- Material
- N/A
- Number Of Poles
- 3
- Type
- HMXD6
- Voltage Rating
- 600 V
- Actuator
- Varying
- Auxiliary Contacts
- N/A
- Connection
- N/A
- Enclosure
- Varying
- Environmental Conditions
- N/A
- Frame
- MD
- Frequency Rating
- 50/60 Hz
- Height
- 19 in
- Interrupt Rating
- 50KAIC
- Length
- 10 in
- Load Rating
- N/A
- Material
- N/A
- Number Of Poles
- 3
- Operating Temperature
- 40C
- Standard
- UL/HACR/100% Rated
- Sub Brand
- Sentron
- Trip Range
- 4000-8000
- Trip Type
- Thermal-Magnetic
- Type
- HMXD6
- Voltage Rating
- 600 V
- Width
- 12 in
