$8,692.24 / EA
manufacturer discounts
learn about discounts
- $7,793.05 for $1,500.00+
- $7,493.31 for $2,500.00+
- $7,193.58 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

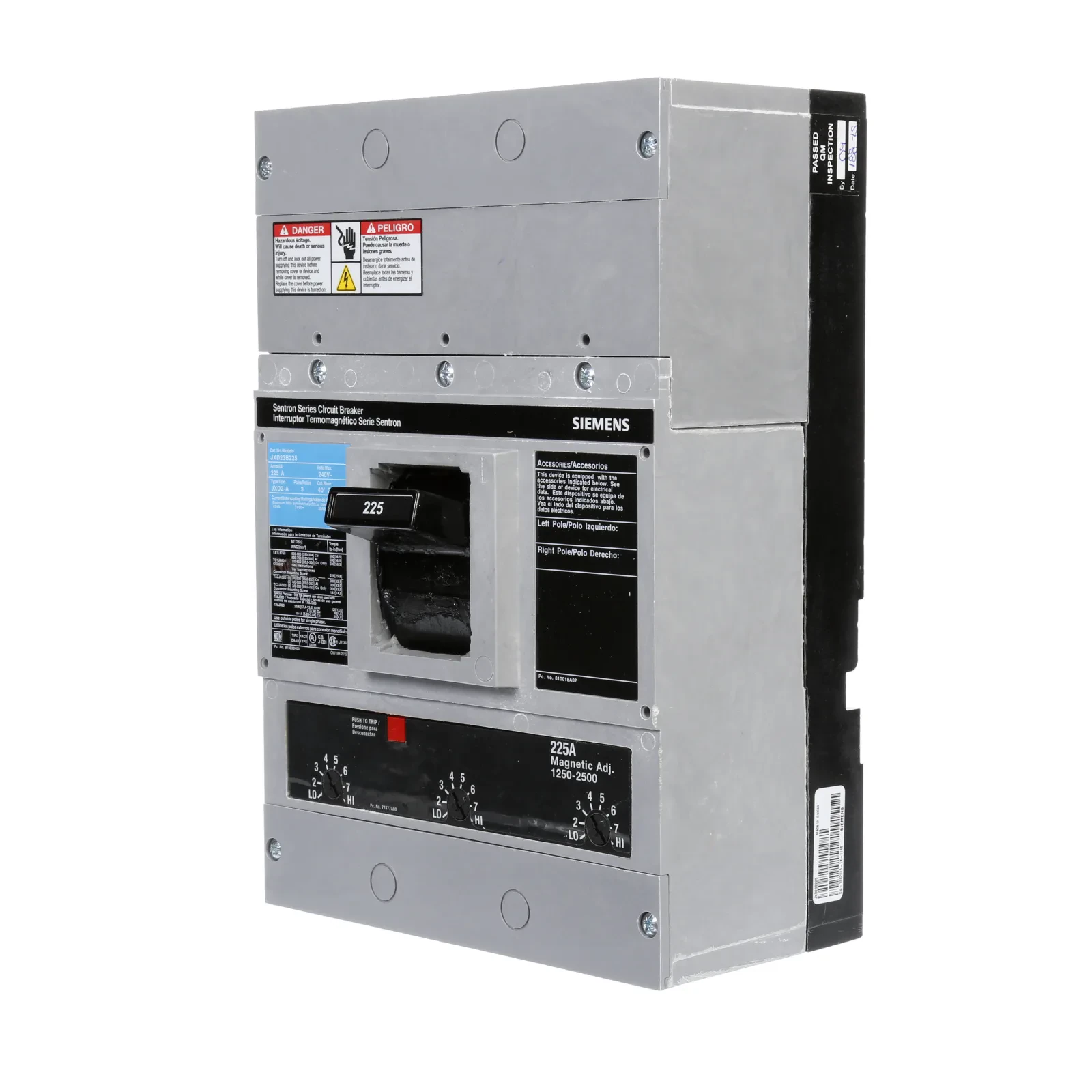

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 225A 3-POLE (65KAIC AT 240V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 225A 3-POLE (65KAIC AT 240V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.
150
- UPC
- 783643212930
- UNSPSC
- 39121601
- Country of Origin
- MX
- Material:
- N/A
- Number Of Poles:
- 3
- Type:
- JXD2
- Voltage Rating:
- 240//250 VAC//VDC
- Actuator:
- Varying
- Auxiliary Contacts:
- N/A
- Connection:
- N/A
- Enclosure:
- Varying
- Environmental Conditions:
- N/A
- Frame:
- JD
- Frequency Rating:
- 50/60 Hz
- Height:
- 14.5 in
- Interrupt Rating:
- 65KAIC
- Length:
- 6.600
- Load Rating:
- N/A
- Material:
- N/A
- Number Of Poles:
- 3
- Operating Temperature:
- 40C
- Standard:
- HACR
- Sub Brand:
- Sentron
- Trip Range:
- 1250-2500
- Trip Type:
- Thermal-Magnetic
- Type:
- JXD2
- Voltage Rating:
- 240//250 VAC//VDC
- Width:
- 8.700
