SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 350A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. ACCESSORIES INCLUDED (S11JLD6) / (A01JLDLV). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

JXD63B350ACSD

$13,310.87 / EA

manufacturer discounts
learn about discounts

  • $11,933.88 for $1,500.00+
  • $11,474.89 for $2,500.00+
  • $11,015.89 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 350A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. ACCESSORIES INCLUDED (S11JLD6) / (A01JLDLV). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD BREAKING CAPACITY. 350A 3-POLE (25KAIC AT 600V) (35KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES NO LUGS INSTALLED. ACCESSORIES INCLUDED (S11JLD6) / (A01JLDLV). DIMENSIONS (W x H x D) IN 7.50 x 11.0 x 4.00.

150

UPC
783643412644
UNSPSC
39121601
Country of Origin
MX
Material:
N/A
Number Of Poles:
3
Type:
JXD6
Voltage Rating:
600//250 VAC//VDC
Actuator:
A01JLDLV and S11JLD6 Accessories
Auxiliary Contacts:
N/A
Connection:
N/A
Enclosure:
Varying
Environmental Conditions:
N/A
Frame:
JD
Frequency Rating:
50/60 Hz
Height:
15 in
Interrupt Rating:
25KAIC
Length:
7.000
Load Rating:
N/A
Material:
N/A
Number Of Poles:
3
Operating Temperature:
40C
Standard:
UL/HACR
Sub Brand:
Sentron
Trip Range:
2000-4000
Trip Type:
Thermal-Magnetic
Type:
JXD6
Voltage Rating:
600//250 VAC//VDC
Width:
9.000

Recently Viewed

  • placeholder image

    JXD63B350ACSD

    SIEMENS INDUSTRY, INC.
    SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. ASSEMBLED STANDARD 40 DEG C BREAKER JD FRAME WITH STANDARD B...
    See more details
  • placeholder image

    LCE00C105240A

    SIEMENS INDUSTRY, INC.
    Electrically held lighting contactor, H2 Amp rating 30A (tungsten 20A), 1 N.C. / 5 N.O. poles, 230-240V 60Hz/220V 50Hz coil, Non-combination type, Enc...
    See more details
  • placeholder image

    S4HEL-90D

    LEVITON MANUFACTURING

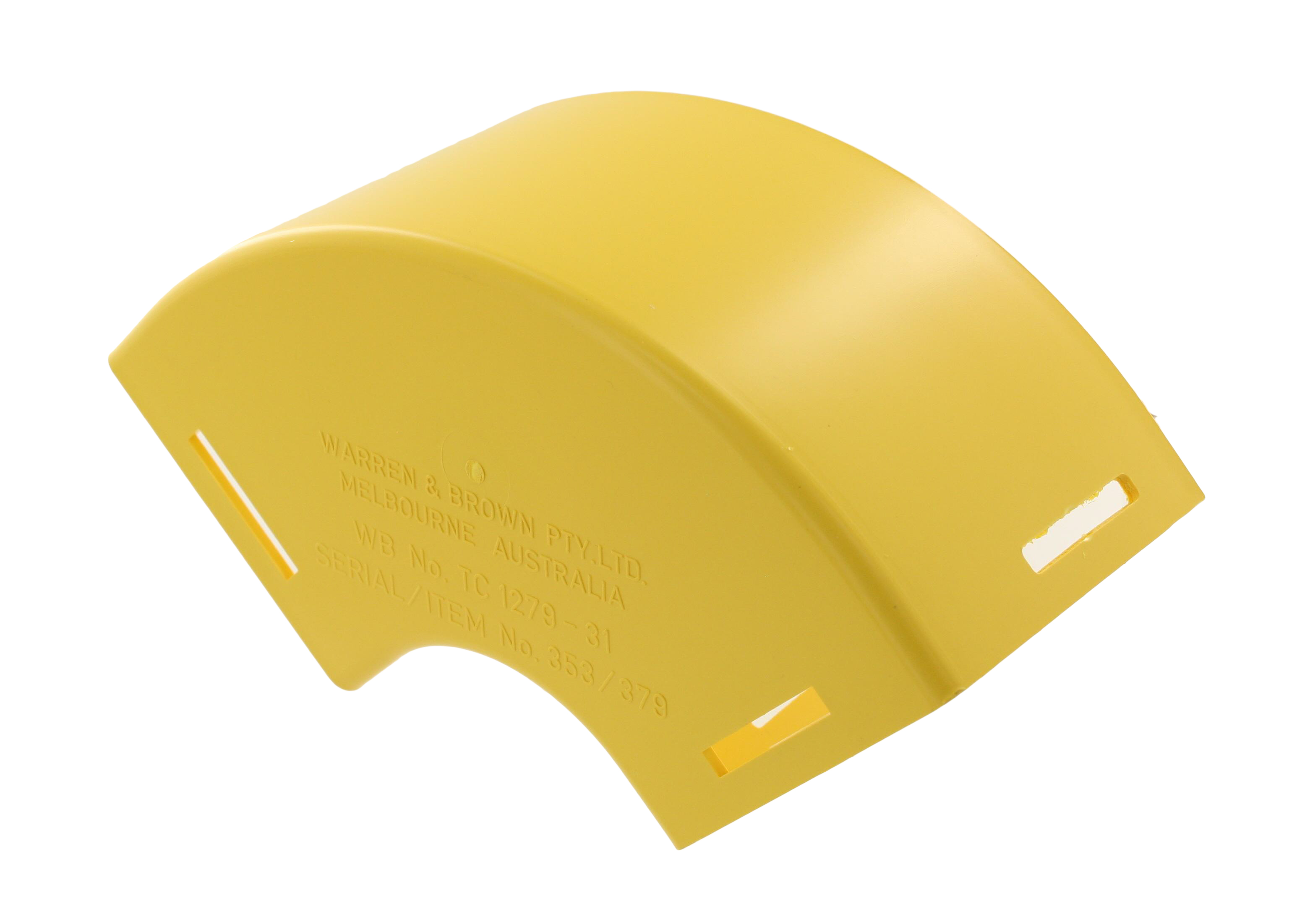

    4x4 Horizontal Elbow 90deg w/o Cover
