JXD63H400
SKU: JXD63H400
MPN: JXD63H400
Key specs
View all- Material
- N/A
- Number Of Poles
- 3
- Type
- JXD6
- Voltage Rating
- 600//250 VAC//VDC
Description
Product overview

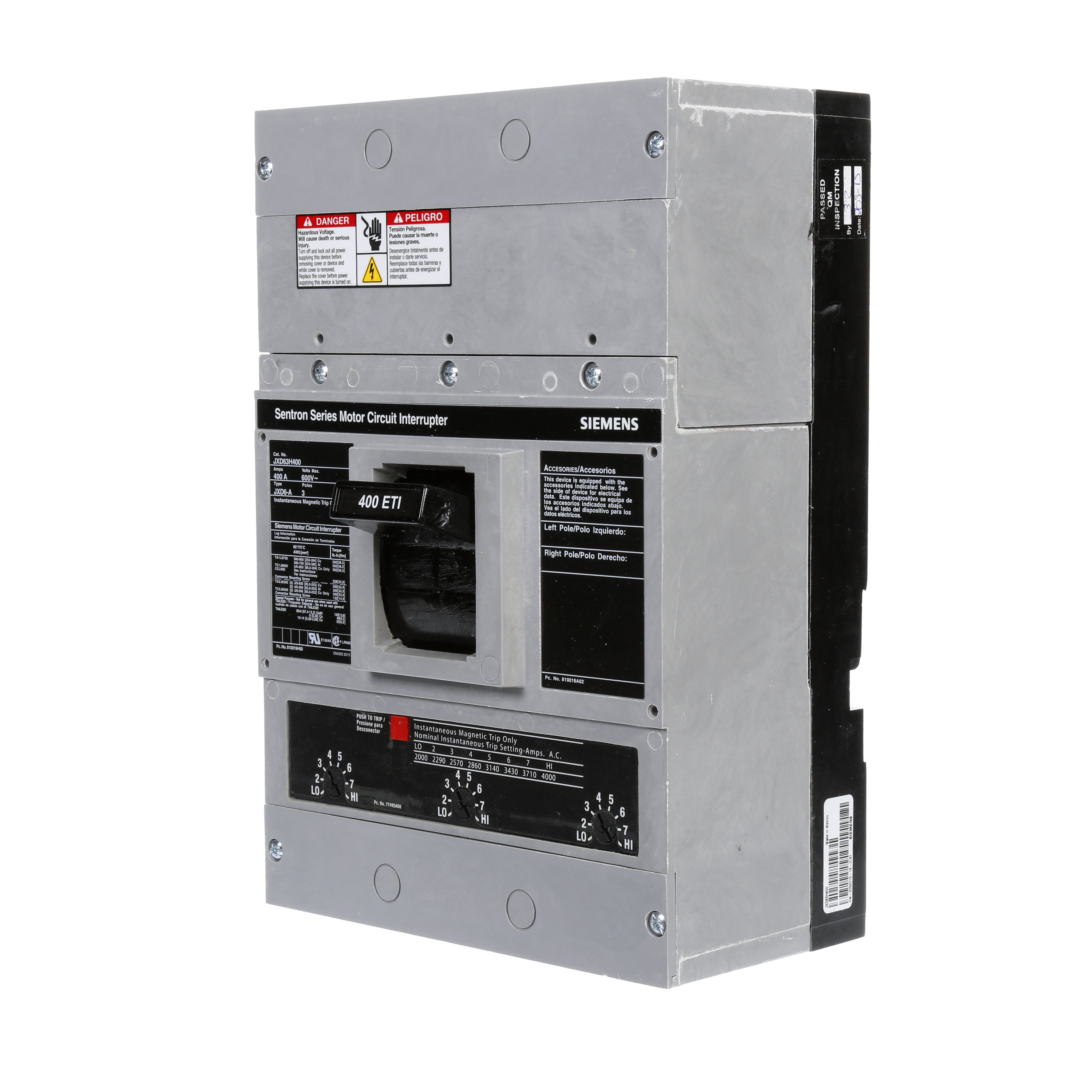

SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. HIGH INSTANTANEOUS RANGE ETI BREAKER JD FRAME WITHSTANDARD BREAKING CAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 /IEC 60947-2 STANDARDS. 400A 3-POLE BREAKER (25KAIC AT 600V) (35KAIC AT480V). SPECIAL FEATURES NO LUGS INSTALLED.DIMENSIONS (W x H x D) IN 7.5 x 11 x 4.___________________________________ _____________________________________
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH MAGNETIC TRIP ONLYUNIT. HIGH INSTANTANEOUS RANGE ETI BREAKER JD FRAME WITHSTANDARD BREAKING CAPACITY AND NON INTERCHANGEABLE TRIP. MEETS UL 489 /IEC 60947-2 STANDARDS. 400A 3-POLE BREAKER (25KAIC AT 600V) (35KAIC AT480V). SPECIAL FEATURES NO LUGS INSTALLED.DIMENSIONS (W x H x D) IN 7.5 x 11 x 4.___________________________________ _____________________________________
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A JXD63H400 BRKR JXD6 ETI-HI 3P 4
- Invoice description
- BRKR JXD6 ETI-HI 3P 400A
Specifications
- UPC
- 783643213630
- UNSPSC
- 39121601
- Country of Origin
- MX
- Material
- N/A
- Number Of Poles
- 3
- Type
- JXD6
- Voltage Rating
- 600//250 VAC//VDC
- Actuator
- Varying
- Auxiliary Contacts
- N/A
- Connection
- N/A
- Enclosure
- Varying
- Environmental Conditions
- N/A
- Frame
- JD
- Frequency Rating
- 50/60 Hz
- Height
- 14.6 in
- Interrupt Rating
- 25KAIC
- Length
- 6.700
- Load Rating
- N/A
- Material
- N/A
- Number Of Poles
- 3
- Operating Temperature
- 40C
- Standard
- UL/HACR
- Sub Brand
- Sentron
- Trip Range
- 2000-4000
- Trip Type
- Thermal-Magnetic
- Type
- JXD6
- Voltage Rating
- 600//250 VAC//VDC
- Width
- 8.700
