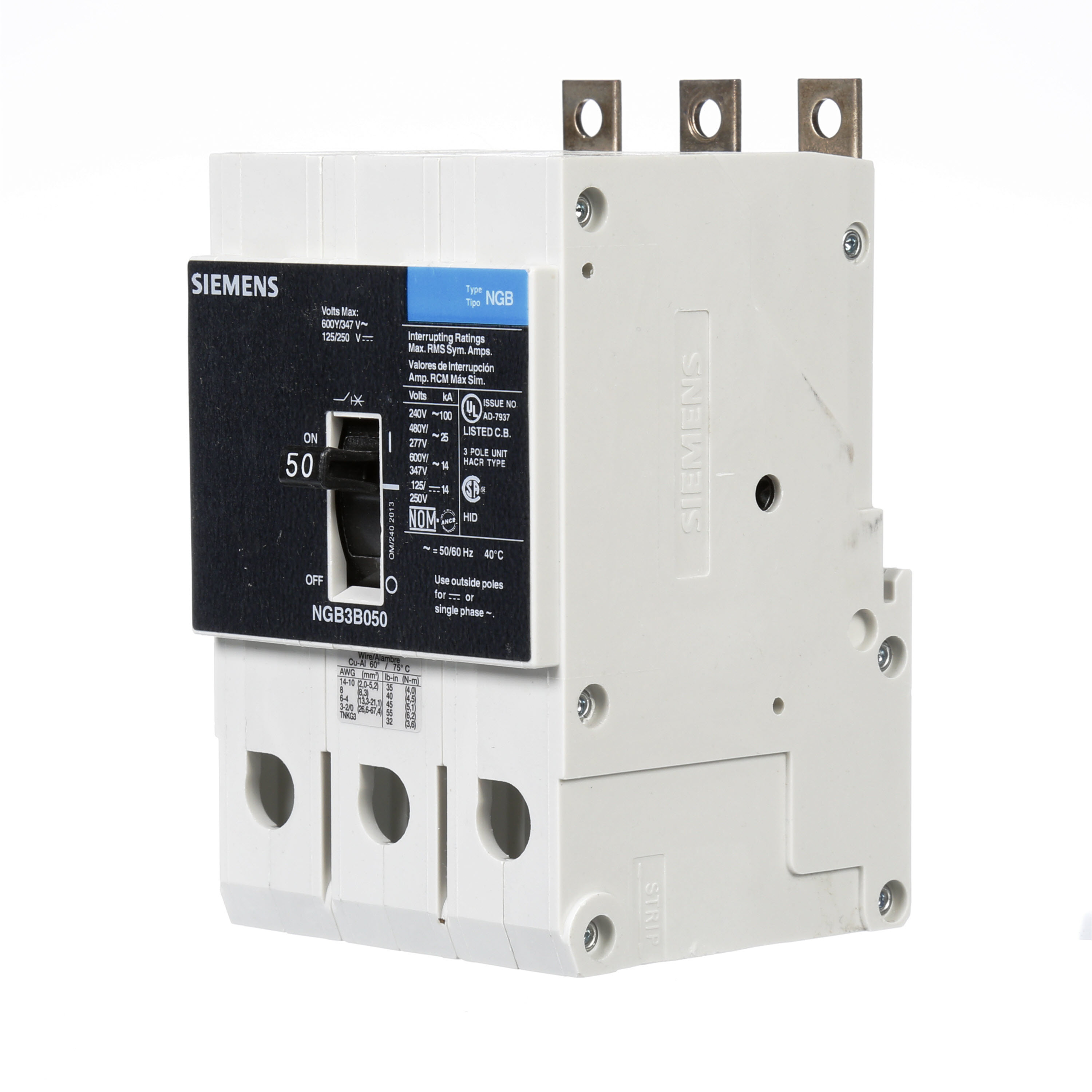

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 50A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, NO LUGS. DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

NGB3B050

$1,810.80 / EA

manufacturer discounts
learn about discounts

  • $1,623.48 for $1,500.00+
  • $1,561.04 for $2,500.00+
  • $1,498.60 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 50A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, NO LUGS. DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 50A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD, NO LUGS. DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.

150

UPC
783643553460
UNSPSC
39121601
Country of Origin
MX
Number Of Poles:
3
Continuous current / rated value:
50 A
Design of the overload release:
THERMAL-MAGNETIC
Design of the product:
MOLDEDCASECIRCUITBREAKER
Height [in]:
5.4 in
Mounting type:
PANELBOARDBUS
Number Of Poles:
3
Standard:
UL/CSA/IEC/NOM
Suitability for operation:
ELECTRICALDISTRIBUTION
Tripping characteristic class:
STANDARD
Voltage / between phase and Ground (GND) / rated value:
347 V
Voltage / between phase and phase / rated value:
600 V
Width [in]:
3 in
