$4,331.99 / EA
manufacturer discounts
learn about discounts
- $3,883.85 for $1,500.00+
- $3,734.48 for $2,500.00+
- $3,585.10 for $3,500.00+
Local stock: 0
Lead time:
over 7 working days

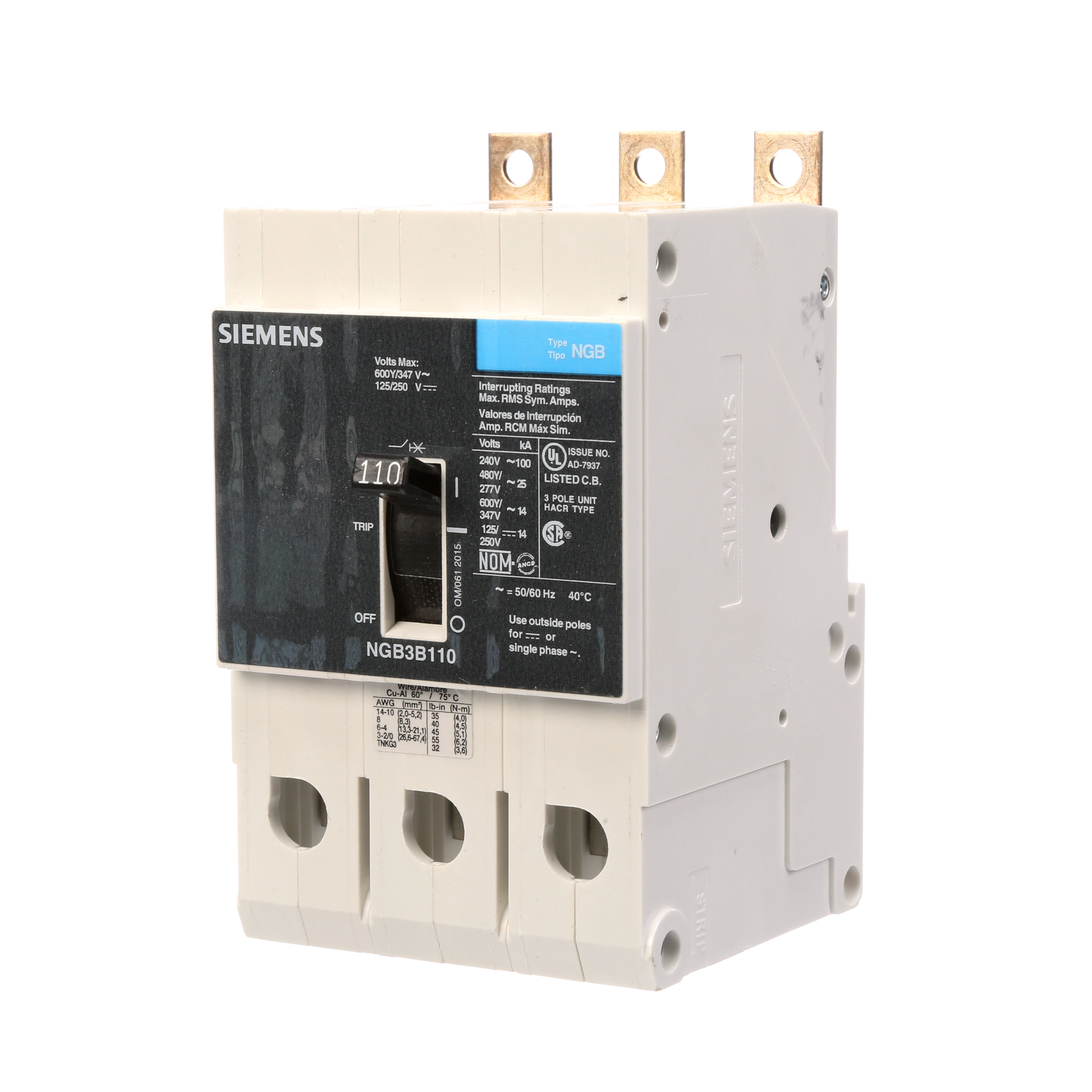

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 110A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x Hx D) IN 3 x 5.4 x 2.8.
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 110A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,LOAD SIDE LUGS ONLY (TC1GG20) WIRE RANGE 8 - 1/0 AWS (CU/AL). DIMENSIONS (W x Hx D) IN 3 x 5.4 x 2.8.
150
- UPC
- 783643414389
- UNSPSC
- 39121601
- Country of Origin
- MX
- Number Of Poles:
- 3
- Continuous current / rated value:
- 110 A
- Design of the overload release:
- THERMAL-MAGNETIC
- Design of the product:
- MOLDEDCASECIRCUITBREAKER
- Height [in]:
- 5.4 in
- Mounting type:
- PANELBOARDBUS
- Number Of Poles:
- 3
- Standard:
- UL/CSA/IEC/NOM
- Suitability for operation:
- ELECTRICALDISTRIBUTION
- Tripping characteristic class:
- STANDARD
- Voltage / between phase and Ground (GND) / rated value:
- 347 V
- Voltage / between phase and phase / rated value:
- 600 V
- Width [in]:
- 3 in
