NGB3B125
SKU: NGB3B125
MPN: NGB3B125
Key specs
View all- Number Of Poles
- 3
Description
Product overview

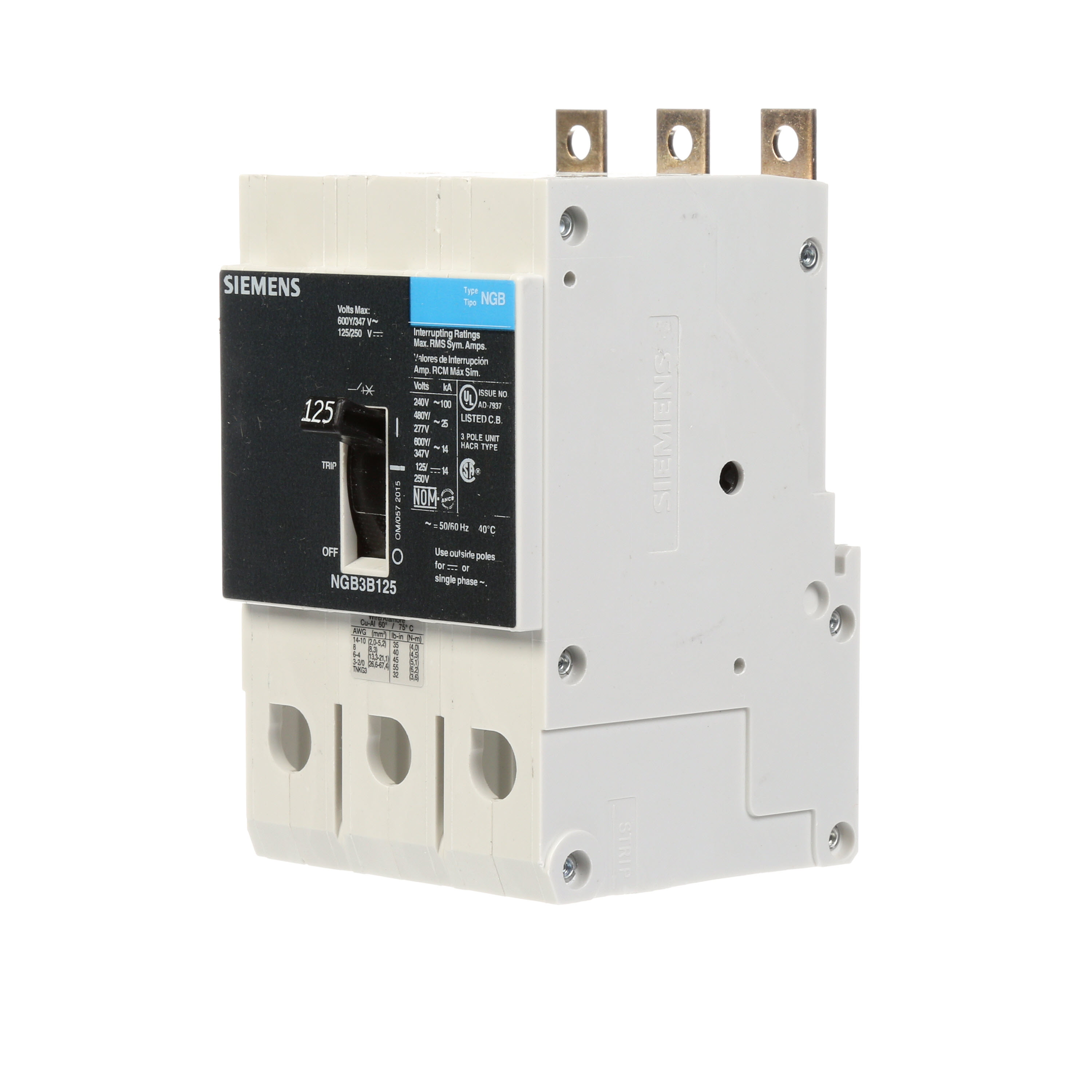

SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 125A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,NO LUGS. DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
SIEMENS LOW VOLTAGE PANELBOARD MOUNT G FRAME CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP. UL LISTED NGB FRAME WITH STANDARD BREAKING CAPACITY. 125A 3-POLE (14KAIC AT 600Y/347V) (25KAIC AT 480Y/277V). SPECIAL FEATURES MOUNTS ON PANELBOARD,NO LUGS. DIMENSIONS (W x H x D) IN 3 x 5.4 x 2.8.
Manufacturer highlights
Additional manufacturer notes
- Short name
- S-A
- Feed description
- S-A NGB3B125 BRKR NGB 125A 3P 480Y
- Invoice description
- BRKR NGB 125A 3P 480Y 25K NO LUG
Specifications
- UPC
- 783643553538
- UNSPSC
- 39121601
- Country of Origin
- MX
- Number Of Poles
- 3
- Continuous current / rated value
- 125 A
- Design of the overload release
- THERMAL-MAGNETIC
- Design of the product
- MOLDEDCASECIRCUITBREAKER
- Height [in]
- 5.4 in
- Mounting type
- PANELBOARDBUS
- Number Of Poles
- 3
- Standard
- UL/CSA/IEC/NOM
- Suitability for operation
- ELECTRICALDISTRIBUTION
- Tripping characteristic class
- STANDARD
- Voltage / between phase and Ground (GND) / rated value
- 347 V
- Voltage / between phase and phase / rated value
- 600 V
- Width [in]
- 3 in
