$73.21 / EA
manufacturer discounts
learn about discounts
- $124.51 for $1,500.00+
- $119.73 for $2,500.00+
- $114.94 for $3,500.00+

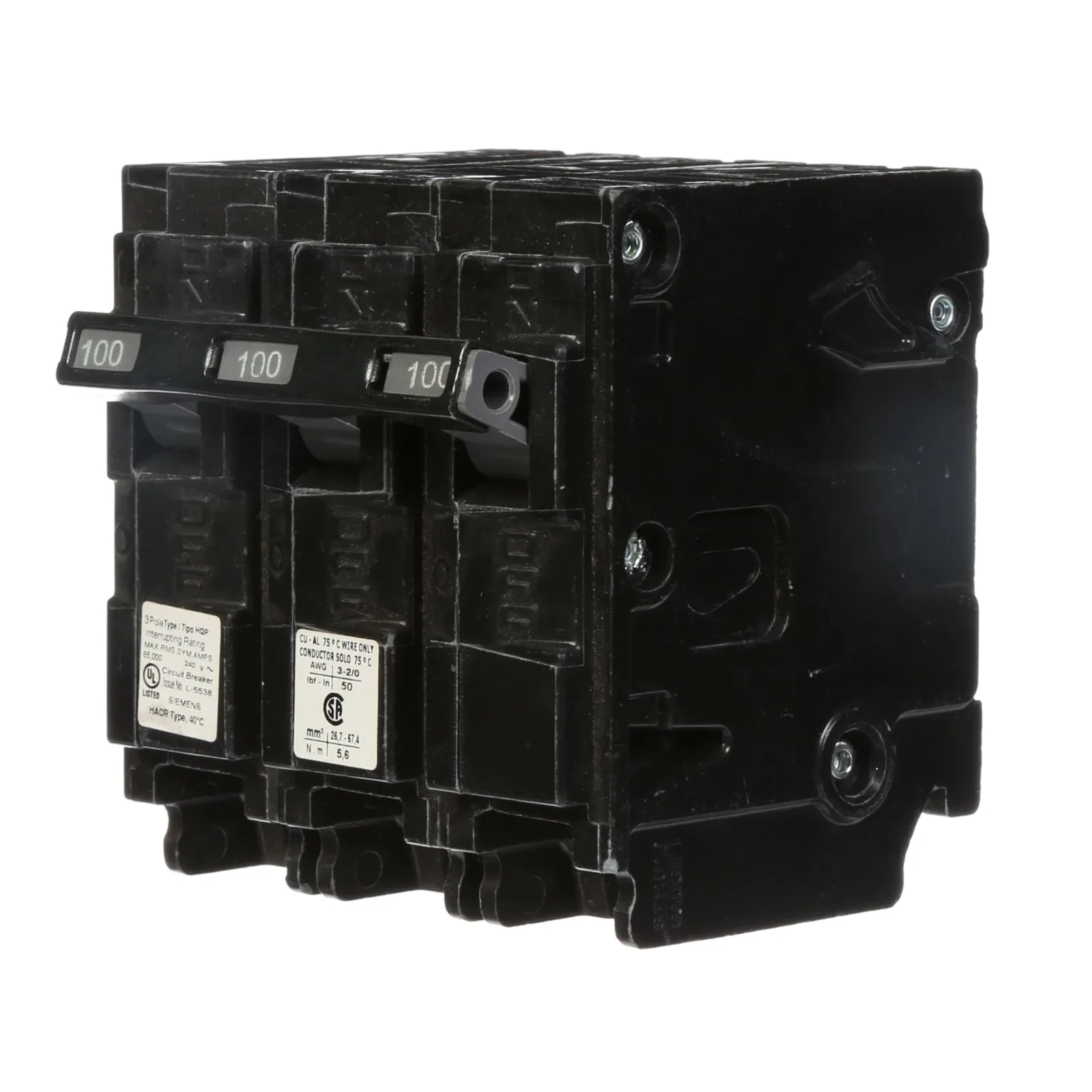

Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 3-Pole, 240VAC are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Application Electrical Distribution Standard UL 489 Voltage Rating 240V Amperage Rating 100A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 3P
Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 3-Pole, 240VAC are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Application Electrical Distribution Standard UL 489 Voltage Rating 240V Amperage Rating 100A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 3P
150
- UPC
- 783643148475
- UNSPSC
- 39121601
- Country of Origin
- MX
- Number Of Poles:
- 3
- Type:
- QP
- Conductor Size:
- 4-1/0AWG(CU)/2-1/0AWG(AL)
- Connection:
- PLUG-IN
- Continuous current / rated value:
- 100 A
- Frame:
- QP(125A)
- Height [in]:
- 3.12 in
- Length:
- 3 in
- Number Of Poles:
- 3
- Standard:
- ULLISTED/CSA/NOMCERTIFIED
- Supply voltage frequency / rated value / 50/60 Hz:
- TRUE
- Trip Type:
- THERMAL-MAGNETIC
- Type:
- QP
- Type of mounting panel:
- LOADCENTER
- Voltage / between phase and phase / rated value:
- 240 V
- Width:
- 3 in
UBIZ0215
$86.11 /ea
Zinsco circuit breaker by Connecticut Electric Type UBIZ. For use in Zinsco load centers that accept type RC circuit breakers. ETL Listed. 10,000 AIC 2-pole 15A
| Attributed Data | Included |
|---|---|
| Actuator | Handle Yes |
| Connection | Push On Yes |
| Enclosure | Appropriate OEM Panelboard i.e. Zinsco Yes |
| Environmental Conditions | Determined by panel for product Yes |
| Load Rating | 1 Yes |
| Material | DMC Yes |
| Number Of Poles | 2 Yes |
| Phase | 1 Yes |
| Standard | ETL Listed Yes |
| Sub Brand | UBIZ Yes |
| Trip Range | None Yes |
| Trip Type | Thermal Yes |
| Type | UBIZ TYPE RC THIN REPLACEMENT Yes |
UBIZ0220
$84.41 /ea
Zinsco circuit breaker by Connecticut Electric Type UBIZ. For use in Zinsco load centers that accept type RC circuit breakers. ETL Listed. 10,000 AIC 2-pole 20A
| Attributed Data | Included |
|---|---|
| Actuator | Handle Yes |
| Connection | Push On Yes |
| Enclosure | Appropriate OEM Panelboard i.e. Zinsco Yes |
| Environmental Conditions | Determined by panel for product Yes |
| Load Rating | 1 Yes |
| Material | DMC Yes |
| Number Of Poles | 2 Yes |
| Phase | 1 Yes |
| Standard | ETL Listed Yes |
| Sub Brand | UBIZ Yes |
| Trip Range | None Yes |
| Trip Type | Thermal Yes |
| Type | UBIZ TYPE RC THIN REPLACEMENT Yes |
UBIZ0225
$84.41 /ea
Zinsco circuit breaker by Connecticut Electric Type UBIZ. For use in Zinsco load centers that accept type RC circuit breakers. ETL Listed. 10,000 AIC 2-pole 25A
| Attributed Data | Included |
|---|---|
| Actuator | Handle Yes |
| Connection | Push On Yes |
| Enclosure | Appropriate OEM Panelboard i.e. Zinsco Yes |
| Environmental Conditions | Determined by panel for product Yes |
| Load Rating | 1 Yes |
| Material | DMC Yes |
| Number Of Poles | 2 Yes |
| Phase | 1 Yes |
| Standard | ETL Listed Yes |
| Sub Brand | UBIZ Yes |
| Trip Range | None Yes |
| Trip Type | Thermal Yes |
| Type | UBIZ TYPE RC THIN REPLACEMENT Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
UBIZ0215
Zinsco circuit breaker by Connecticut Electric Type UBIZ. For use in Zinsco load centers that accept type RC circuit breakers. ETL Listed. 10,000 AIC 2-pole 15A
$86.11 / EA
|
UBIZ0220
Zinsco circuit breaker by Connecticut Electric Type UBIZ. For use in Zinsco load centers that accept type RC circuit breakers. ETL Listed. 10,000 AIC 2-pole 20A
$84.41 / EA
|
UBIZ0225
Zinsco circuit breaker by Connecticut Electric Type UBIZ. For use in Zinsco load centers that accept type RC circuit breakers. ETL Listed. 10,000 AIC 2-pole 25A
$84.41 / EA
|
|
| Attributed Data | |||
| Actuator | Handle Handle | ||
| Amperage Rating | 15 AMP 15 AMP | 20 AMP 20 AMP | 25 AMP 25 AMP |
| Connection | Push On Push On | ||
| Enclosure | Appropriate OEM Panelboard i.e. Zinsco Appropriate OEM Panelboard i.e. Zinsco | ||
| Environmental Conditions | Determined by panel for product Determined by panel for product | ||
| Frequency Rating | 50/60 Hz 50/60 Hz | ||
| Height | 2.53 in 2.53 in | ||
| Interrupt Rating | 10000 AIC 10000 AIC | ||
| Length | 4.81 in 4.81 in | ||
| Load Rating | 1 1 | ||
| Material | DMC DMC | ||
| Number Of Poles | 2 2 | ||
| Operating Temperature | 40 Celsius 40 Celsius | ||
| Phase | 1 1 | ||
| Standard | ETL Listed ETL Listed | ||
| Sub Brand | UBIZ UBIZ | ||
| Trip Range | None None | ||
| Trip Type | Thermal Thermal | ||
| Type | UBIZ TYPE RC THIN REPLACEMENT UBIZ TYPE RC THIN REPLACEMENT | ||
| Voltage Rating | 120/240 VAC 120/240 VAC | ||
| Width | 0.75 in 0.75 in | ||
