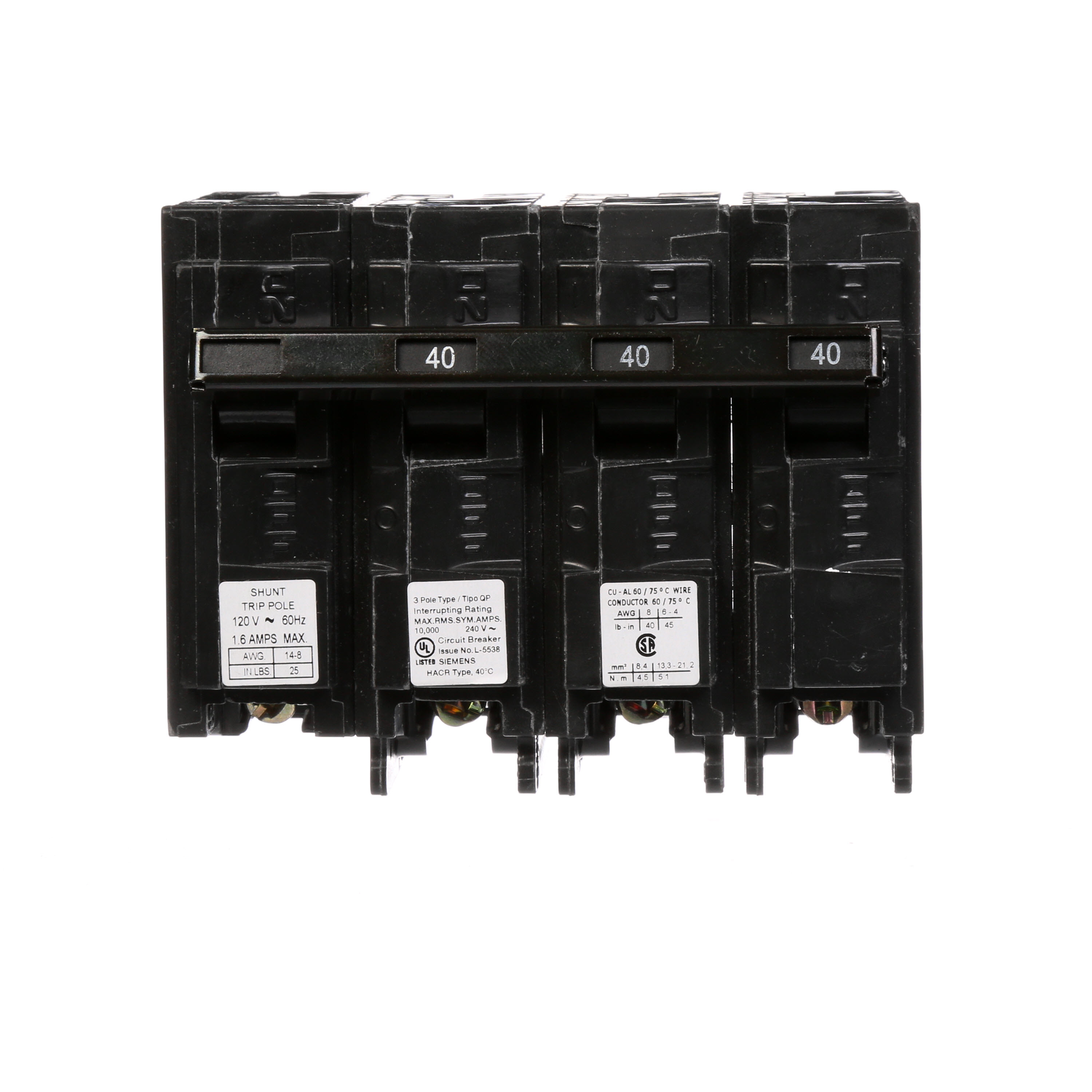

Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 3-Pole, 240VAC are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Special Features Shunt Trip 120V Application Electrical Distribution Standard UL 489 Voltage Rating 120/240VAmperage Rating 40A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 3P
Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 3-Pole, 240VAC are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Special Features Shunt Trip 120V Application Electrical Distribution Standard UL 489 Voltage Rating 120/240VAmperage Rating 40A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 3P

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

Q34000S01

$240.35 / EA

manufacturer discounts
learn about discounts

  • $215.49 for $1,500.00+
  • $207.20 for $2,500.00+
  • $198.91 for $3,500.00+
Available to order

Local stock: 0
Lead time: over 7 working days

Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 3-Pole, 240VAC are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Special Features Shunt Trip 120V Application Electrical Distribution Standard UL 489 Voltage Rating 120/240VAmperage Rating 40A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 3P

Siemens Low Voltage Residential Circuit Breakers Miniature Thermal Mag Circuit Breakers - Type QP/MP, 3-Pole, 240VAC are Circuit Protection Load Center Mains, Feeders, and Miniature Circuit Breakers. Type QP/MP Special Features Shunt Trip 120V Application Electrical Distribution Standard UL 489 Voltage Rating 120/240VAmperage Rating 40A Trip Range Thermal Magnetic Interrupt Rating 10 AIC Number Of Poles 3P

150

UPC
783643237636
UNSPSC
39121601
Country of Origin
MX
Number Of Poles:
3
Type:
QP
Conductor Size:
8-6AWG(CU)/8-4AWG(AL)
Connection:
PLUG-IN
Continuous current / rated value:
40 A
Frame:
QP(125A)
Height [in]:
2.87 in
Length:
3 in
Number Of Poles:
3
Standard:
ULLISTED/CSA/NOMCERTIFIED
Supply voltage frequency / rated value / 50/60 Hz:
TRUE
Trip Type:
THERMAL-MAGNETIC
Type:
QP
Type of mounting panel:
LOADCENTER
Voltage / between phase and phase / rated value:
240 V
Width:
4 in
