$1,332.86 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

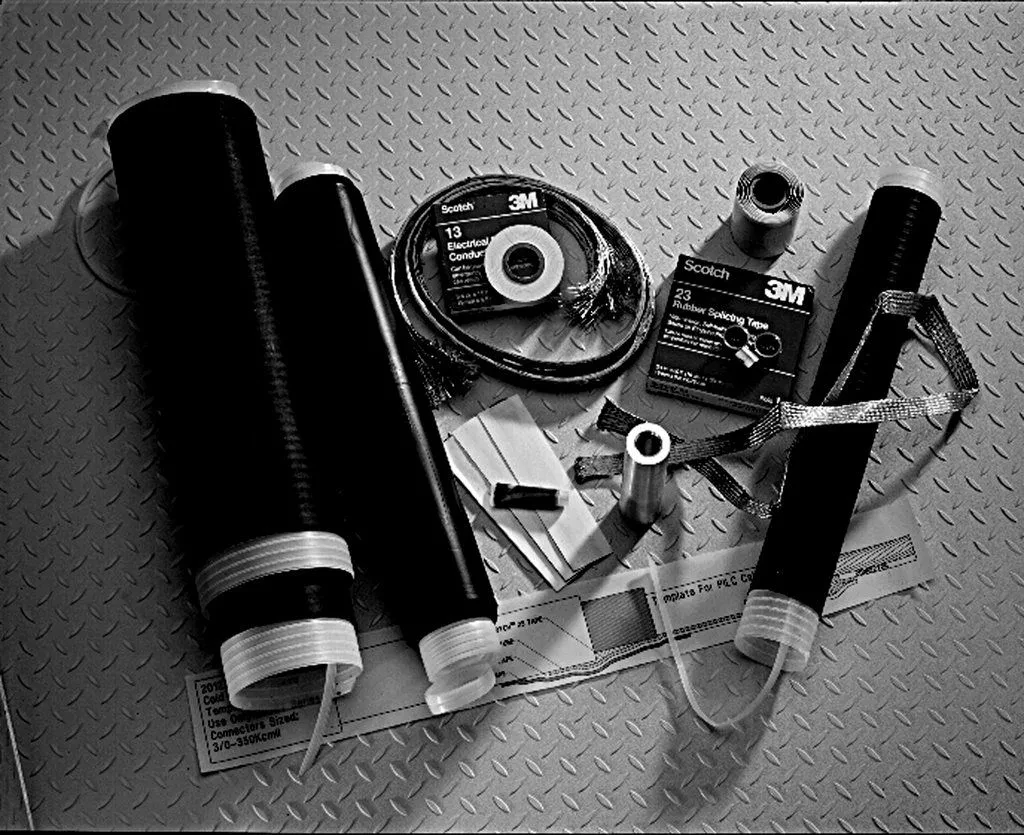

The 3M™ Cold Shrink Splice Kit QS-2000T Series allows you to splice either single-conductor PILC cable to single-conductor PILC cable, or singleconductor PILC cable to single-conductor Poly/EPR cable. Because of the design of the splice, size transitions can also be accommodated rather easily. The 3M™ Cold Shrink Splice Kit QS-2000T Series meets the requirements of IEEE 404.
The 3M™ Cold Shrink Splice Kit QS-2000T Series allows you to splice either single-conductor PILC cable to single-conductor PILC cable, or singleconductor PILC cable to single-conductor Poly/EPR cable. Because of the design of the splice, size transitions can also be accommodated rather easily. The 3M™ Cold Shrink Splice Kit QS-2000T Series meets the requirements of IEEE 404.
This kit allows you to splice either single conductor PILC cable to single conductor PILC cable, or...150
This kit allows you to splice either single conductor PILC cable to single conductor PILC cable, or single conductor PILC cable to single conductor Poly/EPR cable. Because of the design of the splice, size transitions can also be accommodated rather easily. Each kit makes one single conductor splice.Use 3M™ Scotchlok™ Connectors 2000T Series with these splice kits. Each kit contains sufficient quantities of material to make one splice.Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
- Oil stop tubes provide rejacketing and moisture-seal protection to the splice
- Resists water and eliminate the need of sweat lead
- Designed for PILC transition to the poly/EPR cable
- Rated for 15 kV applications
- Oil stop tubes provide rejacketing and moisture-seal protection to the splice
- Resists water and eliminate the need of sweat lead
- Designed for PILC transition to the poly/EPR cable
- Rated for 15 kV applications
- UPC
- 054007505464
- UNSPSC
- 26121649
- Country of Origin
- ITA
- Type:
- Inline PILC Transition
- Voltage Rating:
- 15,000 V
- Cable Type:
- PILC
- Conductor Size:
- "1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 3/0 AWG, 4 AWG"
- Type:
- Inline PILC Transition
- Voltage Rating:
- 15,000 V
5535A-1/0-CU
$1,506.72 /ea
3M™ Cold Shrink QS-III Inline Shielded Cable Splice Kits 5535A and 5536A Series are inline splices for joining 35 kV tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. The cold shrink splice body is a one-piece molded design made of specially formulated silicone rubbers, while the jacketing is made of EPDM rubber for its special physical properties.
| Attributed Data | Included |
|---|---|
| Cable Type | Longitudinally Corrugated (LC); Tape Shield; UniShield(R); Wire Shield Yes |
| Conductor Material | Copper Yes |
| Conductor Size | 1/0 AWG Yes |
| Connector | 10005 Yes |
| Product Technology | Cold Shrink Yes |
5411A-CI-1/0
$116.71 /ea
3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is a 1 piece inline splice designed to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables. The cold shrink jacket has peroxide cured EPDM rubber construction to ensure moisture resistance and durability.
| Attributed Data | Included |
|---|---|
| Cable Type | Concentric Neutral (CN); Jacketed Concentric Neutral (JCN) Yes |
| Connector | CI-1/0 Yes |
| Insulation OD Range | 0.775 - 0.90 Inch Yes |
| Product Technology | Molded Rubber Yes |
| Stranded Conductor Sizes | 1/0 AWG (220 mil) Yes |
| Type | Inline Yes |
5514A-4/0-AL
$769.59 /ea
The 3M™ Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design sized to fit Type MV-90 or Type MV-105 cables with copper, or aluminum conductor sizes ranging from 2 AWG-1000 kcmil (35-500 mm²).
| Attributed Data | Included |
|---|---|
| Cable Type | Longitudinally Corrugated (LC); Tape Shield; UniShield(R); Wire Shield Yes |
| Conductor Material | Aluminum; Copper Yes |
| Conductor Size | 4/0 AWG Yes |
| Connector | 20008 Yes |
| Product Technology | Cold Shrink Yes |
| Type | Inline Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
5535A-1/0-CU
3M™ Cold Shrink QS-III Inline Shielded Cable Splice Kits 5535A and 5536A Series are inline splices for joining 35 kV tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. The cold shrink splice body is a one-pi...
$1,506.72 / EA
|
5411A-CI-1/0
3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is a 1 piece inline splice designed to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables. The cold shrink jacket has peroxide cured EPDM rubber construction to ensure m...
$116.71 / EA
|
5514A-4/0-AL
The 3M™ Cold Shrink QS-III Shielded Cable Splices 5513A, 5514A, 5515A and 5516A Series are 15 kV class inline splices for joining tape shield, wire shield, UniShield® or longitudinally corrugated (LC) shielded power cables. It is a cold shrink design...
$769.59 / EA
|
|
| Attributed Data | |||
| Cable Type | Concentric Neutral (CN); Jacketed Concentric Neutral (JCN) Concentric Neutral (CN); Jacketed Concentric Neutral (JCN) | Longitudinally Corrugated (LC); Tape Shield; UniShield(R); Wire Shield Longitudinally Corrugated (LC); Tape Shield; UniShield(R); Wire Shield | |
| Conductor Material | Aluminum; Copper Aluminum; Copper | Copper Copper | |
| Conductor Size | 1/0 AWG 1/0 AWG | 4/0 AWG 4/0 AWG | |
| Connector | 10005 10005 | 20008 20008 | CI-1/0 CI-1/0 |
| Insulation OD Range | 0.775 - 0.90 Inch 0.775 - 0.90 Inch | ||
| Number of Conductors | 1 1 | ||
| Product Technology | Cold Shrink Cold Shrink | Molded Rubber Molded Rubber | |
| Stranded Conductor Sizes | 1/0 AWG (220 mil) 1/0 AWG (220 mil) | ||
| Type | Inline Inline | ||
| Voltage Rating | 15,000 V 15,000 V | 35,000 V 35,000 V | |
| Add a product to the cart | Show more details | Show more details | Show more details |
