$4,561.53 / EA
In stock (0)
Lead time: over 7 days
may be longer on small orders

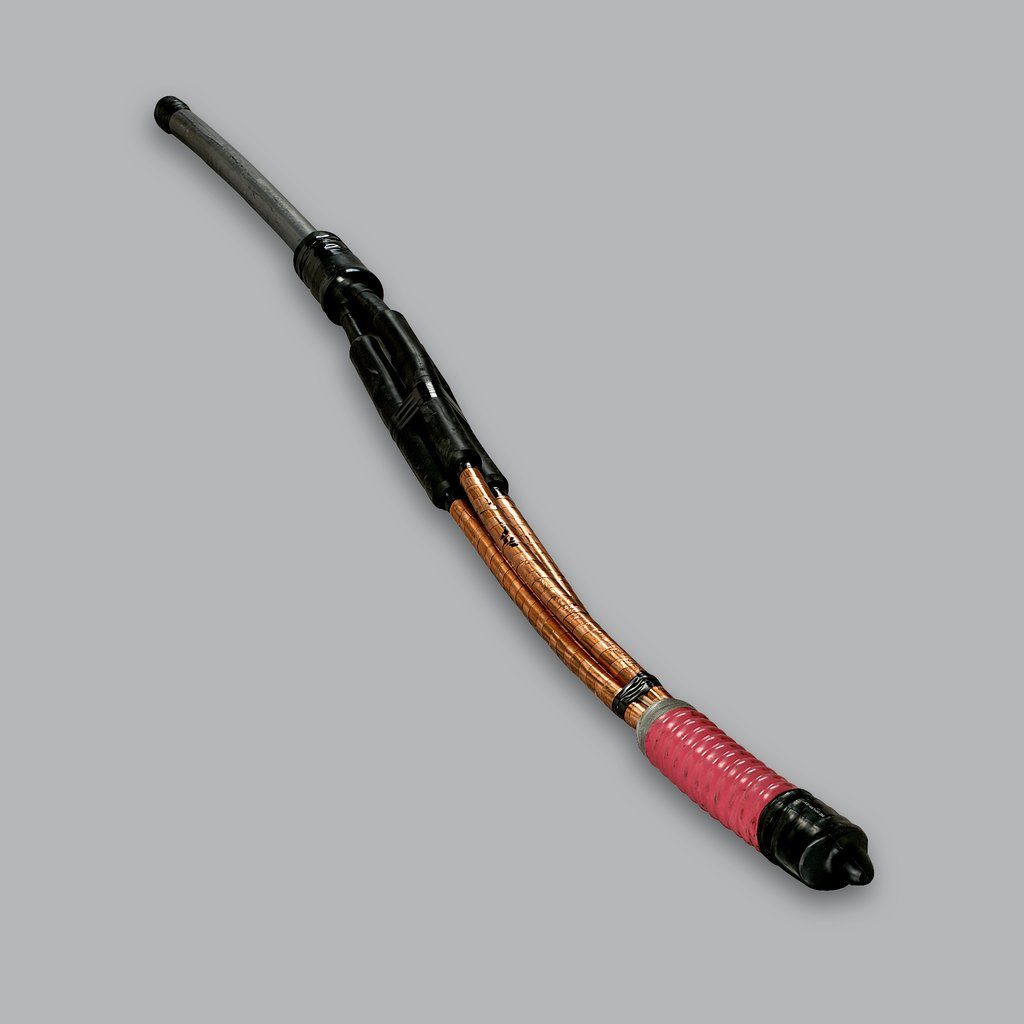

3M™ Cold Shrink Splice Kit QS-2000-3T and QS-2000-3T-WS Trifurcating Transition Splices are rated 15 kV. They are specially designed splice kits for connecting one 3/C Paper Insulated Lead Covered (PILC) cable to three 1/C Poly/EPR insulated cables. Splices meet the requirements of IEEE 404.
3M™ Cold Shrink Splice Kit QS-2000-3T and QS-2000-3T-WS Trifurcating Transition Splices are rated 15 kV. They are specially designed splice kits for connecting one 3/C Paper Insulated Lead Covered (PILC) cable to three 1/C Poly/EPR insulated cables. Splices meet the requirements of IEEE 404.
The Cold Shrink QS 2013 3T 3C splice kit is rated 15 kV. It is specially designed for connecting thr...150
The Cold Shrink QS 2013 3T 3C splice kit is rated 15 kV. It is specially designed for connecting three conductor shielded or belted Paper Insulated Lead Covered(PILC) cable to three conductor shielded Poly/EPR insulated cables. Each kit makes one three conduct to three conductor splice.3M™ Scotchlok™ Connector 2000T Series are recommended for use with these kits and must be ordered separately. Each kit makes one 3/C to three 1/C splice.*QS-2000-3T-WS uses wrap around heat shrink rejacketing.Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
- Specially designed splice to connect a 3/C paper insulated lead covered (PILC) cable to three 1/C Poly/EPR insulated cables
- Poly/EPR cables include CN, JCN, LC, tape shield, wire shield, poly/EP lead or UniShield® cables
- Mastic components seal at Poly/EPR cable jacket ends
- Silicone rubber-splice body controls the electrical field of the high voltage over the connector
- Specially designed splice to connect a 3/C paper insulated lead covered (PILC) cable to three 1/C Poly/EPR insulated cables
- Poly/EPR cables include CN, JCN, LC, tape shield, wire shield, poly/EP lead or UniShield® cables
- Mastic components seal at Poly/EPR cable jacket ends
- Silicone rubber-splice body controls the electrical field of the high voltage over the connector
- UPC
- 054007432470
- UNSPSC
- 26121649
- Country of Origin
- ITA
- Type:
- Inline PILC Transition
- Voltage Rating:
- 15,000 V
- Cable Type:
- PILC
- Conductor Size:
- "400 kcmil, 500 kcmil, 750 kcmil, 800 kcmil"
- Type:
- Inline PILC Transition
- Voltage Rating:
- 15,000 V
5451R-CIR-1/0A
$324.39 /ea
3M™ 5450R Series Molded Rubber QS II Cable Repair Splice Kit is a 25/28 kV class inline splice designed to use on JCN and CN distribution class power cables with aluminum or copper conductors. The kit ensures a greater reliability when each splice is production tested on CN cable.
| Attributed Data | Included |
|---|---|
| Cable Type | Concentric Neutral (CN); Jacketed Concentric Neutral (JCN) Yes |
| Type | Inline Repair Yes |
5458A-1000-AL
$837.33 /ea
3M™ Cold Shrink QS-III Inline CN/JCN Cable Splices 5456A-WG, 5457A-WG and 5458A-WG are inline splices for joining 25/28 kV jacketed concentric neutral (JCN) or concentric neutral (CN) power cables. It is a cold shrink design.
| Attributed Data | Included |
|---|---|
| Cable Type | Concentric Neutral (CN); Jacketed Concentric Neutral (JCN) Yes |
| Conductor Material | Aluminum; Copper Yes |
| Conductor Size | 1000 kcmil Yes |
| Connector | 20024 Yes |
| Insulation OD Range | 1.24 - 2.07 Inch Yes |
| Product Technology | Cold Shrink Yes |
| Type | Inline Yes |
5412-CI-2/0
$114.60 /ea
3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is a 1 piece inline splice designed to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables. The cold shrink jacket has peroxide cured EPDM rubber construction to ensure moisture resistance and durability.
| Attributed Data | Included |
|---|---|
| Cable Type | Concentric Neutral (CN); Jacketed Concentric Neutral (JCN) Yes |
| Connector | CI-2/0 Yes |
| Insulation OD Range | 0.840 - 1.050 Inch Yes |
| Product Technology | Molded Rubber Yes |
| Stranded Conductor Sizes | 2/0 AWG (220 mil) Yes |
| Type | Inline Yes |
| Product Image |
|
|
|
|---|---|---|---|
|
5451R-CIR-1/0A
3M™ 5450R Series Molded Rubber QS II Cable Repair Splice Kit is a 25/28 kV class inline splice designed to use on JCN and CN distribution class power cables with aluminum or copper conductors. The kit ensures a greater reliability when each splice is...
$324.39 / EA
|
5458A-1000-AL
3M™ Cold Shrink QS-III Inline CN/JCN Cable Splices 5456A-WG, 5457A-WG and 5458A-WG are inline splices for joining 25/28 kV jacketed concentric neutral (JCN) or concentric neutral (CN) power cables. It is a cold shrink design.
$837.33 / EA
|
5412-CI-2/0
3M™ 5411/5412 Series Molded Rubber QS II Splice Kit is a 1 piece inline splice designed to use on 15kV jacketed concentric neutral (JCN) or concentric neutral (CN) cables. The cold shrink jacket has peroxide cured EPDM rubber construction to ensure m...
$114.60 / EA
|
|
| Attributed Data | |||
| Cable Type | Concentric Neutral (CN); Jacketed Concentric Neutral (JCN) Concentric Neutral (CN); Jacketed Concentric Neutral (JCN) | ||
| Conductor Material | Aluminum; Copper Aluminum; Copper | ||
| Conductor Size | 1000 kcmil 1000 kcmil | ||
| Connector | 20024 20024 | CI-2/0 CI-2/0 | |
| Insulation OD Range | 0.840 - 1.050 Inch 0.840 - 1.050 Inch | 1.24 - 2.07 Inch 1.24 - 2.07 Inch | |
| Number of Conductors | 1 1 | ||
| Product Technology | Cold Shrink Cold Shrink | Molded Rubber Molded Rubber | |
| Stranded Conductor Sizes | 2/0 AWG (220 mil) 2/0 AWG (220 mil) | ||
| Type | Inline Inline | Inline Repair Inline Repair | |
| Voltage Rating | 15,000 V 15,000 V | 25,000/28,000 V 25,000/28,000 V | |
