QS2013T
SKU: QS2013T
MPN: QS2013T
Key specs
View all- Type
- Inline PILC Transition
- Voltage Rating
- 15,000 V
Description
Product overview

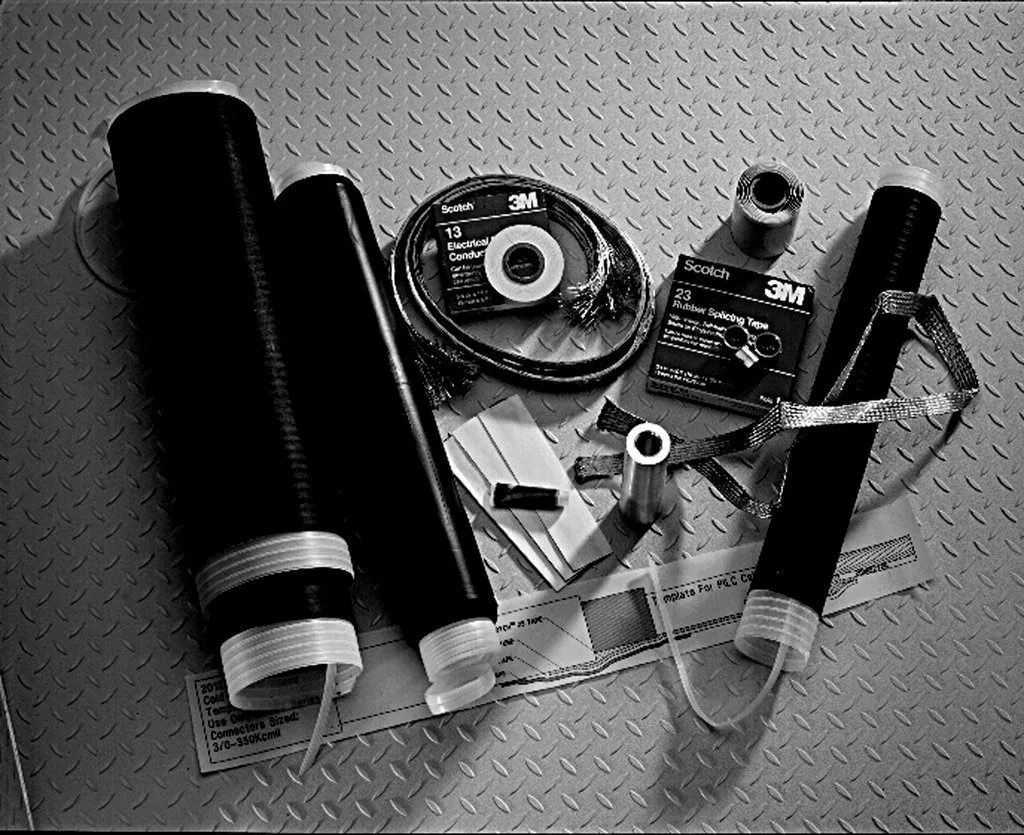

The 3M™ Cold Shrink Splice Kit QS-2000T Series allows you to splice either single-conductor PILC cable to single-conductor PILC cable, or singleconductor PILC cable to single-conductor Poly/EPR cable. Because of the design of the splice, size transitions can also be accommodated rather easily. The 3M™ Cold Shrink Splice Kit QS-2000T Series meets the requirements of IEEE 404.
The 3M™ Cold Shrink Splice Kit QS-2000T Series allows you to splice either single-conductor PILC cable to single-conductor PILC cable, or singleconductor PILC cable to single-conductor Poly/EPR cable. Because of the design of the splice, size transitions can also be accommodated rather easily. The 3M™ Cold Shrink Splice Kit QS-2000T Series meets the requirements of IEEE 404.
Manufacturer highlights
This kit allows you to splice either single conductor PILC cable to single conductor PILC cable, or single conductor PILC cable to single conductor Po...
This kit allows you to splice either single conductor PILC cable to single conductor PILC cable, or single conductor PILC cable to single conductor Poly/EPR cable. Because of the design of the splice, size transitions can also be accommodated rather easily. Each kit makes one single conductor splice.Use 3M™ Scotchlok™ Connectors 2000T Series with these splice kits. Each kit contains sufficient quantities of material to make one splice.Note: Cable sizes shown below are for standard insulation thickness. Final determining factor is cable insulation O.D.
- Oil stop tubes provide rejacketing and moisture-seal protection to the splice
- Resists water and eliminate the need of sweat lead
- Designed for PILC transition to the poly/EPR cable
- Rated for 15 kV applications
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M QS2013T QS2013T 15KV 1/C SPLICIN
- Label description
- 3M(TM) 15kV 1/C Splicing Kit QS2013T, 400-1000 kcmil PILC, 500-1000 kcmil Poly/EPR
- Invoice description
- QS2013T 15KV 1/C SPLICING KIT
Specifications
- UPC
- 054007505556
- UNSPSC
- 26121649
- Country of Origin
- ITA
- Type
- Inline PILC Transition
- Voltage Rating
- 15,000 V
- Cable Type
- PILC
- Standard
- IEEE-404-1993
- Type
- Inline PILC Transition
- Voltage Rating
- 15,000 V
