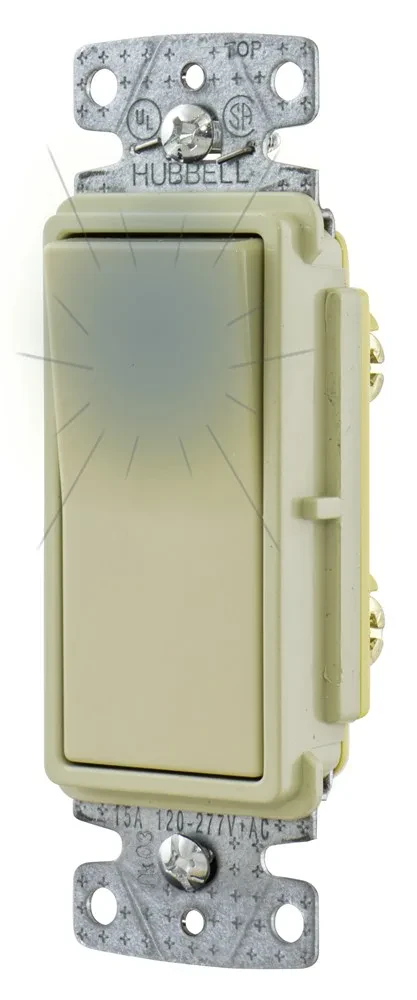

Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Decorator Switch, Residential Grade, Rocker Switch, GeneralPurpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and SideWired, Ivory
Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Decorator Switch, Residential Grade, Rocker Switch, GeneralPurpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and SideWired, Ivory

Image colors may not be accurate.
Please see details, or call (800) 462-7733 for more information.

RSD115ILI

Manufacturer
Bryant Electric

$15.12 / EA

manufacturer discounts
learn about discounts

  • $13.61 for $300.00+
  • $12.96 for $500.00+
  • $12.42 for $1,000.00+

In stock (0)
Lead time: over 7 days
may be longer on small orders

Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Decorator Switch, Residential Grade, Rocker Switch, GeneralPurpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and SideWired, Ivory

Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Decorator Switch, Residential Grade, Rocker Switch, GeneralPurpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and SideWired, Ivory

150

UPC
883778101175
UNSPSC
39122226
Country of Origin
CN
Action:
Positive Snap
Amperage Rating:
15 A
Color:
Ivory
Material:
Composite
Number Of Poles:
1
Size:
Standard Sized
Type:
General Purpose Switches
Voltage Rating:
120 V
Wattage:
1,800 W
Action:
Positive Snap
Actuator:
Rocker
Amperage Rating:
15 A
Brand ID:
WIRING DEVICE-KELLEMS
Carton Quantity:
10
Catalog Number:
RSD115ILI
Color:
Ivory
Connection:
Push Wire and Terminal Screws
Contact Configuration:
2 Position
Contact Rating:
Per UL 20
Description - Long:
TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and Side
Description - Short:
TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and Side
EU RoHS Indicator:
Yes
Enclosure:
None
Environmental Conditions:
Indoor Dry unless protected by additional means
FEATURES - Bullets:
Smooth, quiet rocker;Self-grounding feature is standard;Ultrasonically welded cover and base
Indicator:
None
Material:
Composite
Mounting:
Screw Mount
Number Of Poles:
1
Operating Cycles:
30k
Operating Temperature:
Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
Performance:
Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
Product Name:
RSD115ILI
Size:
Standard Sized
Standard:
CSA Certified;Listed to UL Standard 20
Sub Brand:
AC Decorator Switches
Type:
General Purpose Switches
UPC:
883778101175
Voltage Rating:
120 V
Wattage:
1,800 W
