$15.12 / EA
manufacturer discounts
learn about discounts
- $13.61 for $300.00+
- $12.96 for $500.00+
- $12.42 for $1,000.00+
Local stock: 0
Lead time:
over 7 working days

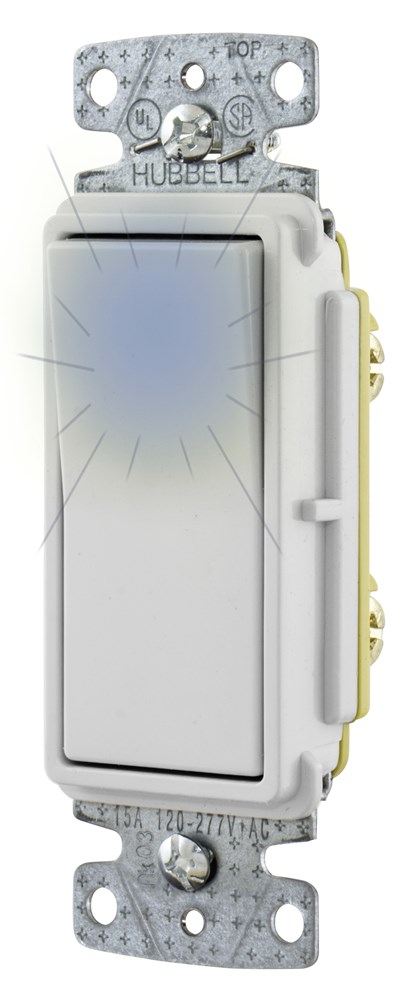

Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Decorator Switch, Residential Grade, Rocker Switch, GeneralPurpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and SideWired, White
Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Decorator Switch, Residential Grade, Rocker Switch, GeneralPurpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and SideWired, White
150
- UPC
- 883778101182
- UNSPSC
- 39122226
- Country of Origin
- CN
- Action:
- Positive Snap
- Amperage Rating:
- 15 A
- Color:
- White
- Material:
- Composite
- Number Of Poles:
- 1
- Size:
- Standard Sized
- Type:
- General Purpose Switches
- Voltage Rating:
- 120 V
- Wattage:
- 1,800 W
- Action:
- Positive Snap
- Actuator:
- Rocker
- Amperage Rating:
- 15 A
- Brand ID:
- WIRING DEVICE-KELLEMS
- Carton Quantity:
- 10
- Catalog Number:
- RSD115ILW
- Color:
- White
- Connection:
- Push Wire and Terminal Screws
- Contact Configuration:
- 2 Position
- Contact Rating:
- Per UL 20
- Description - Long:
- TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and Side
- Description - Short:
- TradeSelect, Switches and Lighting Controls, Decorator Switch, Residential Grade, Rocker Switch, General Purpose AC, Illuminated Single Pole, 15A 120/277V AC, Push Back and Side
- EU RoHS Indicator:
- Yes
- Enclosure:
- None
- Environmental Conditions:
- Indoor Dry unless protected by additional means
- FEATURES - Bullets:
- Smooth, quiet rocker;Self-grounding feature is standard;Ultrasonically welded cover and base
- Indicator:
- None
- Material:
- Composite
- Mounting:
- Screw Mount
- Number Of Poles:
- 1
- Operating Cycles:
- 30k
- Operating Temperature:
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Performance:
- Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
- Product Name:
- RSD115ILW
- Size:
- Standard Sized
- Standard:
- CSA Certified;Listed to UL Standard 20
- Sub Brand:
- AC Decorator Switches
- Type:
- General Purpose Switches
- UPC:
- 883778101182
- Voltage Rating:
- 120 V
- Wattage:
- 1,800 W
Recently Viewed
-
RSD115ILW
BRYANT ELECTRIC
Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Decorator Switch, Residential Grade, Rocker Switch, GeneralPurpose AC, Illu...
See more details -
60-3175
SATCO PRODUCTS
1 Light 12 Flush Mount Twist & Lock w/ Frosted White Glass - Mahogany Bronze
See more details -
T8-61
HOUSE OF TROY
Unfortunately, we do not have a description available for T8-61. Please call (800) 462-7733 fo...
See more details -

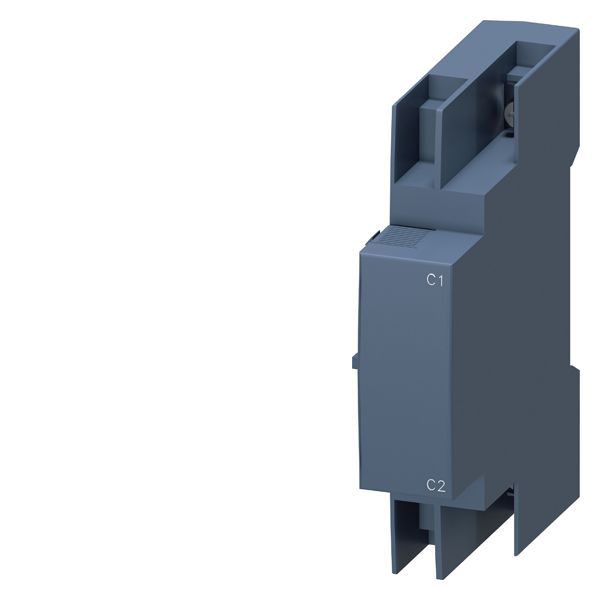

3RV29024DF0
