RSD115PLI
SKU: RSD115PLI
MPN: RSD115PLI
Key specs
View all- Action
- Positive Snap
- Amperage Rating
- 15 A
- Color
- Ivory
- Material
- Composite
- Number Of Poles
- 1
- Size
- Standard Sized
Description
Product overview

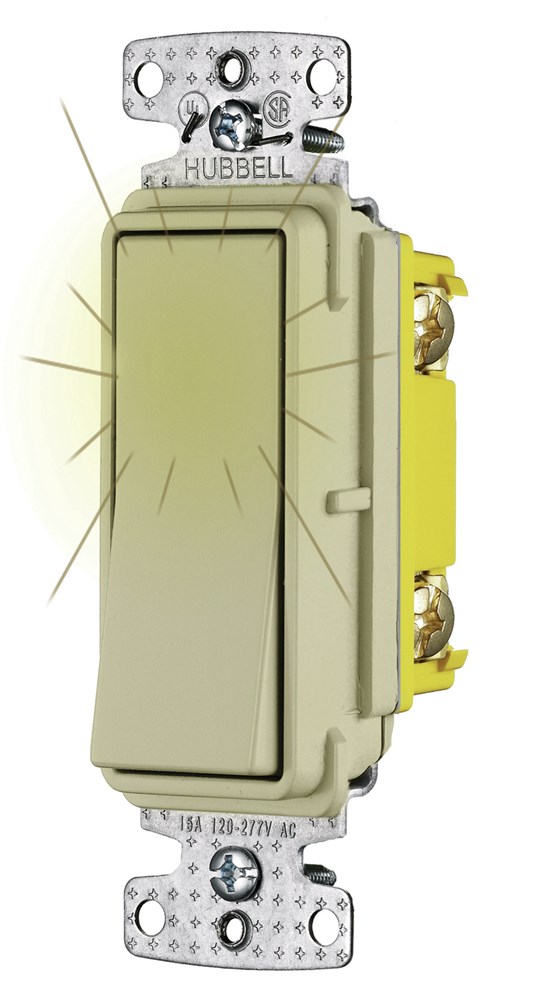

Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Rocker, Pilot, Single Pole, 15A 120V AC, Ivory
Hubbell Wiring Device Kellems, TradeSelect, Switches and LightingControls, Rocker, Pilot, Single Pole, 15A 120V AC, Ivory
Manufacturer highlights
Additional manufacturer notes
- Short name
- BRYANT
- Feed description
- BRYANT RSD115PLI RESI ROCKER SW, SP
- Invoice description
- RESI ROCKER SW, SP, 15A 120V, PL IV
Specifications
- UPC
- 883778101205
- UNSPSC
- 39122226
- Country of Origin
- CN
- Action
- Positive Snap
- Amperage Rating
- 15 A
- Color
- Ivory
- Material
- Composite
- Number Of Poles
- 1
- Size
- Standard Sized
- Type
- General Purpose Switches
- Voltage Rating
- 120 V
- Wattage
- 1,800 W
- Action
- Positive Snap
- Actuator
- Rocker
- Amperage Rating
- 15 A
- Brand ID
- WIRING DEVICE-KELLEMS
- Carton Quantity
- 10
- Catalog Number
- RSD115PLI
- Color
- Ivory
- Connection
- Push Wire and Terminal Screws
- Contact Configuration
- 2 Position
- Contact Rating
- Per UL 20
- Description - Long
- TradeSelect, Switches and Lighting Controls, Rocker, Pilot, Single Pole, 15A 120V AC, Ivory
- Description - Short
- TradeSelect, Switches and Lighting Controls, Rocker, Pilot, Single Pole, 15A 120V AC, Ivory
- EU RoHS Indicator
- Yes
- Enclosure
- None
- Environmental Conditions
- Indoor Dry unless protected by additional means
- FEATURES - Bullets
- Smooth, quiet rocker;Self-grounding feature is standard;Ultrasonically welded cover and base
- Indicator
- None
- Material
- Composite
- Mounting
- Screw Mount
- Number Of Poles
- 1
- Operating Cycles
- 30k
- Operating Temperature
- Max Continuous- 60 Degrees C, Minimum- -20 Without Impact
- Performance
- Electrical - Dielectric voltage - Withstands 1,500V AC minimum for 1 minute;Electrical - Endurance - 30,000 cycles minimum;Electrical - Max. working voltage - 120V;Electrical - Overload - 1.5 times rating;Environmental - Flammability - UL V0;Environmental - Operating temperatures - Maximum continuous 60°C;minimum -20°C (without impact);Mechanical - Terminal accommodation - Back and side wire: #14 AWG min. - #12 AWG max. solid and stranded copper wire only;push wire: #14 AWG solid copper wire only
- Product Name
- RSD115PLI
- Size
- Standard Sized
- Standard
- CSA Certified;Listed to UL Standard 20
- Sub Brand
- AC Decorator Switches
- Type
- General Purpose Switches
- UPC
- 883778101205
- Voltage Rating
- 120 V
- Wattage
- 1,800 W
