SJ-1FB
SKU: SJ-1FB
MPN: SJ-1FB
Key specs
View all- Type
- Cold Shrink
- Voltage Rating
- 15,000 V
Description
Product overview

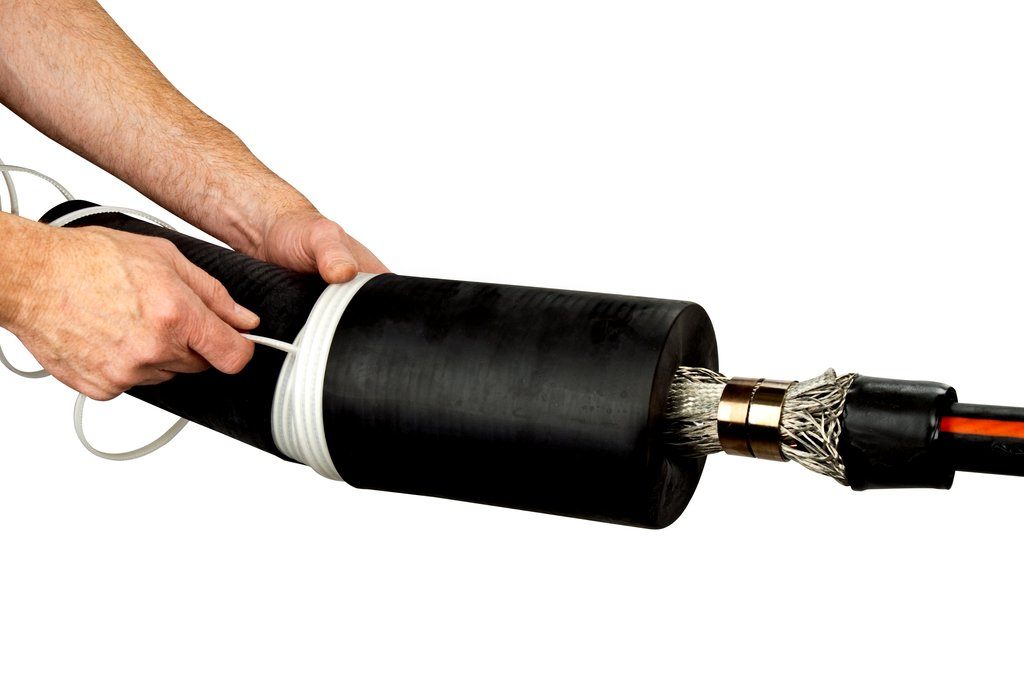

3M™ SJ Cold Shrink Foldback Splice Jacket Kit is designed to offer a tight seal jacket over cable splices installed on jacketed concentric neutral and other types of jacketed power cable. The kit includes a folded back, tubular rubber sleeve and Scotch® Rubber Mastic Tape. The versatile 1 piece design makes installation easy.
3M™ SJ Cold Shrink Foldback Splice Jacket Kit is designed to offer a tight seal jacket over cable splices installed on jacketed concentric neutral and other types of jacketed power cable. The kit includes a folded back, tubular rubber sleeve and Scotch® Rubber Mastic Tape. The versatile 1 piece design makes installation easy.
Manufacturer highlights
3M™ SJ Cold Shrink Foldback Splice Jacket Kit contains a cold shrink foldback jacket tube, rolls of rubber mastic tape and mastic strips. The mastic t...
3M™ SJ Cold Shrink Foldback Splice Jacket Kit contains a cold shrink foldback jacket tube, rolls of rubber mastic tape and mastic strips. The mastic tape offers an assured sealing interface between the cable jacket and cold shrink foldback jacket tube. The mastic strip seals around the optional, external ground conductor. The cold shrink jacket tube is made from chloride and sulfur free EPDM rubber. The seamless rubber tube from cable jacket to cable jacket minimizes sealing steps and moisture ingress paths.
- 1-piece design for quick installation
- Resists fungus, acids and alkalis
- Suitable for use on direct burial, aerial and submersible applications
- Cold shrink jacket made of EPDM rubber provides moisture resistance and durability
Additional manufacturer notes
- Short name
- 3M
- Feed description
- 3M SJ-1FB SJ-1FB FOLDBACK JACKET KI
- Label description
- 3M(TM) Cold Shrink Foldback Splice Jacket Kit SJ-1FB
- Invoice description
- SJ-1FB FOLDBACK JACKET KIT
Specifications
- UPC
- 051128553022
- UNSPSC
- 26121649
- Country of Origin
- USA
- Type
- Cold Shrink
- Voltage Rating
- 15,000 V
- Cable Type
- Jacketed Concentric Neutral (JCN)
- Conductor Size
- 1 AWG; 1/0 AWG; 2 AWG; 2/0 AWG; 3/0 AWG; 4 AWG; 4/0 AWG
- Type
- Cold Shrink
- Voltage Rating
- 15,000 V
