$19.04 / EA
manufacturer discounts
learn about discounts
- $17.14 for $300.00+
- $16.32 for $500.00+
- $15.64 for $1,000.00+
In stock (0)
Lead time: over 7 days
may be longer on small orders

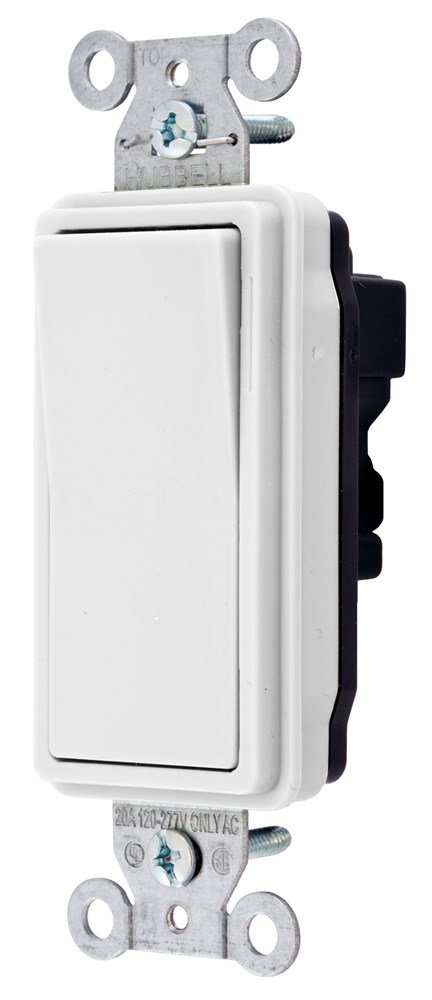

Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Single Pole, 15A 120/277V AC, White, North American
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Single Pole, 15A 120/277V AC, White, North American
150
- UPC
- 783585189536
- UNSPSC
- 39122226
- Country of Origin
- US
- Action:
- Positive Snap
- Amperage Rating:
- 15 A
- Color:
- White
- Material:
- Thermoplastic
- Number Of Poles:
- 1
- Size:
- 4.28 in x 1.44 in x 1.54 in
- Type:
- Rocker/Decorator
- Voltage Rating:
- 120 to 277 VAC
- Wattage:
- 4,155 W
- Action:
- Positive Snap
- Actuator:
- Rocker
- Amperage Rating:
- 15 A
- Catalog Number:
- SNAP2101WNA
- Color:
- White
- Connection:
- Connectorized
- Contact Configuration:
- 2 Position
- Contact Rating:
- Per UL 20
- Current / Amperage Rating:
- 15 A
- Current Rating:
- 15 A
- Description - Long:
- Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Single Pole, 15A 120/277V AC, White, North American
- Description - Short:
- Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Single Pole, 15A 120/277V AC, White, North American
- EU RoHS Indicator:
- No
- Enclosure:
- None
- Environmental Conditions:
- Indoor Dry unless protected by additional means
- FEATURES - Bullets:
- Steel, zinc plated bridge is corrosion resistant;Thread cleaning captive mounting screw;Self-grounding staple assures continuity to wall box
- Indicator:
- None
- Item Type:
- Single Pole Style Line Decorator Switch
- Material:
- Thermoplastic
- Mounting:
- Screw Mount
- Number Of Poles:
- 1
- Operating Cycles:
- 50k
- Operating Temperature:
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance:
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
- Product Name:
- SNAP2101WNA
- Series:
- General Purpose
- Size:
- 4.28 in x 1.44 in x 1.54 in
- Standard:
- UL Listed
- Sub Brand:
- AC Decorator Switches
- Temperature Rise - Max.:
- 30°C maximum at rated current
- Type:
- Rocker/Decorator
- Voltage Rating:
- 120 to 277 VAC
- Voltage Rating Description:
- 120-277 VAC
- Wattage:
- 4,155 W
