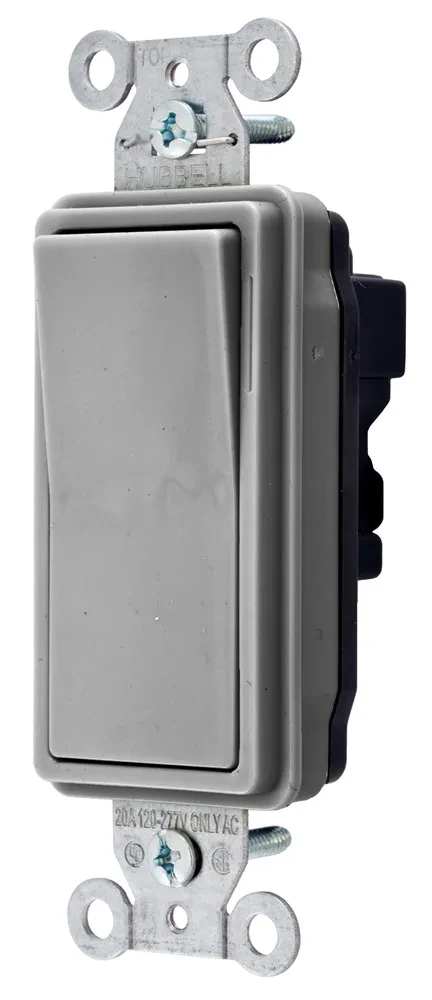

SNAP2103GYNA
SKU: SNAP2103GYNA
MPN: SNAP2103GYNA
Key specs
View all- Action
- SPDT
- Amperage Rating
- 15 A
- Color
- Gray
- Material
- Thermoplastic
- Number Of Poles
- 1
- Size
- 4.28 in x 1.44 in x 1.54 in
Description
Product overview
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Three Way, 15A 120/277V AC, Gray, North American
Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Three Way, 15A 120/277V AC, Gray, North American
Manufacturer highlights
Additional manufacturer notes
- Short name
- HWDK
- Feed description
- HWDK SNAP2103GYNA SWITCH,SNAP,DEC,3
- Invoice description
- SWITCH,SNAP,DEC,3W,15A120/277V,GY,NA
Specifications
- UPC
- 783585189673
- UNSPSC
- 39122226
- Country of Origin
- US
- Action
- SPDT
- Amperage Rating
- 15 A
- Color
- Gray
- Material
- Thermoplastic
- Number Of Poles
- 1
- Size
- 4.28 in x 1.44 in x 1.54 in
- Type
- Rocker/Decorator
- Voltage Rating
- 120 to 277 VAC
- Wattage
- 4,155 W
- Action
- SPDT
- Actuator
- Rocker
- Amperage Rating
- 15 A
- Catalog Number
- SNAP2103GYNA
- Color
- Gray
- Connection
- Connectorized
- Contact Configuration
- 2 Position
- Contact Rating
- Per UL 20
- Current / Amperage Rating
- 15 A
- Current Rating
- 15 A
- Description - Long
- Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Three Way, 15A 120/277V AC, Gray, North American
- Description - Short
- Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Three Way, 15A 120/277V AC, Gray, North American
- EU RoHS Indicator
- No
- Enclosure
- None
- Environmental Conditions
- Indoor Dry unless protected by additional means
- FEATURES - Bullets
- Steel, zinc plated bridge is corrosion resistant;Thread cleaning captive mounting screw;Self-grounding staple assures continuity to wall box
- Indicator
- None
- Item Type
- Three Way Style Line Decorator Switch
- Material
- Thermoplastic
- Mounting
- Screw Mount
- Number Of Poles
- 1
- Operating Cycles
- 50k
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Performance
- Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - Uses SNAPConnect Connector
- Product Name
- SNAP2103GYNA
- Series
- General Purpose
- Size
- 4.28 in x 1.44 in x 1.54 in
- Standard
- UL Listed
- Sub Brand
- AC Decorator Switches
- Temperature Rise - Max.
- 30°C maximum at rated current
- Type
- Rocker/Decorator
- Voltage Rating
- 120 to 277 VAC
- Voltage Rating Description
- 120-277 VAC
- Wattage
- 4,155 W
